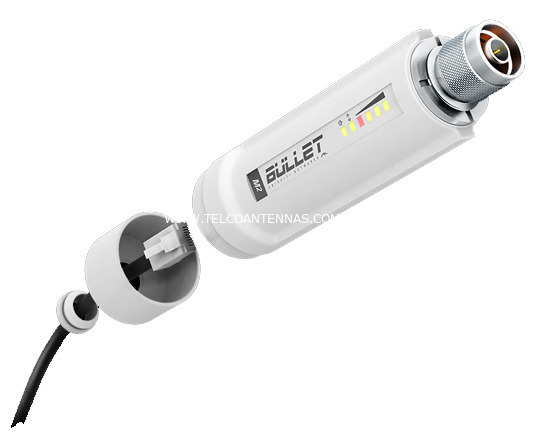

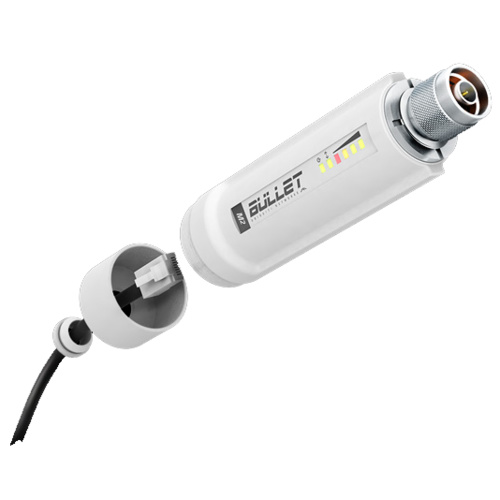

Ubiquiti Bullet Titanium M2 Point-to-Point Wireless Bridge or WiFi Access Point

Key Features

• Turn any WiFi antenna into a PtP or PtMP link or high powered access point

• Connect two remote locations on the one network

  • Plug and go setup

• Share Internet connection between buildings, remote sites, etc.

• Aircraft-grade aluminium construction

• Up to 600mW output power, +100Mbps capable

• POE Injector & 240V AC Adaptor included

Usage

• Designed to streamline the complications of routing hardware, the Ubiquiti Bullet sits between the Ethernet cable from your network and a WiFi antenna

• The revolutionary technology performs the physical layer changes necessary to transmit data directly from the Ethernet cable over the air via the 2.4GHz ISM band to the receiving unit.

What is the Bullet Titanium Version?

• The Bullet M2 Titanium features a tough weatherproof design

• Made from aircraft-grade aluminum, the casing is designed to withstand nature’s harshest elements

• The Bullet M Titanium is engineered to survive extreme conditions

• Featuring an upgraded aluminum casing, weatherproof N-Type connection gasket, and water-tight cable gland, the Bullet M2 Titanium is virtually bullet-proof

• The Ubiquiti Bullet Titanium eliminates the need to use RF cables and requires no special antenna or tools to install.

• No radio card/host board issue

• No RF cable quality concerns

• No mechanical stability concerns

• No enclosure mounting requirements

• With the Bullet M2 Titanium, operators can just plug and go.

Virtual ethernet cable

• This is a transparent data-link layer bridge, not a routed bridge - this means that you are creating a virtual ethernet cable between the two facilities, making network setup incredibly simple - no routing configuration, all protocols (DHCP, DNS, etc) just work

• Management of the Ubquiti device couldn't be easier with SSH and SNMP protocol support, as well as a very intuitive HTTP interface.

Power over Ethernet

• The units are powered via Power over Ethernet (PoE) - simply plug one end of the Ethernet cable into the Bullet, and the other into the PoE Injector (which is plugged into AC power)

• This allows one cable to both power the unit and also carry network traffic

• We recommend using Cat6 Outdoor UV Shielded Cable with this unit.

Read More

• Specification Sheet


• Quick Start Guide


• AirOS Complete User Guide


•

Setup Guides (Click Image)
