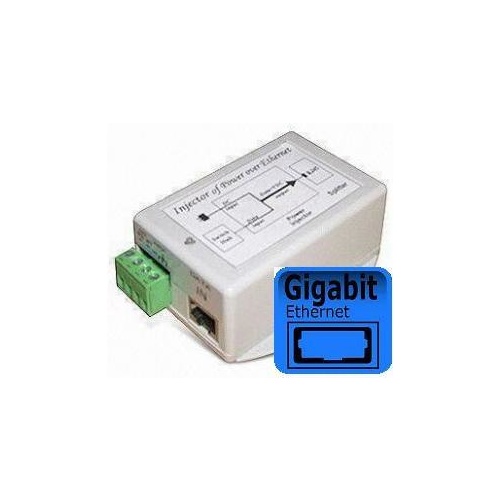

DC-DC Gigabit Passive Power over Ethernet Injector

Formerly MIT-45G-48

Key Features

• Suits solar power systems

• 9-36VDC systems

• 10/100/GigE

• 48VDC 0.5A Passive PoE output (802.3af Mode B)

• Dual block inputs for connecting 2 power sources

• Short Circuit, Over Current and Reverse/Over Voltage Protection

• High temperature operation

• Ideal for Ubiquiti 48VDC devices.

Usage

• This series of DC to DC converters are a low cost and high reliability solution for those requiring 48VDC Gigabit Power over Ethernet voltage from a 12, 18, or 24V battery system

• They have an integrated POE injector to apply 48VDC to Ethernet cable in 802.3af Mode B (Passive) PoE pin arrangement (no handshake)

• They have two isolated inputs for connecting 2 power sources, like a primary and backup power source

• A metal enclosure model is available for industrial applications

• They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack

• They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).

Specifications

Electrical Specifications

• Input voltage: 9 to 36V DC

• Input current: 2.61A max at 12V DC at F.L 1.26A max at 24V DC at F.L

• Output voltage and current: + 48V non-802.3af

• Maximum load: 0.5A

• Min load: 0.01A

• Load regular percentage: 5%

• Line regular percentage: 1%

• Ripple percentage: 1%

• Noise percentage: 1%

• Ripple and noise bandwidth: from DC to 20MHz Terminated with 47uF capacitor and 0.1uf MPE capacitor of proper polarity

• Efficiency: 75% min at 12V/24V DC, input at F.L Short-circuit protected output Short GND terminal to prevent damage to power supply Auto-recovery Input fuse protection

• Current limit: 120 to 160% at 9V to 36V DC

Mechanical/Environmental Specifications

• Construction: ABS Plastic

• Operating temperature: -25 to 50° Celsius

• Storage temperature: -40 to 85° Celsius

• Operating humidity: 5 to 90%

• Cooling: Free air

• Dimension: 85 x 78 x 36mm (L x W x H)

• Standards: EN60950-1, FCC Class B, EN55022 Class B
