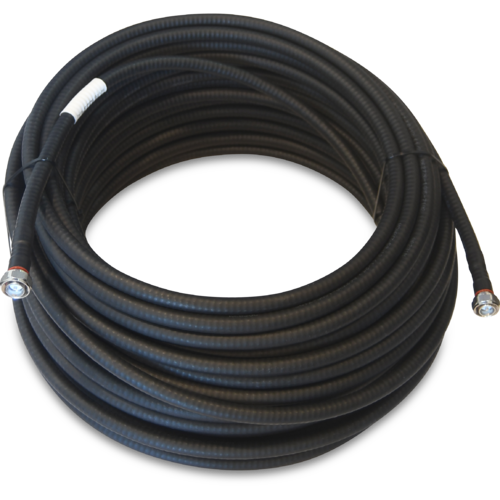

20m Telco TEL450 1/2" Corrugated Coaxial Cable Assembly



Key Features



  • Low density foam dielectric

  • 50Ω impedance

  • Corrugated copper outer conductor

  • CCA inner conductor

  • 2x 4.3-10 Male connectors.



Usage



  • Telco Antennas ½” flexible foam dielectric 50Ω coaxial cable is a very high performance feeder cable with Fire Retardant properties



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 76pF/m

  • Signal Loss: 0.067dB/m @ 850MHz, 0.11dB/m @ 2100MHz

  • Frequency Range: DC-8.8GHz

  • Maximum Recommended Length: 100m (cellular bands)

  • Velocity of Propagation: 88%

  • Peak Power: 40kW



Mechanical Specifications



  • Weight/100m: 22kg

  • Minimum Bend Radius: 50.8mm

  • Conductor Material: CCA (4.82mm)

  • Insulating Material: Physical Foam Polyethylene (12.94mm)

  • Outer Shield Material: Corrugated Copper Tube (13.97mm)

  • Outer Jacket Material: Black PE Weather & UV Resistant (15.87mm)



Read More





A heads up!



Special delivery information



over-size item symbol sign



  • This cable assembly is very large and may be transported on a cable spool

  • Please enquire for an accurate shipping quote.



(450A-4310-20)

SKU 450A-4310-20
Shipping Weight 4.1200kg
Shipping Width 0.480m
Shipping Height 0.480m
Shipping Length 0.235m
Shipping Cubic 0.054144000m3
