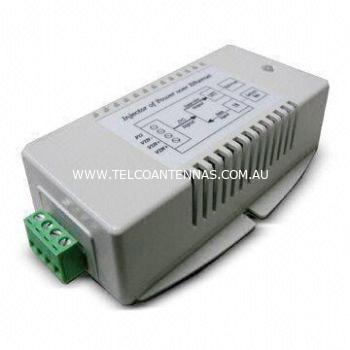

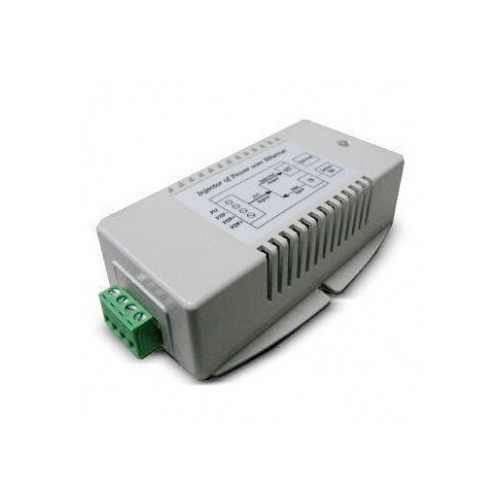

DC-DC Gigabit 802.3at PoE+ Power over Ethernet Injector



Key Features



  • Suits solar power systems

  • 10/100/GigE RJ45

  • 18-36VDC systems

  • 56VDC 625mA (35W) 802.3at Compliant

  • Dual block inputs for connecting 2 power sources

  • Short Circuit, Over Current and Reverse/Over Voltage Protection

  • High Temperature Operation.



Usage



  • MSTronic's series of DC to DC converters are a low cost and high reliability solution for those requiring 802.3at Power over Ethernet voltage from a 24V battery system

  • They have an integrated POE injector to apply 56VDC to Ethernet cable in 802.3at PoE pin arrangement

  • They have two isolated inputs for connecting 2 power sources, like a primary and backup power source

  • A metal enclosure model is available for industrial applications

  • They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.



Specifications



Electrical Specifications



  • Input voltage: 18 to 36V DC

  • Input current: 1.56A max at 24V dc at F.L

  • Output voltage and current: + 56V 802.3at

  • Maximum load: 0.625A

  • Min load: 0.01A

  • Load regular percentage: 5%

  • Line regular percentage: 1%

  • Ripple percentage: 1%

  • Noise percentage: 1%

  • Ripple and noise bandwidth: from DC to 20MHz Terminated with 47uF capacitor and 0.1uf MPE capacitor of proper polarity

  • Efficiency: 80% min at 18Vdc, input at F.L Short-circuit protected output Short GND terminal to prevent damage to power supply Auto-recovery Input fuse protection

  • Current limit: 120% ~ 160% @24Vdc Input F.L FCC Class B standard

  • Operating temperature: -20 to 50 degree Celsius

  • Storage temperature: -40 to 85 degree Celsius
