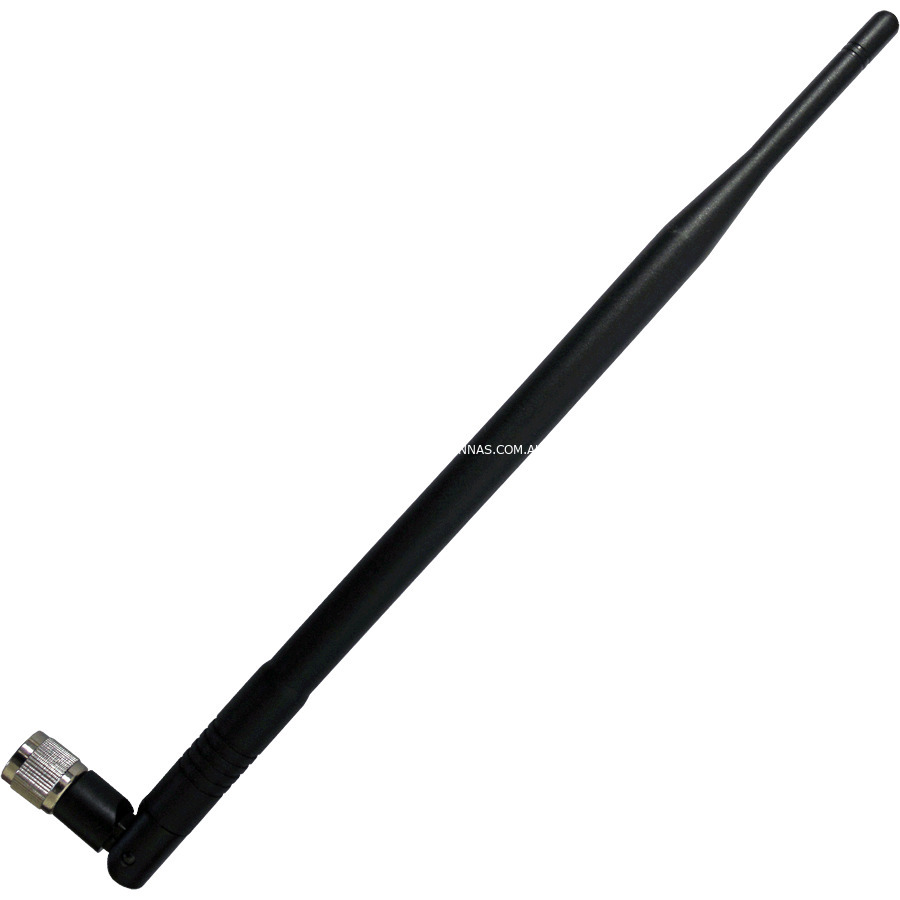

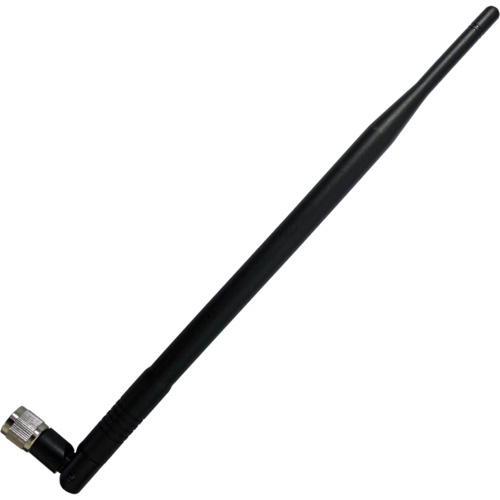

Telco IoT 3dBi Hinged Terminal Antenna - 850-2100MHz



Key Features



  • True multiband 850, 900, 1800, and 2100 MHz

  • 90 degree swivelling SMA connector

  • 2 to 3 dBi with low VSWR

  • UV stable rubberised casing.



Usage



  • Specifically designed for IoT and M2M communications

  • 90-degree swivelling TNC connector - this antenna is ideal for a wide range of telemetry applications including ATMs, information displays, vending machines, and much more

  • Lightweight, compact and cost effective design - this antenna can be deployed on the large scale with minimal capital outlay

  • The antenna has an integrated TNC male connector to suit many industrial modems such as Maxon and Cisco. Fully customisable on request (MOQ applies).



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra Next-G™ (850 MHz)
compatible
2 dBi
New Vodafone Network (850 MHz)* *Please check Vodafone Coverage Map
compatible
2 dBi
Optus Regional 3G (900 MHz)
compatible
2 dBi
Vodafone Regional 3G (900 MHz)
compatible
2 dBi
LPWAN/ISM (915 MHz)
compatible
2 dBi
Telstra/Optus/Vodafone 4G (1800 MHz)
compatible
3 dBi
All carriers - Urban/Metro (2100 MHz)
compatible
3 dBi



Electrical Specifications



  • Frequency Range: 824 to 960MHz and 1710 to 2190 MHz

  • Input Impedance: 50 Ω

  • VSWR: <2.0:1

  • Vertical Beamwidth: 35° (± 5°)

  • Radiation: Directional

  • Maximum Power: 10 Watts



Mechanical/Environmental Specifications



  • Construction: UV Stable rubber radome, ABS hinge

  • Connector: Integrated TNC Male

  • Temperature: -20°C to +65°C

  • Weight: 30 g

  • Dimensions: 295 x 60 mm (Length x Width)



Read More





(3DBI-RA)

SKU 3DBI-RA
Brand Telco Antennas
Shipping Weight 0.0300kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.000625000m3
