4.3-10 Female to 7/16 DIN Female Adaptor

4.3-10 Socket to 7/16 DIN Socket Adaptor
4.3-10 Jack to 7/16 DIN Jack Adaptor



What is an adaptor?



A coaxial adaptor can be either inter-series or intra-series.



  • An inter-series (also known as between-series) adaptor is used to convert one type of connector into a different series connector.

  • An intra-series (also known as within-series) adaptor is used to connect two devices or cables of the same series, cable joiners and bulkheads are the most common type of intra-series adaptors.

  • For large orders please contact our sales team to arrange a quote.



Specifications



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-7.5GHz

  • Working Voltage: 1000V RMS

  • Withstand Voltage: 2500V RMS

  • Insertion Loss: <0.24dB/3GHz

  • VSWR: <1.2:1/6GHz



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel

  • Pin/Socket Contact: Tin Bronze/Beryllium-Copper

  • Pin/Socket Plating: Gold/Gold

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C

  • MIL-C-39012

  • IEC 61169-54 (4.3-10 Type)

  • IEC-60169-4 (7/16 DIN)

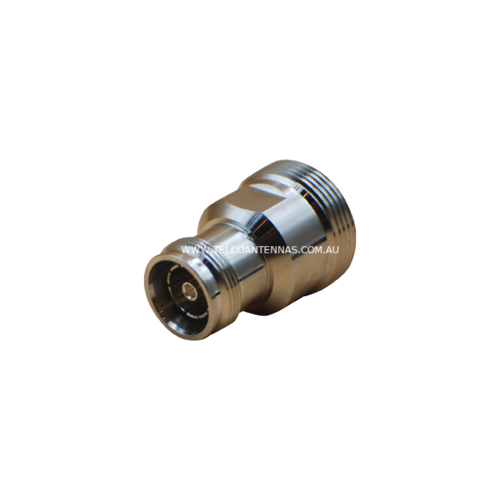

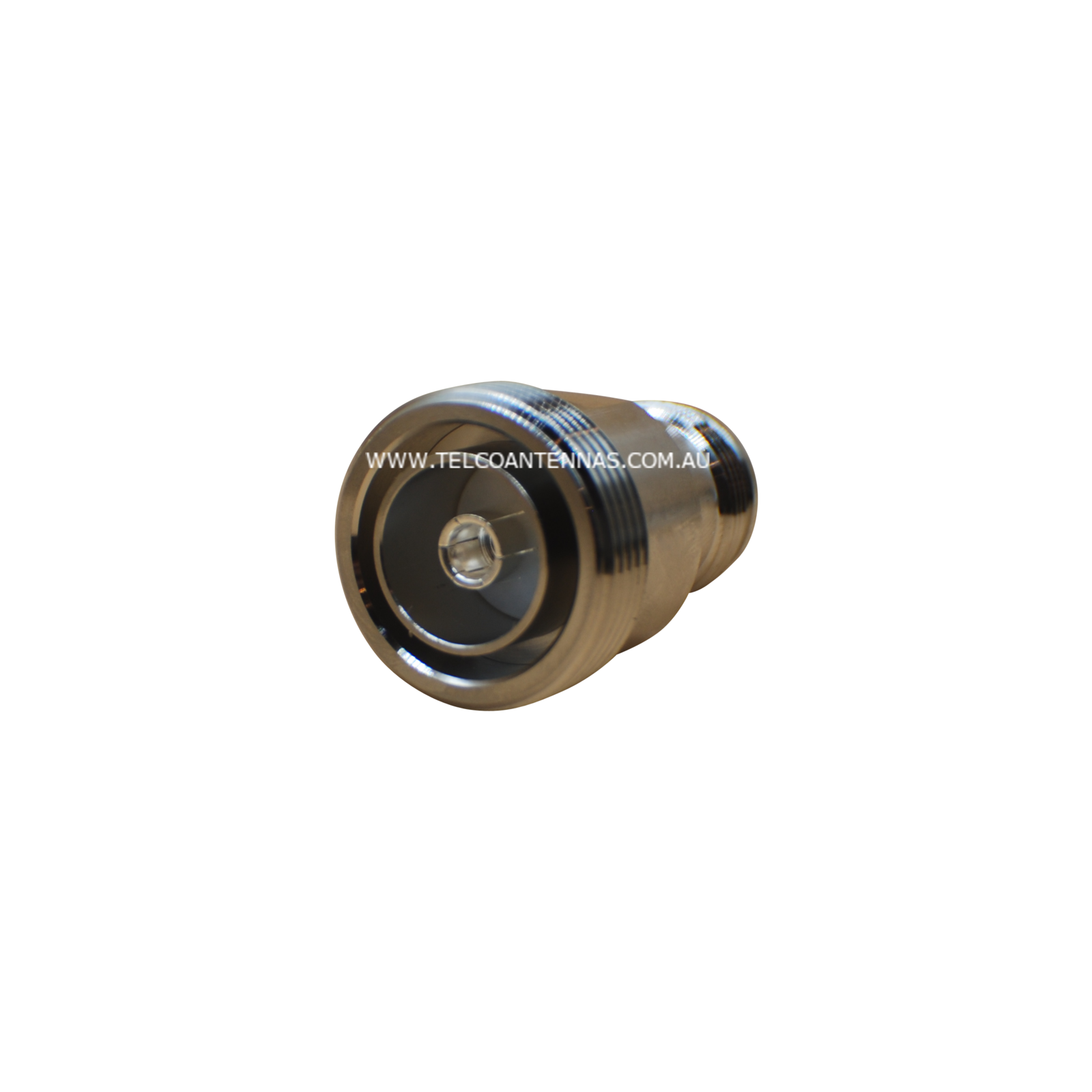

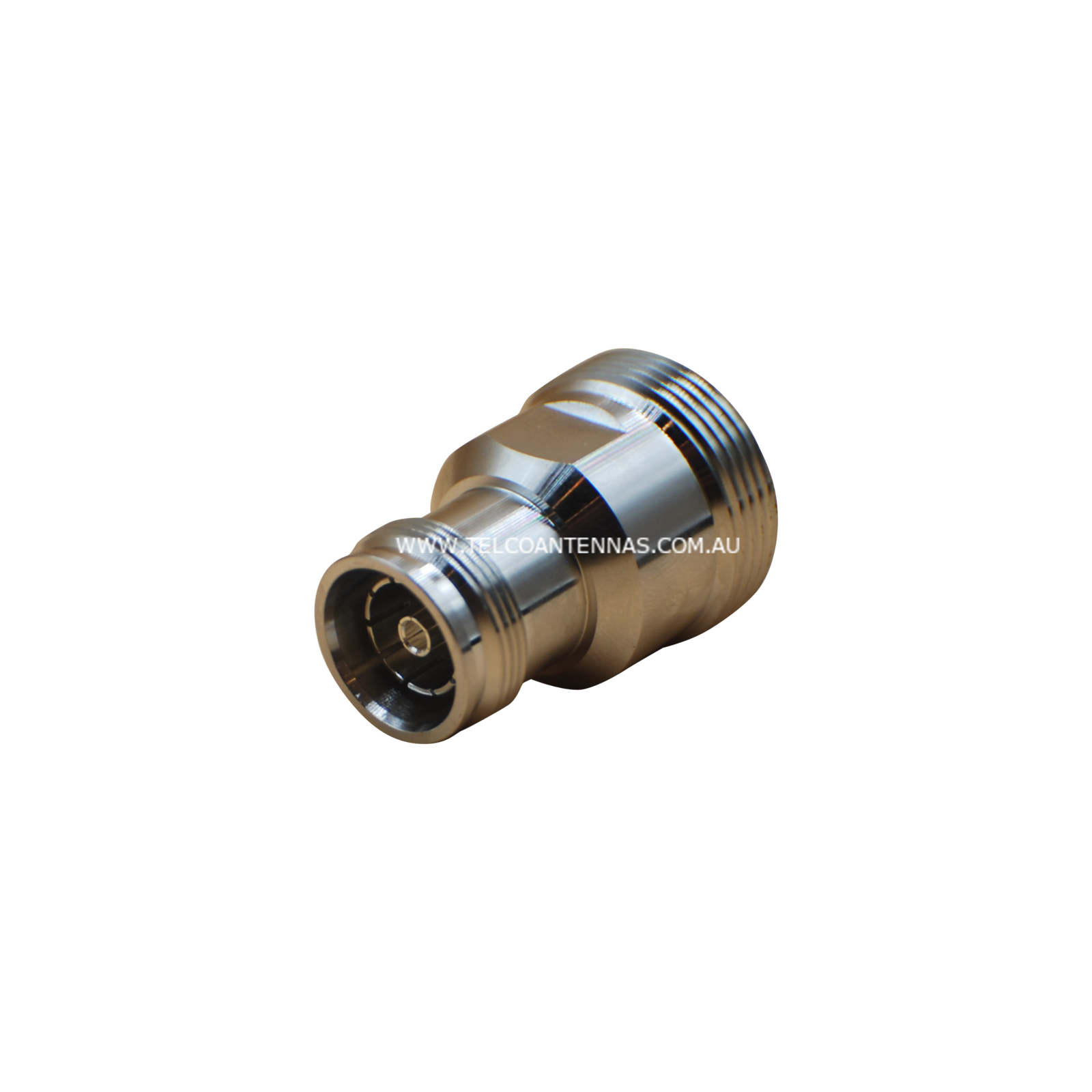

Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.


tick rohs compliant lead free



(4310F-716F-AD)

SKU 4310F-716F-AD
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
