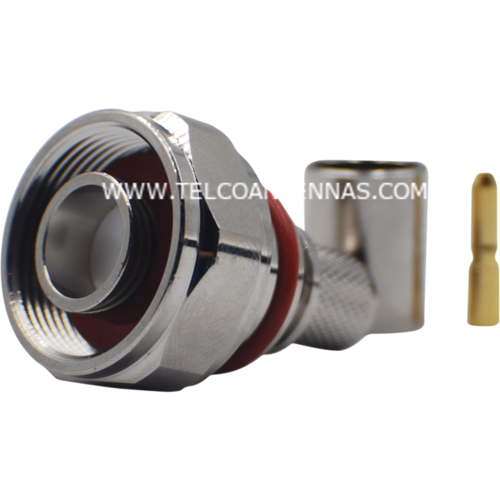

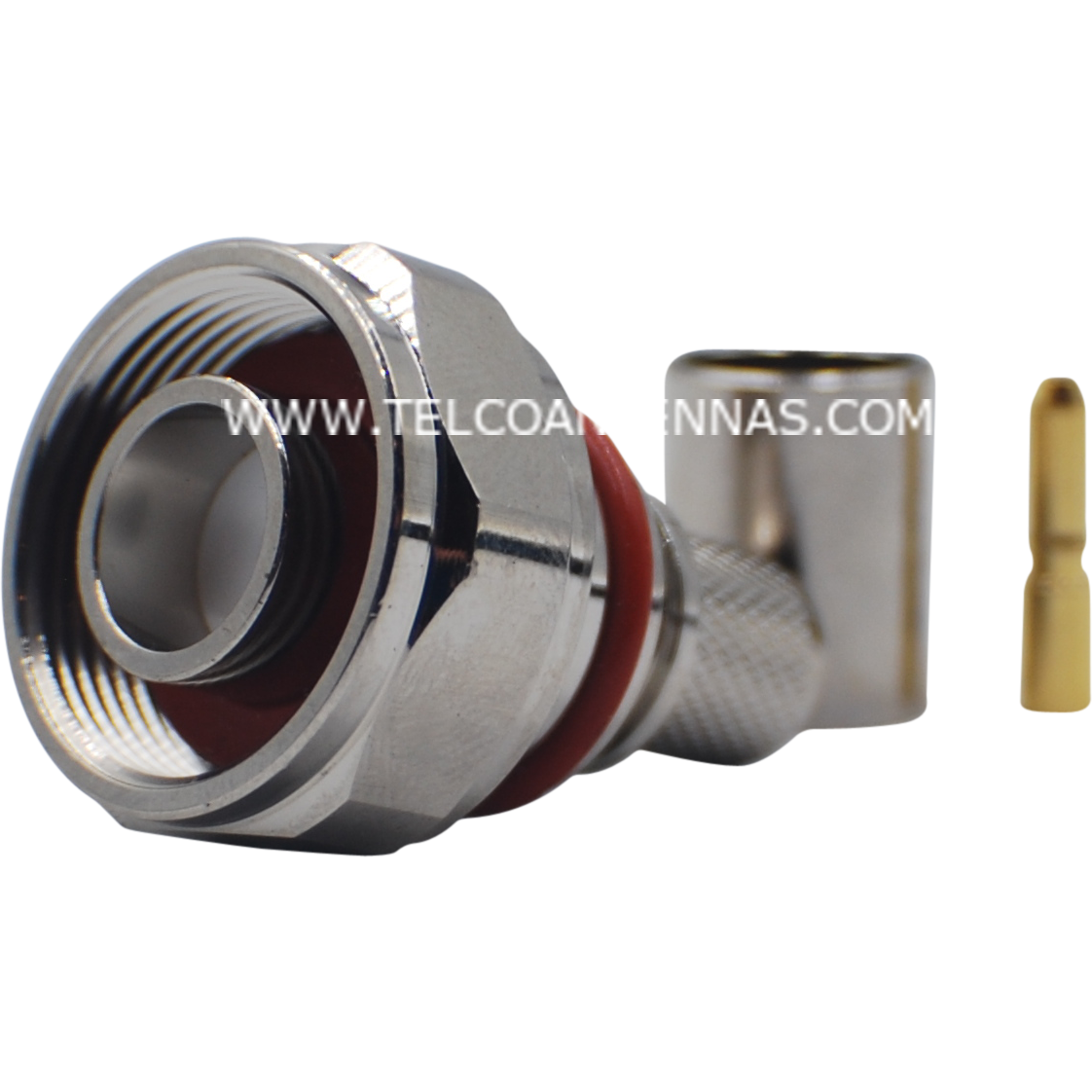

4.3-10 Male Crimp Connector



Key Features



  • 4.3-10 Plug/Pin

  • Captive Clamp mating

  • Suits 10.3mm outer diameter, 2.7mm core diameter cables such as LMR400, RG8/U



Usage



  • A crimp connector is used to terminate the end of a coaxial cable allowing connection to an RF device or antenna

  • Each series of connector differs by method of connection, size, and electrical properties, allowing a technician to select a connector to best match the intended purpose

  • Most crimp connectors consist of three components - the connector body, pin/socket, and crimping ferrule

  • Terminating a coaxial cable with a crimp connector requires three tools - a wire stripper/cutter, soldering iron, and hex crimp

  • You can find instructional videos on crimping most connectors on YouTube.



Crimp Hex Die Sizing

  • RG316/RG174 - 0.128"
  • RG58/LMR195 - 0.213"
  • LMR400/RG8 - 0.429"



Product image representative only, for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-6GHz

  • Working Voltage: 1000V RMS

  • Withstand Voltage: 2500V RMS

  • Average Power: 3kW max

  • VSWR: <1.2:1/6GHz



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Silver

  • Pin/Socket Contact: Beryllium-Copper

  • Pin/Socket Plating: Gold

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C

  • IEC 61169-54 (4.3-10 Type)



(4310M-400)

SKU 4310M-400
