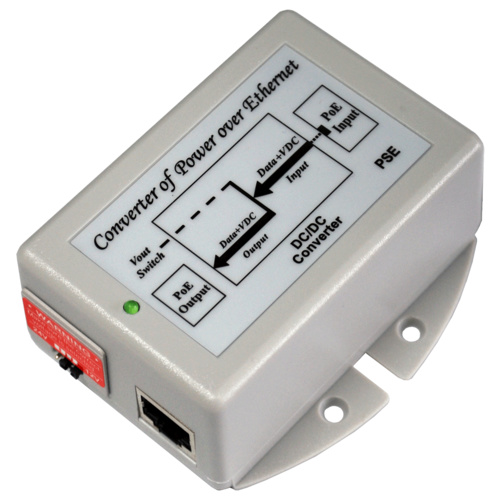

DC-DC Passive Power over Ethernet Injector for Ubiquiti

Key Features

• Convert 802.3af 48V PoE into 24V DC

• 12W output - 12VDC 1A or 24VDC 0.5A switchable

• Short Circuit, Over Current and Reverse/Over Voltage Protection

• High Temperature Operation.

Usage

• MSTronic's series of DC to DC converters are a low cost and high reliability solution for those needing to maintain power-cycling control over 12 and 24VDC devices running from a 802.3af switch (such as a Cisco PoE switch)

• In managed networks Ubiquiti's supplied PoE injectors can be problematic for network managers needing to remotely manage the power-cycling of radios

• The MIT-22-1224 can be used to convert 802.3af PoE supplied by the managed switch into 24V Passive PoE required by the Ubiquiti device

• They accept data-in and PoE from a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.

Specifications

Electrical Specifications

• Input voltage: 48V PoE 802.3af compliant

• Output voltage and current: +12V or 24V non-802.3af

• Maximum load: 1.0A Power: 12W (maximum)

• Minimum load: 0A

• Load regular percentage: 5%

• Line regular percentage: 1%

• Ripple percentage: 1.5%

• Noise percentage: 3%

• Ripple and noise bandwidth: from DC to 20MHz Terminated with 47uF capacitor and 0.1uf MPE capacitor of proper polarity

• Efficiency: 85% min at 48V DC, input at F.L Short-circuit protected output Short GND terminal to prevent damage to power supply Auto-recovery Input fuse protection

• Current limit: 150 to 250% at

Mechanical & Environmental Specifications

• Operating temperatures: -25 to 50°C

• Storage temperatures: -25 to 85°C

• Operating humidity: 5 to 90%

• Coolin: Free air cooling

• Dimensions: 76 x 48 x 27mm

• Non-isolated I/O Low-battery protection RJ-45 input (data and power) and RJ-45 output (data and power)

Read More

• Specification Sheet
