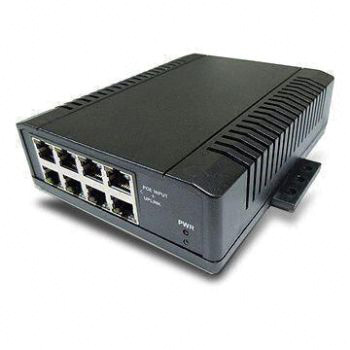

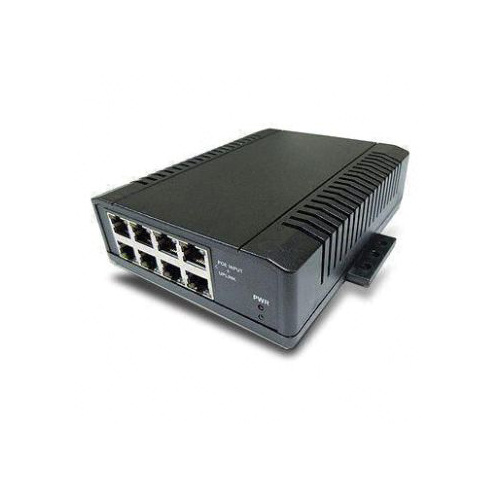

8-port PoE Switch/Extender, 10-57V DC Input, 2A/Port Output

Features

• The PSE-SW8 PoE Switch family provides a PoE/Data input port that is compatible with 802.3af and 802.3at (Type 1 and Type 2) and it has seven 10M/100M TX ports with PoE PSE function.

• In addition to the ability to accept 48VDC PoE input on Port 8, the model provides secondary DC wire terminal input for PoE switch operation from 12V to 57VDC.

• If powered the model via rear DC terminal, the PoE output voltage is equal to the input voltage.

• The PoE Switch can be used as an Ethernet/PoE repeater to extend Ethernet data and DC power up to 200 meters.

• Installation of the PoE switch is very easy and you will begin to operate as soon as you are powered up.

• The PSE-SW8 comes with DIN rail mounting clips for ease of mounting in network cabinets.

Technical Specifications:

• Standards: IEEE802.3/IEEE802.3u standards (10 base-T/100base-T)
• Ports: 8 ports with 7 PoE PSE & 1 PoE PD, supports auto-crossover & auto-polarity
• Transmission speed: 100 Mbps (100base-T), 10 Mbps(10base-T) Auto-negotiation
• Switch technology: store-and-forward
• Protocols: CSMA/CD
• Flow control: IEEE802.3x (full-duplex), back pressure (half-duplex)
• Data transmission rate: 148800pps for 100base-T, 14880pps for 10base-T
• Address table: 2K MAC address table, self-learning
• Connect: RJ-45
• PoE port:
  • Port 1-7, Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8)
  • Port 8, 4 pairs PD
• Maximum PoE power:
  • Port 1-7: IEEE802.3af –16.8W (0.35A/port), IEEE802.3at—35W (0.625A/port), 2 A/port , total 7A Maximum (PSE-SW8S)
  • Port 8: 90W (802.3at 2 event classification)
• PSE disconnect mode: DC disconnect
• PoE auto detection: IEEE802.3af and IEEE802.3at(2 event classification)
• PoE protection: over-current, over/under voltage
• LEDs:
  • *Link/Activity (Green ON/ Green Blinking @100Mbps, Yellow/Yellow Blinking @10Mbps)
  • *PoE (Yellow)
    • port 1-7: ON – PD detect
    • Port 8 : ON – 2 or 4 pair power
  • *POWER: Green-normal, Red-alarm
• Power input: DC(12V~57V) from rear panel or DC(44V~57V) from port 8 from midspan (or network switch)
• Power consumption: 5W when without PD loading
• Operating temperature: -40℃~+85℃
• Operation humidity: 90% relative humidity, non-condensing
• Storage temperature: -40℃~+85℃
• Dimension: 40mm(H) x 118mm(W) x 150mm(D) DIN RAIL Mountable
