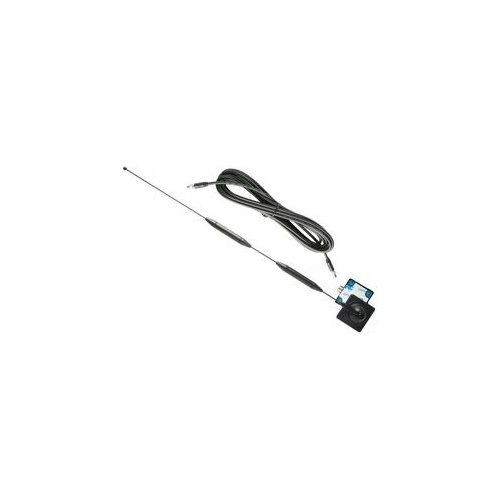

9dBi Glass Mount Mobile Antenna



Key Features



  • Low-profile design

  • For commercial fleet vehicles and emergency services.



Usage



  • The 9dBi glass mount antenna series represent the next generation of cellular antennas

  • The antenna is designed with a unique in-car counterpoise that improves the vehicles ground plane and adds to the overall antenna performance

  • These antennas achieve significant gain improvements over antennas of similar size.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra Next-G™ (850MHz)
compatible
9dBi
Optus 3G (900MHz)
compatible
9dBi
Optus 3G (900MHz)
compatible
9dBi



A heads up!



  • These are manufacturer advertised gains; our engineering staff are dubious about the claimed values.



Electrical Specifications



  • Frequency Range: 824-960MHz/1710-1880 MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Maximum Power: 10 Watts

  • Radiation: Omni Directional



Mechanical/Environmental Specifications



  • Cable: 4m RG58/U

  • Connector: FME Female

  • Mount: 50mm ABS Plastic with adhesive pad Whip

  • Connection: Ball/Swivel

  • Length: 490mm (h)

  • Dimensions: 490mm (h)



Connection



  • This antenna has a 4m cable that terminates with an FME Female connector

  • The FME Female connector is the most common type of connector for mobile antennas and mates with the FME Male connector found on patch leads and phone cradles.



female FME Connector



FME Female Connector [pictured]



Contact us If you would like a shorter length of cable, or a different connector so we can customise this antenna for you.



(9DBI-THRUGLASS)

SKU 9DBI-THRUGLASS
Shipping Weight 1.1000kg
Shipping Width 0.050m
Shipping Height 0.090m
Shipping Length 0.300m
Shipping Cubic 0.001350000m3
