9VDC to 36VDC PoE - Passive Power over Ethernet Injector
Max Load of 24V / 0.8A
SKU: MIT-69N-1224BNNN
Direct Product Replacement for the MIT-14-24

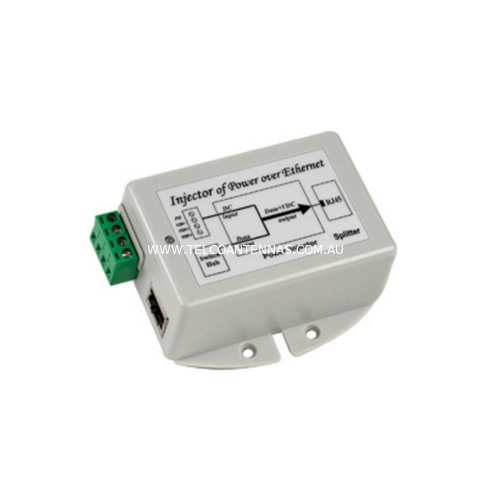

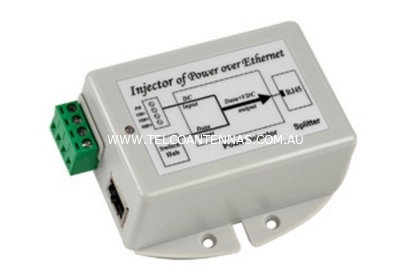

DC-DC Passive Power over Ethernet Injector
Key Features
-
Suits solar power systems
-
9-36VDC systems
-
24VDC 0.8A 802.3af Mode B PoE output (passive)
-
Dual DC power input
-
Short-circuit protected output
-
High Temperature Operation
-
Ideal for Ubiquiti devices.
Usage
-
This series of DC to DC converters are a low cost and high reliability solution for those requiring 24VDC Power over Ethernet voltage from a 12V battery system
-
They have an integrated POE injector to apply 24VDC to Ethernet cable in 802.3af Mode B (Passive) PoE pin arrangement (no handshake)
-
They have two isolated inputs for connecting 2 power sources, like a primary and backup power source
-
A metal enclosure model is available for industrial applications
-
They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack
-
They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).
Electrical Specifications
-
Input voltage: 9 to 36V DC
-
Input current: 2.05A max at 12V DC at F.L 1.0A max at 24V DC at F.L
-
Output voltage and current: +24V non-802.3af
-
Max load: 0.8A Power: 19.2W maximum
-
Min load: 0.01A
-
Load regular percentage: 5%
-
Line regular percentage: 1%
-
Ripple percentage: 1%
-
Noise percentage: 1%
-
Total power: 19.2W
-
Ripple and noise bandwidth: from DC to 20MHz Terminated with 47uF capacitor and 0.1uf MPE capacitor of proper polarity
-
Efficiency: 75% min at 12V/24V DC, input at F.L Short-circuit protected output Short GND terminal to prevent damage to power supply Auto-recovery Input fuse protection
-
Current limit: 120 to 160% at 9V to 36V DC FCC Class A standard
-
Operating temperature: -25 to 50 degree Celsius
-
Storage temperature: -40 to 85 degree Celsius
-
Operating humidity: 5 to 90%
-
Cooling: Free air cooling
-
Dimension: 86 x 78 x 36mm
(MIT-69N-1224BNNN)
