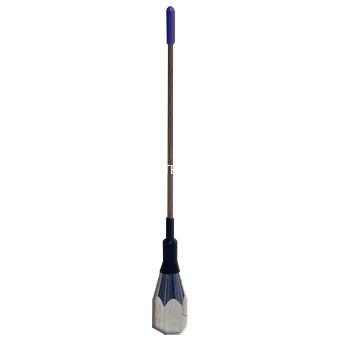

GME AE4001 - 2.1dBi Flexible Whip UHF/CB Antenna



Key Features



  • GME AE4001 - UHF 477 MHz Antenna

  • Compact Flexi-Whip

  • Full UHF 477MHz 80 channel radio band - ground plane dependent - 5/16" stud mounted

  • Highly flexible stainless steel antenna whip with chrome ferrule

  • Factory tuned for 477MHz and suitable for all Uniden, GME, Oricom and Vertex UHF CB radios

  • 100% Australian made.



Usage



  • Ground plane dependent mounting

  • This GME antenna needs a large uniform metal surface beneath the radiating elements to perform correctly - this is referred to as a ‘ground plane’

  • The best position to install this antenna is in the centre of a metal roof, however, this is not always possible and installation on a bull bar or mirror mount is often necessary

  • In this case a ‘ground plane independent’ antenna should be used to give the antenna its desired radiating pattern without a metal ground plane.



Specificatons / Frequency



Electrical Specifications



  • Frequency Range: 476-477MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: stainless steel whip with chrome ferrule

  • Length: 150mm

  • Mounting: 5/16" Stud



GME UHF antenna and radio logo

(AE4001)

SKU AE4001
Shipping Weight 0.2300kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.000500000m3
