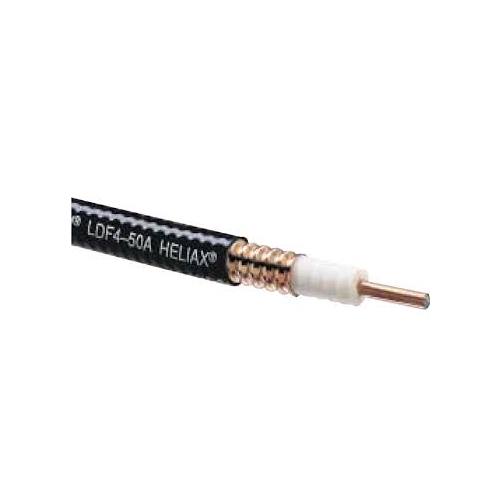

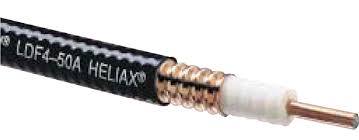

Andrew LDF4-50A HELIAX 1/2" Foam Dielectric - Cable Per Metre



Key Features



  • Low density foam dielectric

  • 50Ω impedance

  • Corrugated copper outer conductor

  • CCA inner conductor.



Usage



  • Commscope's Andrew ½” flexible foam dielectric 50Ω coaxial cable is a very high performance feeder cable

  • The HELIAX brand represents a legacy of innovation upon which today’s technology is built. That's important in today’s wireless market, where there's simply no margin for error.



A heads up!


  • Pricing is listed per metre, long lengths will be supplied on cable spool

  • We strongly advise using our trade form or contacting us for ordering this product.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 76pF/m

  • Signal Loss: 0.067dB/m @ 850MHz, 0.11dB/m @ 2100MHz

  • Frequency Range: DC-8.8GHz

  • Maximum Recommended Length: 100m (cellular bands)

  • Velocity of Propagation: 88%

  • Peak Power: 40kW



Mechanical Specifications



  • Weight/100m: 22kg

  • Minimum Bend Radius: 50.8mm

  • Conductor Material: CCA (4.82mm)

  • Insulating Material: Physical Foam Polyethylene (12.94mm)

  • Outer Shield Material: Corrugated Copper Tube (13.97mm)

  • Outer Jacket Material: Black PE Weather & UV Resistant (15.87mm)



Read More





commscope andrew logo

(LDF4-50A-500)

SKU LDF4-50A-500
Shipping Width 0.050m
Shipping Height 0.500m
Shipping Length 0.035m
Shipping Cubic 0.000612000m3
