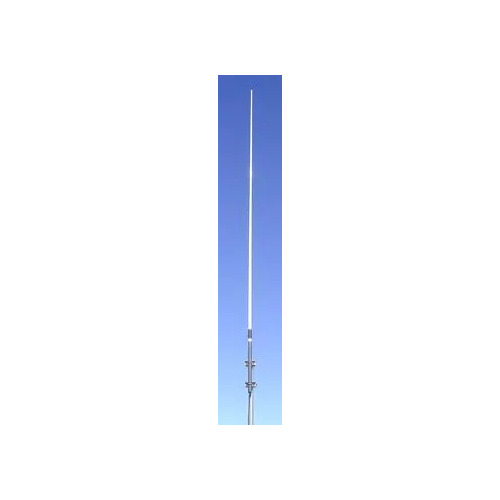

The B20G-N omnidirectional marine VHF collinear antenna is designed for marine VHF communications in a fixed position also known as base station. The B20G-N high gain VHF communications antenna is manufactured and tuned for efficient transmit and receive performance for all marine VHF emergency communications channels. We recommended mount your B20G-N VHF collinear antenna utilising 2 x EB1-SS stainless steel parallel mount clamps or 2 x NSM-B20G nylon side/wall mount clamps.

(B20G-N)

Tuned to cover the full VHF marine band, these ground independent antennas
may be mounted to the mast of a vessel, or they can be side mounted from a
wheelhouse of and other flat vertical surface.
Mounting hardware, coaxial feeder cable, adaptors and other installation
accessories are all available separately


Construction: White tapered Fibreglass radome, stainless steel mount section, bottom N type Female termination

Frequency Range: 156-162 MHz Marine VHF Radio

Bandwidth: Full frequency range stated - 6 MHz

Tuning: Factory

VSWR: Tx 156-158.5 MHz at <1.5:1 VSWR, Rx 158-162 MHz at <1.5:1 to max. <2.8:1 VSWR

Gain: 5.1 dBi

Maximum Power: 50 Watts

Impedance: 50 Ohms

DC Grounding: Yes

Polarisation: Vertical

Height: 3.4 Metres

Weight: 1.5 Kg

wind load at 160 Kph: 0.066kN; 6.696 Kg









SKU B20G-N
Brand ZCG
Shipping Weight 1.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 3.400m
Shipping Cubic 0.034000000m3
