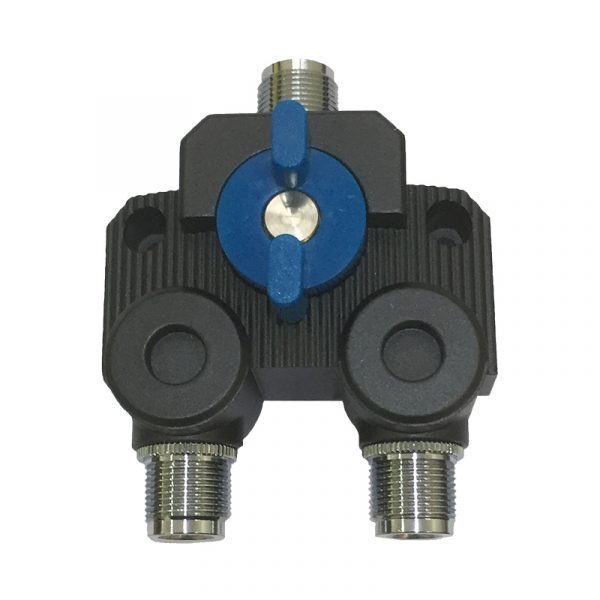

Benelec RF Manual Switch - 1 Input, 2 Outputs - N Female - 1-3GHz



Key Features



  • N-Type

  • Manual Switch for Dual Antenna Setups

  • N Female Connectors



Usage



  • Connect two Antennas to the one Device simultaneously for Manual Cut Over

  • This is a high quality low VSWR, low insertion loss RF power divider



Specifications / Frequency



Electrical Specifications



  • Frequency Range 1-3GHz
  • Power Range: DC-30MHz 2KW / 30MHz-200MHz 1KW / 200MHz-500MHz 500W / 500MHz-1GHz 250W / 1GHz-3GHz 150W
  • Insertion Loss: DC-500MHz ≤0.05dB / 500MHz-1GHz ≤0.10dB / 1GHz-2GHz ≤0.15dB / 2GHz-3GHz ≤0.20dB
  • Output Port 1-2 Isolation: DC-500MHz ≥60.0dB / 500MHz-1GHz ≥50.0dB / 1GHz-2GHz ≥45.0dB / 2GHz-3GHz ≥40.0dB
  • VSWR: DC-500MHz ≤1.15dB / 500MHz-1GHz ≤1.25dB / 1GHz-2GHz ≤1.20dB / 2GHz-3GHz ≤1.25d



Mechanical Characteristics

  • Operating temperature: -30 +70°C

  • Relative humidity: 5~95%

  • Dimensions: 80 x 50 x 20mm

  • Weight: 440g
