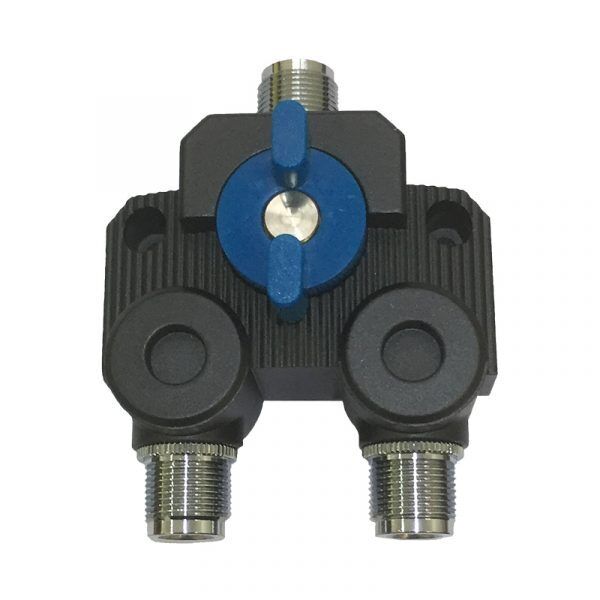

Benelec RF Manual Switch - 1 Input, 2 Outputs - UHF Female (SO239) - DC-1GHz



Key Features



  • UHF Female (SO 239)

  • Manual Switch for Dual Antenna Setups

  • UHF (SO 239) Female Connectors



Usage



  • Connect two Antennas to the one Device simultaneously for Manual Cut Over

  • This is a high quality low VSWR, low insertion loss RF power divider

  • Ideal for HF, MF, VHF & UHF PMR/LMR Radio systems, Marine VHF and UHF 477 MHz CB radio



Specifications / Frequency



Electrical Specifications



  • Frequency Range DC-1GHz
  • Power Range: DC-30MHz 2KW / 30MHz-200MHz 1KW / 200MHz-500MHz 500W / 500MHz-1GHz 250W
  • Insertion Loss: DC-500MHz ≤0.05dB / 500MHz-1GHz ≤0.10dB
  • Output Port 1-2 Isolation: DC-500MHz ≥60.0dB / 500MHz-1GHz ≥50.0dB
  • VSWR: DC-500MHz ≤1.15dB / 500MHz-1GHz ≤1.25dB



Mechanical Characteristics

  • Operating temperature: -30 +70°C

  • Relative humidity: 5~95%

  • Dimensions: 80 x 50 x 20mm

  • Weight: 440g

(1738101B)

SKU 1738101B
Brand Benelec
Shipping Weight 0.4400kg
Shipping Width 0.080m
Shipping Height 0.020m
Shipping Length 0.050m
Shipping Cubic 0.000080000m3
Unit Of Measure ea
