BNC Female Chassis Bulkhead Panel Mount - Front Side Nut



Key Features



  • BNC socket/jack

  • Solder termination

  • Panel mount bulkhead

  • For large orders please contact our team to arrange a quote.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-4GHz

  • Working Voltage: 500V RMS

  • Withstand Voltage: 1500V RMS

  • Contact Resistance:

    • (1) Centre Contact: <1.5mΩ

    • (2) Outer Contact: <1mΩ

  • Insulation Resistance: >5000MΩ

  • Insertion Loss: <0.2dB/3GHz

  • VSWR: <1.22:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel

  • Pin/Socket Contact: Brass/Beryllium-Copper

  • Pin/Socket Plating: Gold

  • Crimp Ferrule Material: Copper-alloy

  • Crimp Ferrule Plating: Nickel

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C

  • CECC 22120

  • MIL-C-39012

  • IEC 60169-8

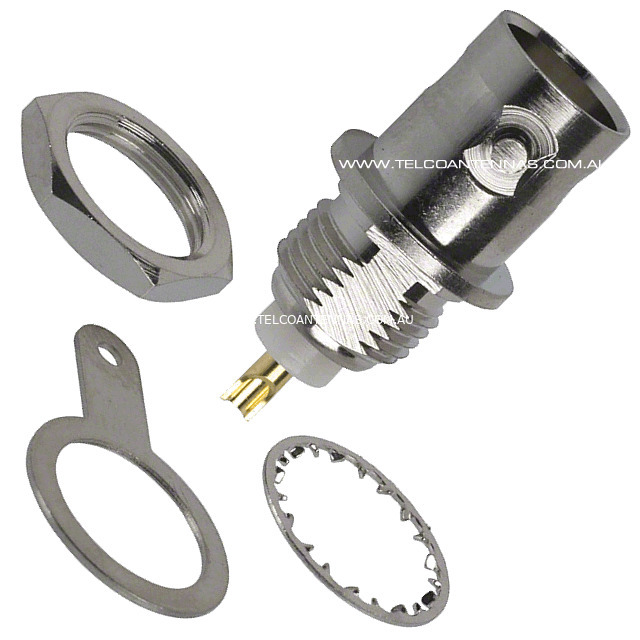

Product image representative only, for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



(BNCF-CHS)
