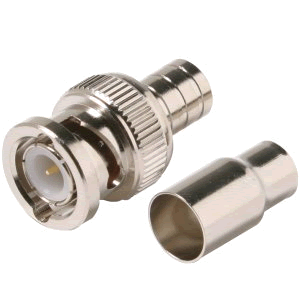

BNC Male Crimp Connector - BNC plug



Usage



  • Suits 10.5mm diameter cables such as LMR400, RG8



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-4GHz

  • Working Voltage: 500V

  • RMS Withstand Voltage: 1500V

  • RMS Contact Resistance: - (1) Centre Contact: <1.5mΩ - (2) Outer Contact: <1mΩ

  • Insulation Resistance: >5000MΩ

  • Insertion Loss: <0.2dB/3GHz

  • VSWR: <1.22:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel

  • Pin/Socket Contact: Brass/Beryllium-Copper

  • Pin/Socket Plating: Gold

  • Crimp Ferrule Material: Copper-alloy

  • Crimp Ferrule Plating: Nickel

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C

  • CECC 22120 MIL-C-39012

  • IEC 60169-8



(BNCM-400)
