BNC Male Crimp Connector



Key Features



  • BNC plug

  • Suits 2.5mm diameter cables such as RG174, RG316, and LMR100



Usage



  • A crimp connector is used to terminate the end of a coaxial cable to allow connection to an RF device or antenna

  • Each series of connector differs by method of connection, size, and electrical properties, allowing a technician to select a connector to best match the intended purpose

  • Most crimp connectors consist of three components - the connector body, pin/socket, and crimping ferrule. Terminating a coaxial cable with a crimp connector requires three tools - a wire stripper/cutter, soldering iron, and hex crimp

  • You can find instructional videos on crimping most connectors on YouTube.



Crimp Hex Die Sizing



  • RG316/RG174 - 0.128"

  • RG58/LMR195 - 0.213"

  • LMR400/RG8 - 0.429"

  • For large orders please contact our team to arrange a quote.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-4GHz

  • Working Voltage: 500V RMS

  • Withstand Voltage: 1500V RMS

  • Contact Resistance:

    • (1) Centre Contact: <1.5mΩ

    • (2) Outer Contact: <1mΩ

  • Insulation Resistance: >5000MΩ

  • Insertion Loss: <0.2dB/3GHz

  • VSWR: <1.22:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel

  • Pin/Socket Contact: Brass/Beryllium-Copper

  • Pin/Socket Plating: Gold

  • Crimp Ferrule Material: Copper-alloy

  • Crimp Ferrule Plating: Nickel

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C

  • CECC 22120

  • MIL-C-39012

  • IEC 60169-8

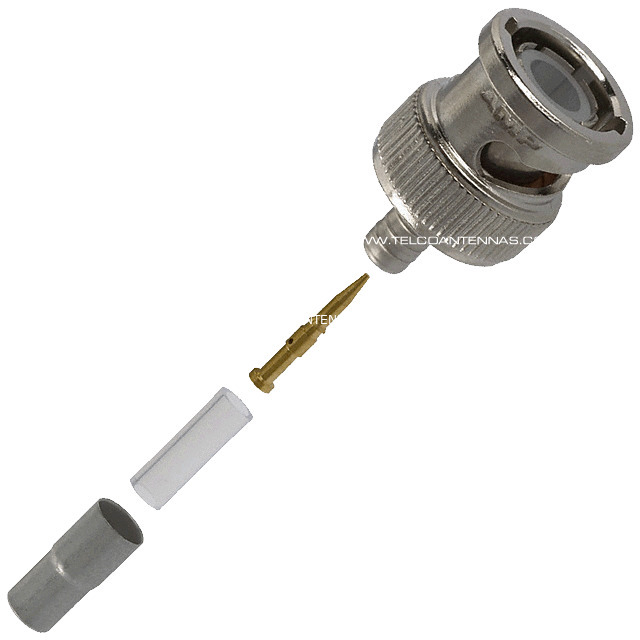

Product image representative only, for exact dimensions and/or specification please contact us for a copy of the CAD drawing.


tick rohs compliant lead free



(BNCM-174)

SKU BNCM-174
Shipping Weight 0.0450kg
