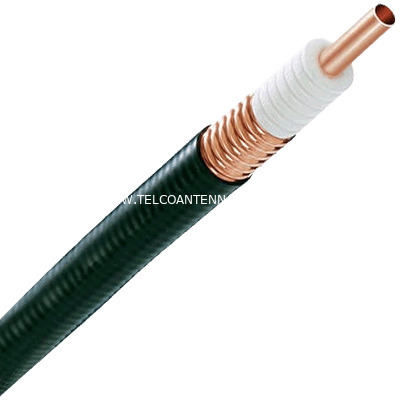

Andrew AVA5-50FX HELIAX 7/8" Foam Dielectric - Cable Per Metre



Key Features



  • Andrew Virtual Air dielectric

  • 50Ω impedance

  • Corrugated copper outer conductor

  • Copper inner conductor.



Usage



  • Commscope's Andrew 7/8” virtual air dielectric 50Ω coaxial cable is an extremely high performance feeder cable

  • The HELIAX brand represents a legacy of innovation upon which today’s technology is built

  • That is important in today’s wireless market, as there is no margin for error.



A heads up!



  • Pricing is listed per metre, long lengths will be supplied on cable spool

  • We strongly advise using our trade form or contact us when ordering this product.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 73pF/m

  • Signal Loss: 0.037dB/m @ 850MHz, 0.063dB/m @ 2100MHz

  • Frequency Range: DC-5GHz

  • Velocity of Propagation: 90%

  • Peak Power: 91kW



Mechanical Specifications



  • Weight/100m: 43kg

  • Minimum Bend Radius: 127mm

  • Conductor Material: Copper (9.448mm)

  • Insulating Material: Physical Foam Polyethylene (24.1mm)

  • Outer Shield Material: Corrugated Copper Tube (25.4mm)

  • Outer Jacket Material: Black PE Weather & UV Resistant (27.99mm)



Read More





commscope andrew logo

(AVA5-50FX)

SKU AVA5-50FX
Shipping Weight 1.8000kg
Shipping Width 0.250m
Shipping Height 0.500m
Shipping Length 0.250m
Shipping Cubic 0.031250000m3
