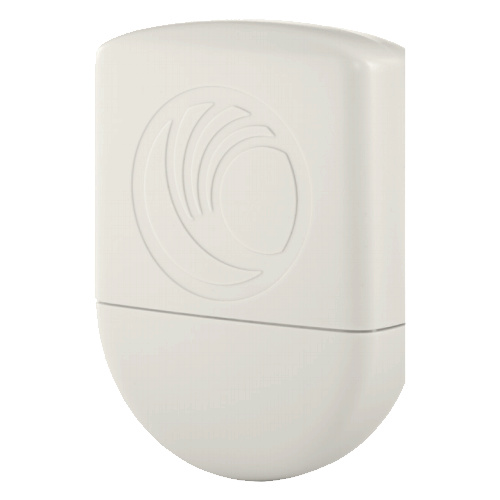

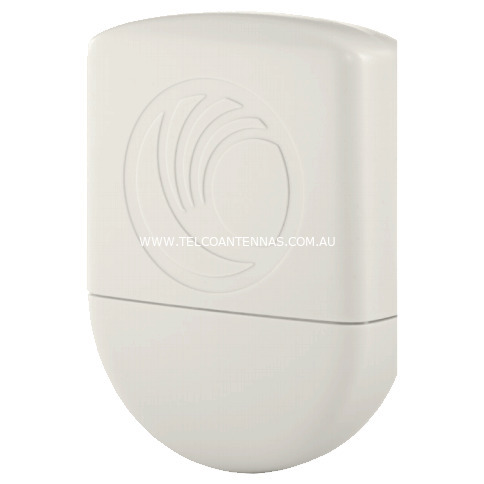

Cambium PTP450i Gigabit Surge Suppressor



Key Features



  • 2x RJ45 1000 Base T

  • 56V Nominal Voltage

  • Line-to-line and line-to-ground protection.



Usage



  • Cambium Networks design outdoor wireless broadband solutions to operate in the toughest of environment

  • Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment especially when mounted as high as 300m

  • The Gigabit Ethernet Surge Suppressor is critical for lightning protection to minimise the potential for damage

  • Network operators should always follow best-practices for grounding and lightning protection- doing so, will minimise network outages and reduce the associated costs of tower climbs and equipment repair/replacement

  • The Gigabit Ethernet Surge Suppressor is compatible with the PMP 450i (Access Point and Subscriber Module), PTP 450i and PTP 820S.

  • The unit is suitable for mounting to a wall or pole.



Specifications / Frequency



Mechanical/Environmental Specifications



  • Mounting: Pole mount or wall mount

  • Dimensions: 118 x 87.5 x 46.5mm (L x W x H)

  • Weight: 156g

  • Wind Rating: 321 km/hr

  • Operating Temperature: -40° C to +60° C 100% condensing

  • Environmental Rating: IP54 (Dust and Water Intrusion Protection)



Read More





cambium cnpilot connected partner program logo

(C000000L033A)

SKU C000000L033A
Brand Cambium
Shipping Weight 0.0450kg
Shipping Width 0.300m
Shipping Height 0.080m
Shipping Length 0.290m
Shipping Cubic 0.006960000m3
