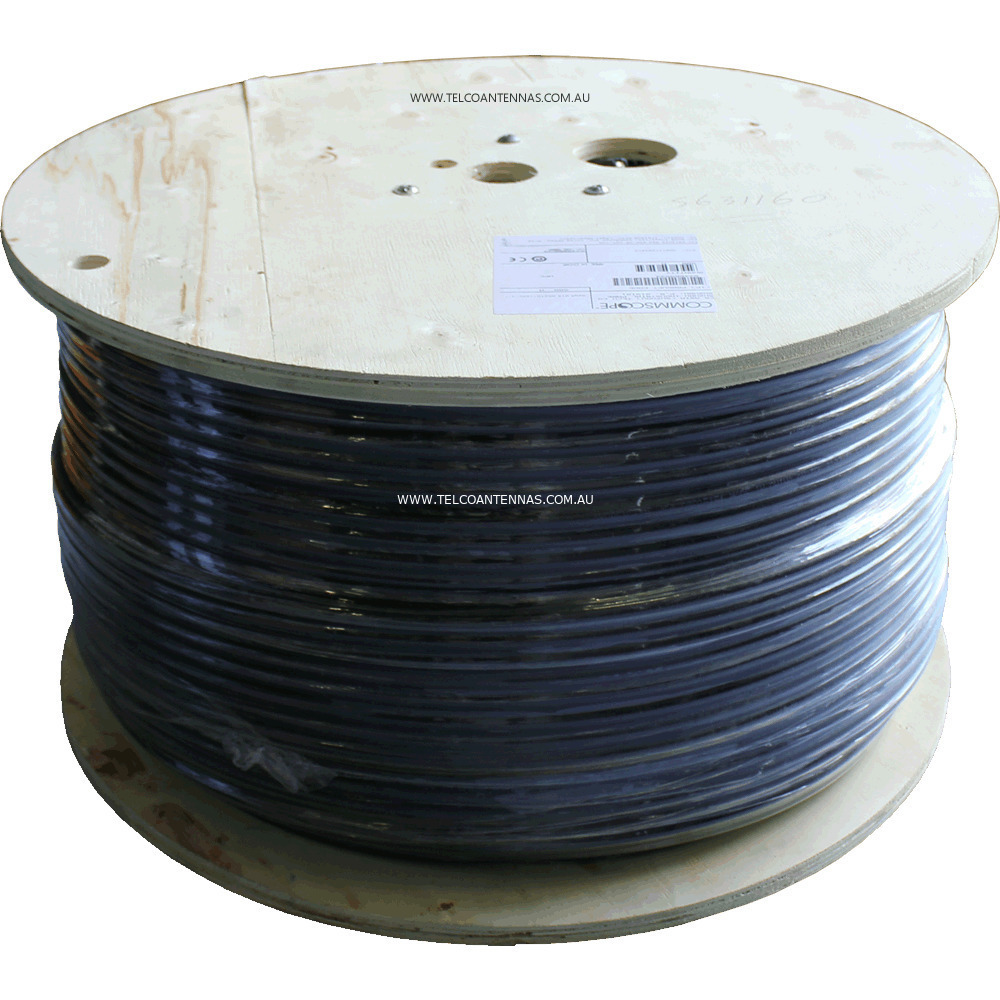

100 Metre Reel Commscope Andrew 50Ω Coaxial Cable



Key Features



  • CNT-400 50Ω series cabling

  • Andrew CNT-400 communications cable.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 78.4pF/m

  • Signal Loss: 0.12dB/m @ 850MHz, 0.20dB/m @ 2100MHz

  • Frequency Range: DC-16.2GHz

  • Velocity of Propagation: 85%

  • Nominal Delay: 3.92ns/m

  • Voltage Withstand: 2500Volts

  • DC Peak Power: 16kW



Mechanical Specifications



  • Weight/100m: 10kg

  • Minimum Bend Radius: 25.4mm

  • Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)

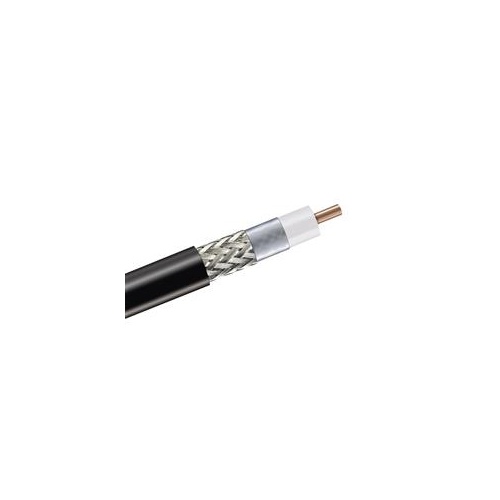

  • Conductor Material: Copper Clad Aluminium (CCA)

  • Conductor Diameter: 2.74mm

  • Insulating Material: Gas Injected Foamed Polyethylene

  • Outer Shield Material:

    • (1) Bonded Aluminium Polyester Tape 100% Coverage

    • (2) Tinned Copper Braid 86%

  • Coverage Outer Jacket Material: Non-halogenated PE

  • Outer Diameter: 10.3mm



A heads up!



  • Shipping price provided upon application.


commscope andrew logo

(CNT400-100)

SKU CNT400-100
Shipping Weight 20.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.300m
Shipping Cubic 0.018000000m3
