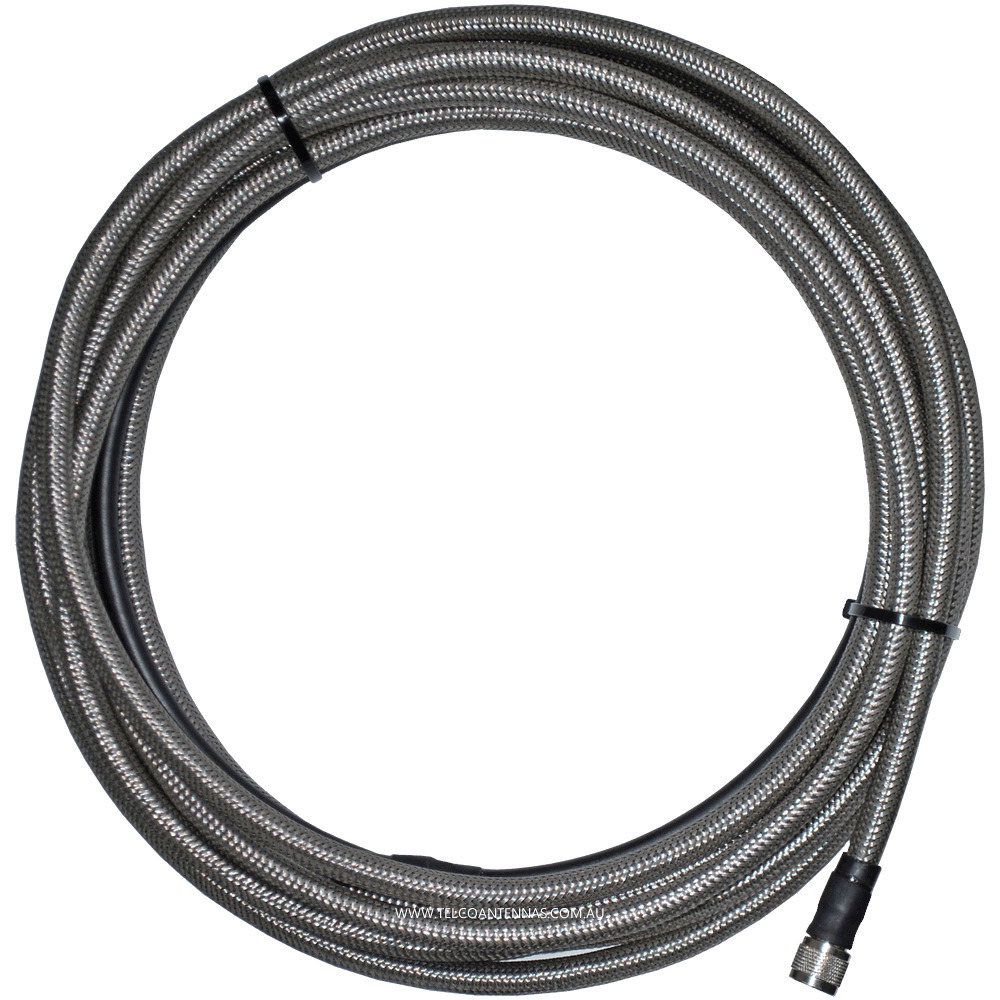

Custom Length LCU-400 Armoured Cable Assembly Manufacturing



Key Features



  • LCU400 50Ω series cabling

  • FLEX Stranded Copper Conductor

  • UV Stable rubberised TPFE Jacket

  • High grade stainless steel outer braid

  • Your choice of connectors of High quality ETSI/EN/MIL-STD certified connectors.



Usage



  • We manufacture quality Armoured LCU400 series coaxial cables customised to your requirements

  • High environmental protection LCU-400 cables, pre-fitted with stainless steel outer braiding for protection from wildlife and vandal attack. Can be combined with mid-span grounding for added EMI protection.

  • This cable is manufactured locally in Brisbane, individually swept using Anritsu SiteMaster - test report available upon request

  • Please use the dropdown boxes to select your cable terminations.



Electrical Specifications

  • Resistance: 50Ω

  • Capacitance: 78.4pF/m

  • Signal Loss (typical, terminated cable):

    • 0.145dB/m @ 850MHz

    • 0.151dB/m @ 940MHz

    • 0.229dB/m @ 1810MHz

    • 0.259dB/m @ 2170MHz

  • Frequency Range: DC-16GHz

  • Velocity of Propagation: 85%

  • Nominal Delay: 3.92ns/m

  • Voltage Withstand: 2500Volts DC

  • Peak Power: 16kW



Mechanical Specifications

  • Weight/100m: 12.8kg

  • Minimum Bend Radius: 25.4mm

  • Conductor Material: 7 Strand Bare Copper (2.74mm)

  • Insulating Material: Gas Injected Foamed Polyethylene (7.24mm)

  • Outer Shield Material:

    • (1) Sealed APA Tape 100% Coverage (7.37mm)

    • (2) Tinned Copper Braid 98% Coverage (8.17mm)

  • Outer Jacket Material: Thermoplastic Elastomer (TPE), Hone Finish (10.3mm)

(CUSTOM-400-ARMR)

SKU CUSTOM-400-ARMR
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.000500000m3
