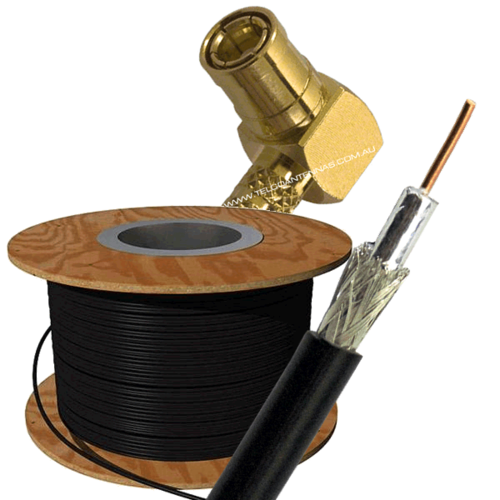

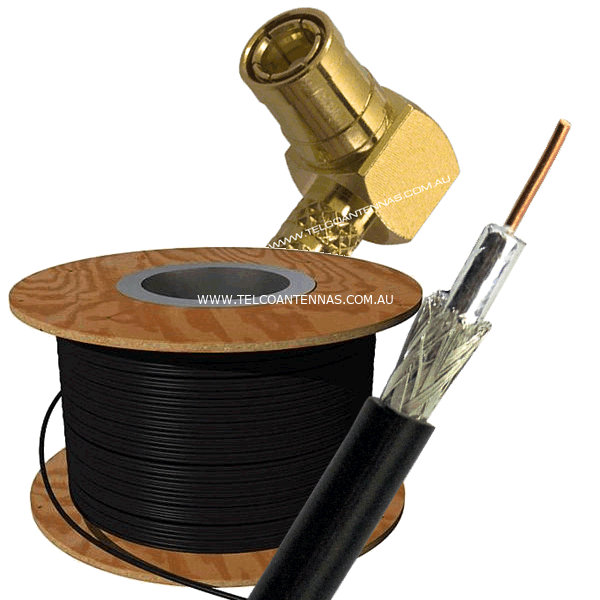

LCU195 Custom Made Cables

Key Features

• Use the fields above to customise your cable

• Cable length measured is exclusive of connector

• Insertion Loss test reports available upon request.

Usage

• We manufacture quality LCU195 cables customised to your requirements

• We solder all connectors by hand for maximum performance and durability

• If you require a large volume, we can offer leads at a significantly cheaper rate, please contact us for more information

• This cable is a weatherproof high performance alternative to standard RG58

• LCU-195 maintains a 5mm diameter and trades flexibility for far superior electrical shielding.

Prices (inc GST)

• $2 per metre of LCU195, minimum length 10cm

• $15 per terminated connector.

Introducing dB-FLEX

• dB-FLEX is our flagship subtype of LCU195 cabling, designed for maximum weather resistance and usability

• LCU195 dB-FLEX has a 7-strand bare copper centre conductor which permits repeated bending and much greater flexibility, allowing an incredibly tight bend radius - similar to Times Microwave's LMR-195 UltraFlex

• Both dB-FLEX and UltraFlex cables achieve this by trading off for a marginally higher per-metre loss, up from 0.36dB/m to 0.42dB/m @ 850MHz

• dB-FLEX has a UV-stable TPE (Thermoplastic Elastomer) jacket designed for harsh outdoor environments while maintaining maximum flexibility and minimising plastic memory (for improved wall-cavity feeding)

• Please note emergency stock fulfilment may use standard LMR-195 cable - if you specifically require dB-FLEX cable please advise when placing order.

Specifications /Frequency

Electrical Specifications

• Resistance: 50Ω

• Capacitance: 83.3pF/m

• Signal Loss: 0.42dB/m @ 850MHz, 0.63dB/m @ 1800MHz

• Frequency Range: DC-6GHz

• Velocity of Propagation: 76%

• Nominal Delay: 4.17ns/m

• Voltage Withstand: 1000Volts DC

• Peak Power: 2.5kW

Mechanical Specifications

• Weight/100m: 3.0kg

• Operating Temperature: -40° ~ +85°C

• Minimum Bend Radius: 12.7mm

• Conductor Material: Seven Strand Solid Copper (0.94mm)

• Insulating Material: Foam PE (2.79mm)

• Outer Shield Material:

  • Bonded Aluminium Polyester Tape 100% Coverage (2.95mm)

  • Tinned Copper Wire 88% Coverage (3.53mm)

• Outer Jacket Material: TPE Weather & UV Resistant (4.95mm ±0.15mm)
