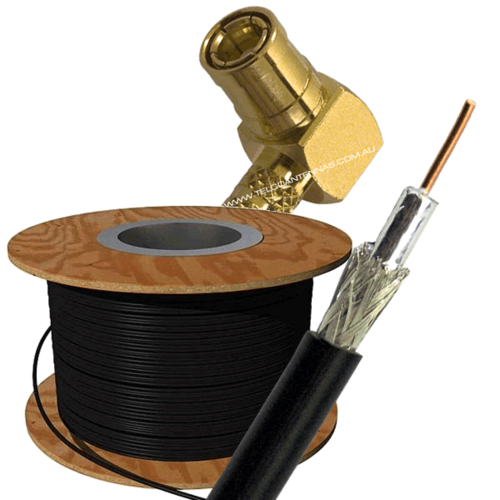

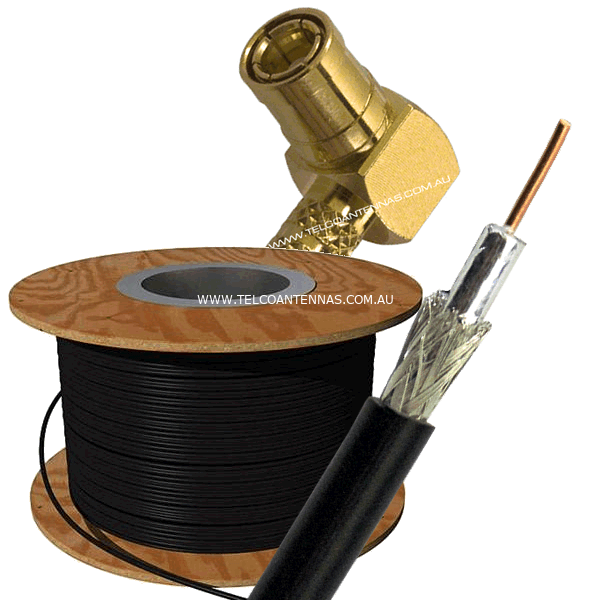

Times Microwave LMR195 Custom Made Cables



Key Features



  • Use the fields above to customise your cable

  • Cable length measured is exclusive of connector

  • Insertion Loss test reports available upon request.



Usage



  • We manufacture quality LMR195 cables customised to your requirements

  • We solder all connectors by hand for maximum performance and durability

  • If you require a large volume, we can offer leads at a significantly cheaper rate, please contact us for more information

  • This cable is a weatherproof high performance alternative to standard RG58

  • LMR-195 maintains a 5mm diameter



Prices (inc GST)



  • Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable

  • Drop-in replacement for RG-58 and RG-142

  • Short Antenna Feeder runs

  • The LMR-195 cable is MSHA approved for mining operations

  • This low loss 50 Ohm coax cable features a foil shield and 90 percent braided shield

  • The LMR-195 transmission line can be used in almost any application where handling characteristics, improved shield and low loss is required



Specifications / Frequency



Electrical Specifications

  • Resistance: 50Ω

  • Capacitance: 83.3pF/m

  • Signal Loss: 0.36dB/m @ 850MHz, 0.53dB/m @ 1800MHz

  • Frequency Range: DC-6GHz

  • Velocity of Propagation: 76%

  • Nominal Delay: 4.17ns/m

  • Voltage Withstand: 1000Volts DC

  • Peak Power: 2.5kW



Mechanical Specifications

  • Weight: 0.03kg/m

  • Operating Temperature: -40° ~ +85°C

  • Minimum Bend Radius: 12.7mm

  • Conductor Material: Solid BC (0.94mm)

  • Insulating Material: Foam PE (2.79mm)

  • Outer Shield Material:

    • (1) Bonded Aluminium Polyester Tape 100% Coverage (2.95mm)

    • (2) Tinned Copper Wire 88% Coverage (3.53mm)

  • Outer Jacket Material: PVC Weather & UV Resistant (4.95mm ±0.15mm)
