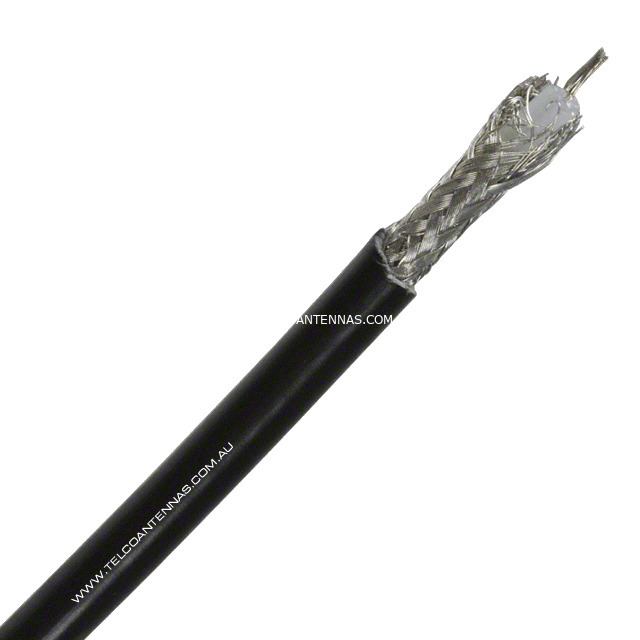

RG58 Coaxial Cable



Key Features



  • High quality RG58 series cable cut to measured lengths

  • Cut to Measure



Usage



  • The most basic type of coaxial cable encountered

  • This cable type is flexible, has reasonable performance characteristics, but most of all is cheap.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Signal Loss: 0.46dB/m @ 850MHz, 0.76dB/m @ 2100MHz

  • Frequency Range: 0-6GHz

  • Maximum Recommended Length: 15m (cellular bands)

  • Velocity of Propagation: 77%

  • Nominal Delay: 4.19ns/m



Mechanical Specifications



  • Conductor Diameter: 0.9mm

  • Insulating Material: Gas-injected FHDPE

  • Outer Shield Material: - (1) Aluminum Foil-Polyester Tape-Aluminum Foil 100% Coverage - (2) Tinned Copper 90% Coverage

  • Outer Jacket Material: Polyethylene (5mm)





(CABLE-RG58)

SKU CABLE-RG58
Shipping Width 0.050m
Shipping Height 0.100m
Shipping Length 0.004m
Shipping Cubic 0.000002000m3
