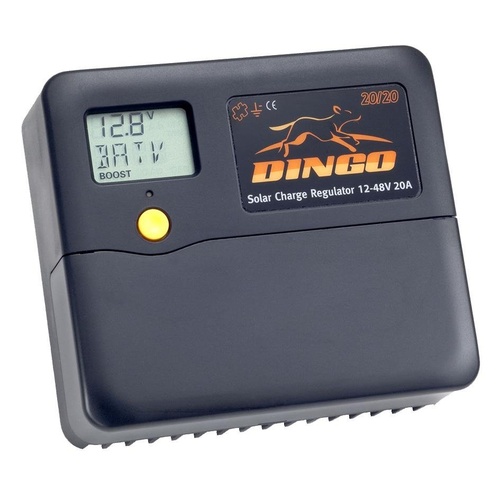

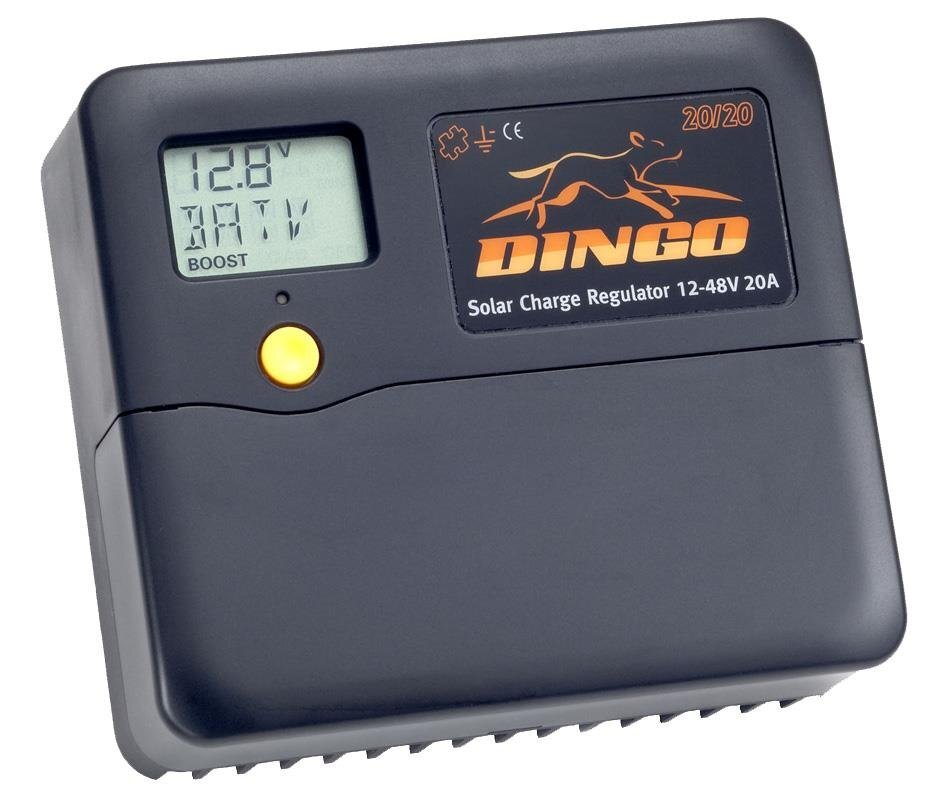

The Dingo series of solar controllers is exceptionally versatile. They give the user unparalleled capability to adjust the function of the controller and to monitor the performance of the energy system. PLD2020N handles 20A charge and load current from 12V-48V, negative ground.

SPECIFICATIONS:

Brand Plasmatronics
Nominal DC voltage 12-48VDC
Maximum charge current (Amps) 20
Load Control (Amps) 20
Low Voltage Disconnect (LVD) Yes
Battery Type All types - programmable
Adjustable Regulation Set-points Yes
Temperature Compensation Yes
Display LCD
Mounting Wall
Ground Type Negative
Size (mm) WxHxD 137x121x45
Warranty 5 years
Weight 0.4

(PLD2020N)

SKU PLD2020N
Brand Dingo 2020 Regulator- VE Grd 12-48V 20 AMP SOLAR &
