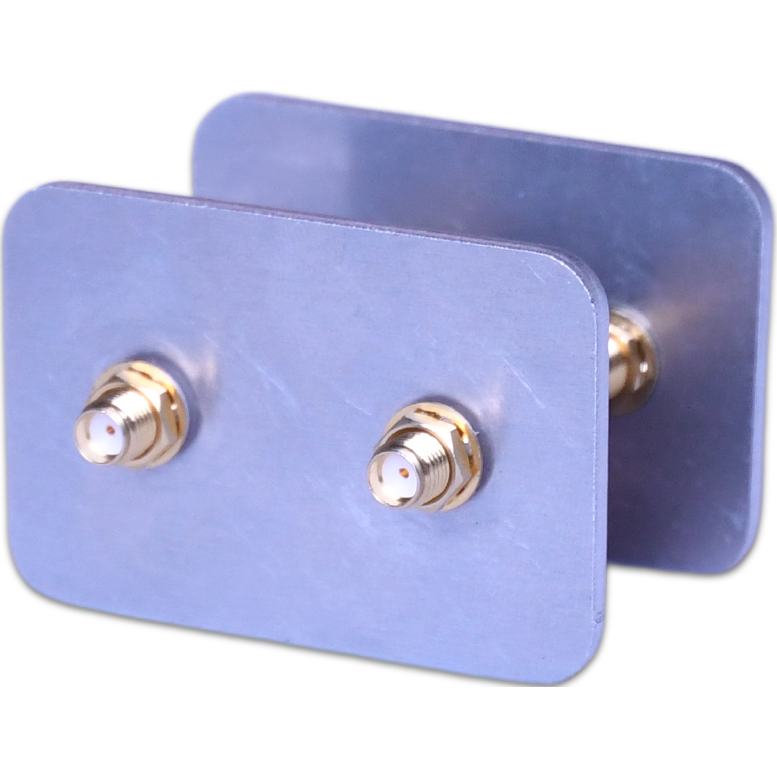

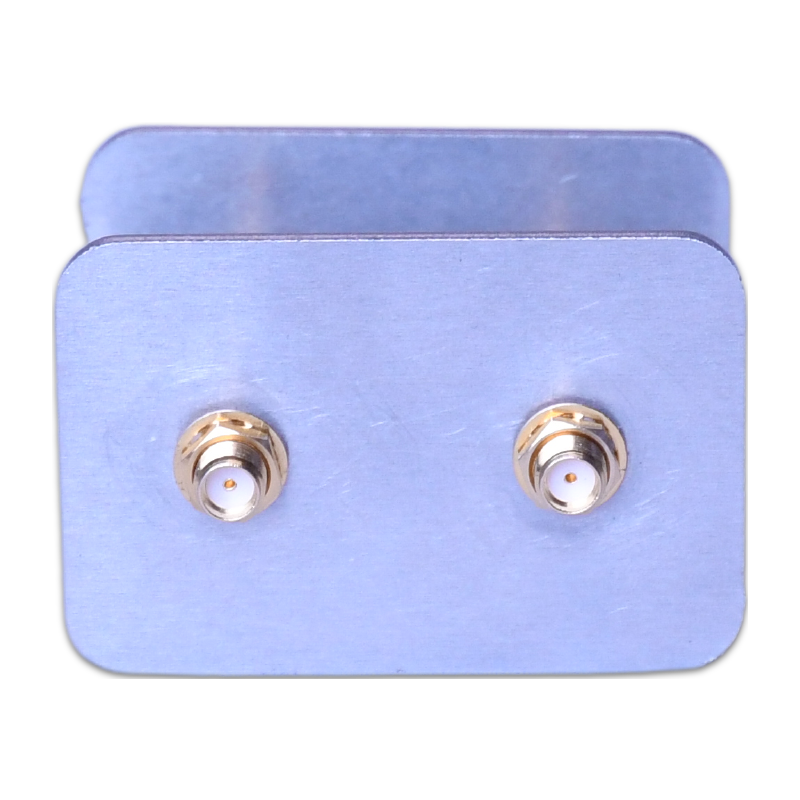

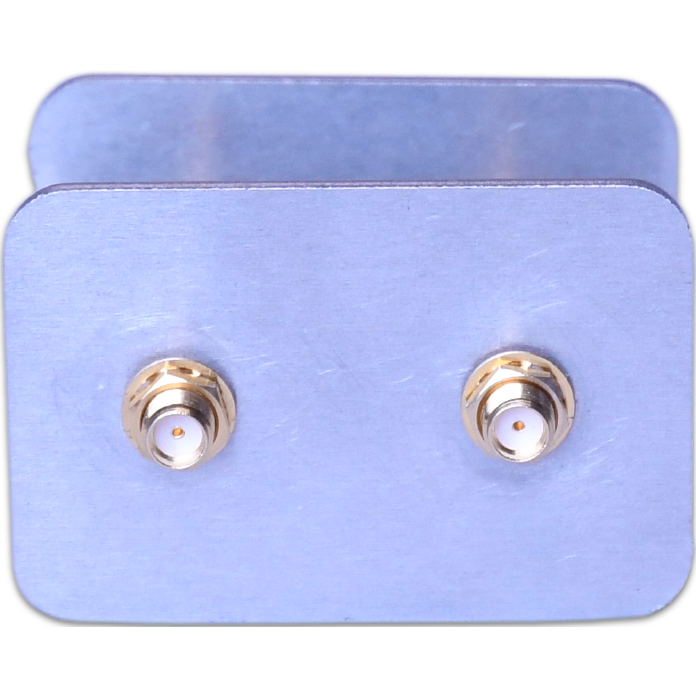

Dual SMA Female Wall Plate Kit Designed for Externally Mounting on Caravans/RVs



Key Features



  • Designed to neaten up the Overland Kit Installations

  • Allows antenna cable to be fed through a wall via use of the wall plate

  • Designed for MIMO antennas

  • Two SMA Female connectors on front and rear of plate.

  • Available with 1 or 2 Mounting Plates

  • Available with SMA Male Extension Cables

  • Available with screw on Dust Caps

  • If retrofitting and you have TS9 -SMA Female patch leads you will require SMA -M to SMA-M Adaptors

  • https://www.telcoantennas.com.au/sma-male-to-sma-male-adapter



Usage



  • The overall Length of the Bulkhead is 52mm Bulkhead Length

  • The Stainless Steel Plate Thickness is 3mm

  • The SMA Female Bulkhead requires a 6mm Hole to Passthrough

  • We do recommend using Silicone around the Plate to ensure a watertight fit

  • Easy to install, no soldering required



(DUALSMA-WP-RV)

SKU DUALSMA-WP-RV
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.110m
Shipping Cubic 0.000275000m3
