FME Male to FME Female Bulkhead Adaptor

FME Plug to FME Jack

FME Pin to FME Socket



Key Features

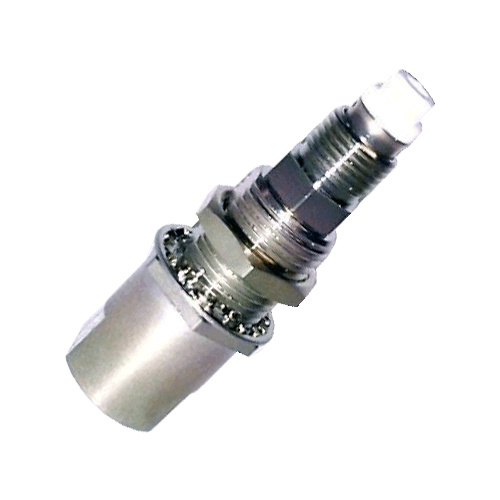

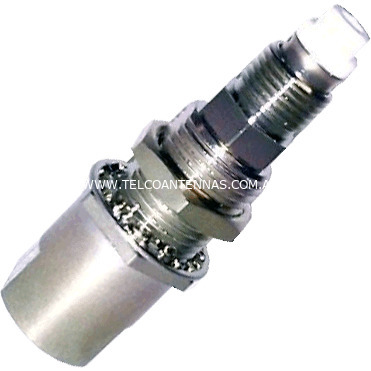

  • Panel mount FME bulkhead

  • Hex nut, washer included

  • 31mm length.



What is a bulkhead?



  • A coaxial bulkhead connector is a special type of inter/intra series adaptor that allows a connection through a surface

  • Bulkheads are commonly used in conjunction with wallplates so that a cable can be attached either side of the wallplate - i.e. on either end of the bulkhead - for a neat and professional looking installation

  • One side of the bulkhead has a flange for a flush mount against the surface, and the other has a hex-nut, gasket, and washer for securing the bulkhead in place.



Specifications



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-3GHz

  • Working Voltage: 500V RMS

  • Withstand Voltage: 1000V RMS

  • Insertion Loss: <0.2dB/3GHz

  • VSWR: <1.25:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel

  • Pin/Socket Contact: Brass/Beryllium

  • Pin/Socket Plating: Gold/Gold

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C



Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



(FMEF-FMEM-BLKHD)

SKU FMEF-FMEM-BLKHD
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
