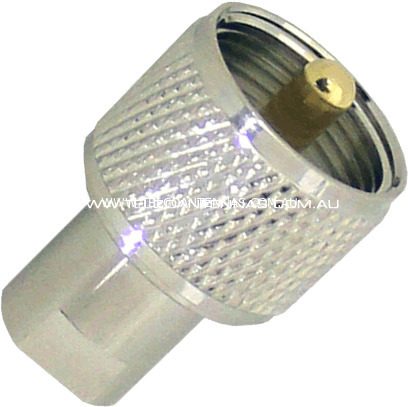

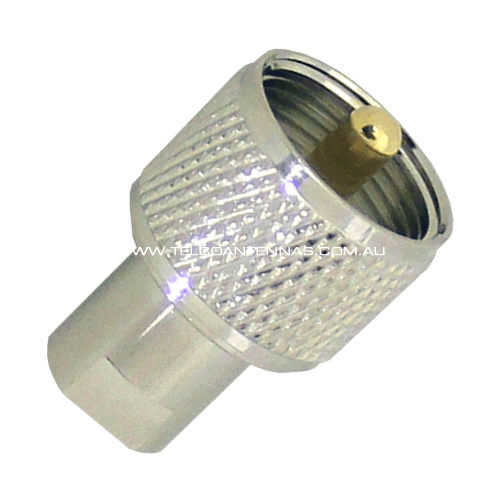

UHF PL259 Male to FME Male Connector

PL259 to FME Male

UHF Plug to FME Plug

UHF Pin to FME Pin



What is an adaptor?



A coaxial adaptor can be either inter-series or intra-series.


  • An inter-series (also known as between-series) adaptor is used to convert one type of connector into a different series connector.

  • An intra-series (also known as within-series) adaptor is used to connect two devices or cables of the same series, cable joiners and bulkheads are the most common type of intra-series adaptors.





Specifications



Electrical Specifications



  • Resistance: 50Ω (variable)

  • Frequency Range: DC-300MHz

  • Working Voltage: 500V RMS

  • Withstand Voltage: 1500V RMS

  • Insertion Loss: <0.2dB/3GHz

  • VSWR: <1.22:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel

  • Pin/Socket Contact: Brass/Beryllium

  • Pin/Socket Plating: Gold/Gold

  • Insulator: PTFE

  • Operating Temperature: -40° to 85° C

  • MIL-C-39012

  • IEC 60169-12

  • GB/T 15888



Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



(FMEM-UHFM-AD)

SKU FMEM-UHFM-AD
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
