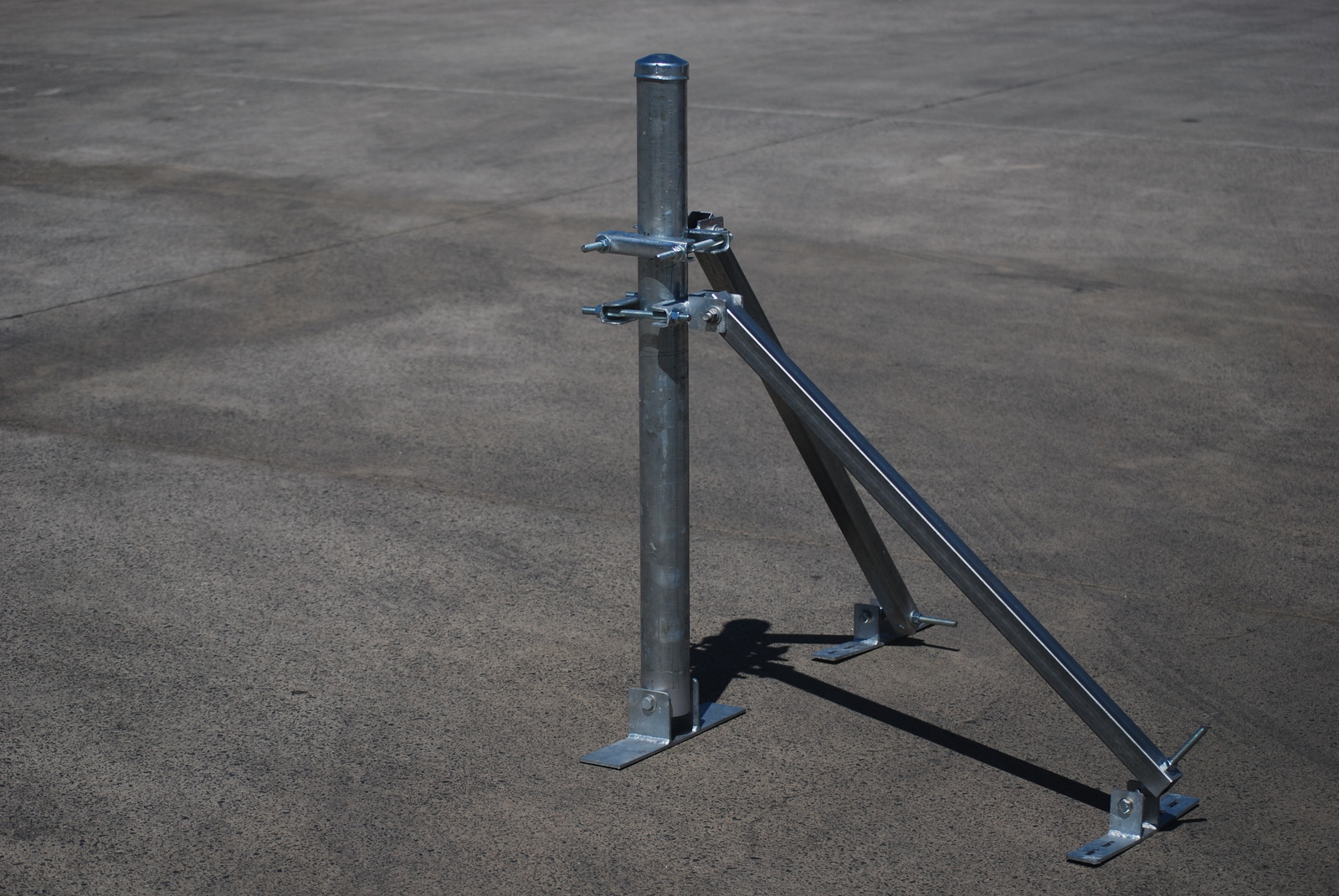

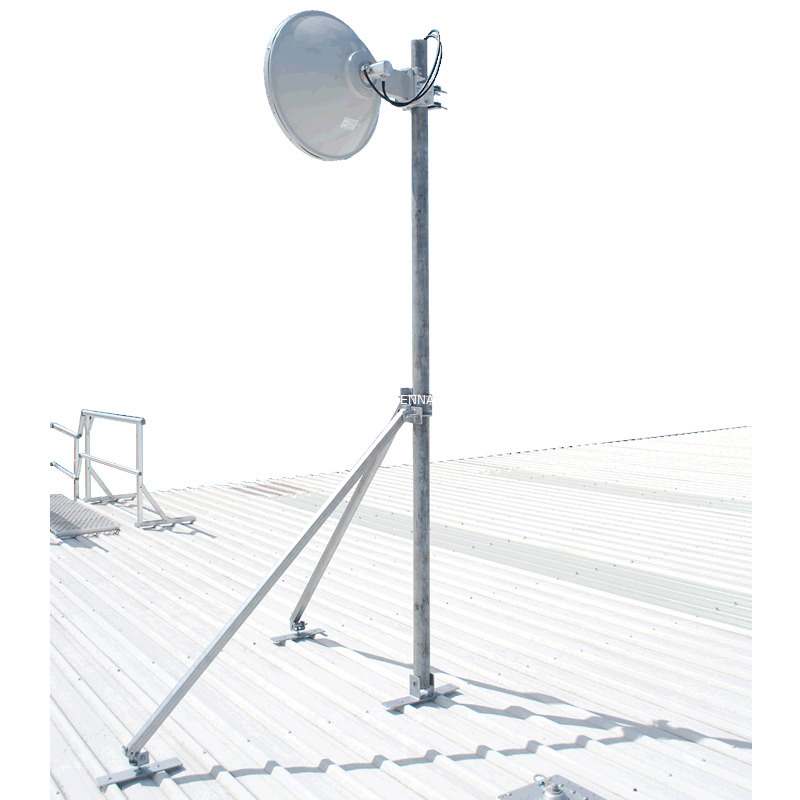

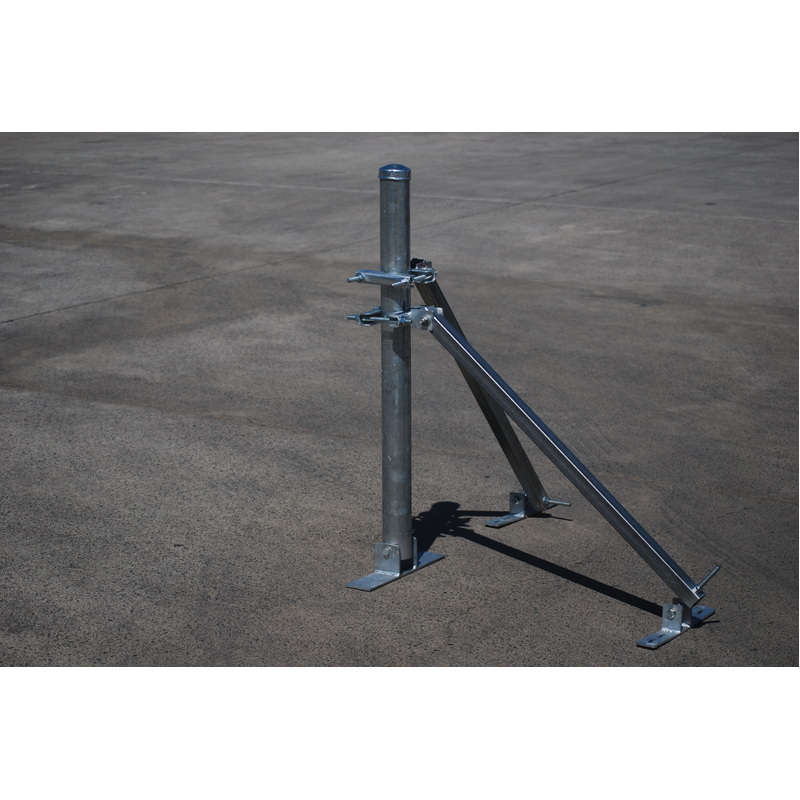

Galvanised Heavy Duty Microwave Antenna Mount - 75mm Mast - 1-3m



Key Features



  • This tripod is engineer certified for survivability to support dish antennas up to 900mm in diameter in 100km/h winds

  • Fabricated in our workshop, our galvanised tripod antenna mounts are specifically designed to meet a demand for large, heavy duty roof mounts that can be customised to suit any application

  • The kit includes a 75mm outside diameter mast and two 40mm box section stay bars.












Engineer approved recommendation

  • Due to the complicated nature of tower infrastructure, it can prove invaluable to have an engineer approved recommendation for solutions that will accommodate your particular project.

  • We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report that you can use for the planning of communication assets.

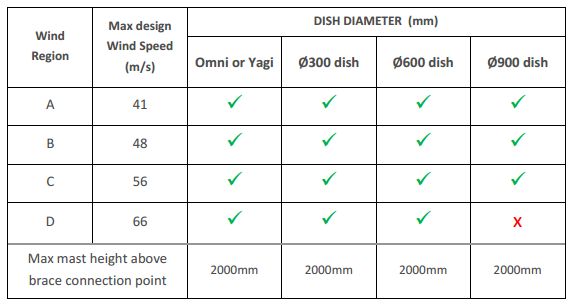

Matrix

This matrix provides selections based on the maximum antenna dish diameter and wind region within Australia.



Note: This antenna mount is unsuitable for microwave dishes generating lateral deflections at the top of the mast exceeding 50mm - or - generated wind forces on the mast that over stress the mast member. These applications are marked X in the matrix.





Please contact us for:
  • maximum dish size, heights and bracing information for your application

  • lead times for masts and towers.

  • Please Note all items over 3m require manual freight calculation



(TF-RM-MSM)

SKU TF-RM-MSM
Shipping Weight 30.0000kg
Shipping Width 0.150m
Shipping Height 3.050m
Shipping Length 0.100m
Shipping Cubic 0.045750000m3
