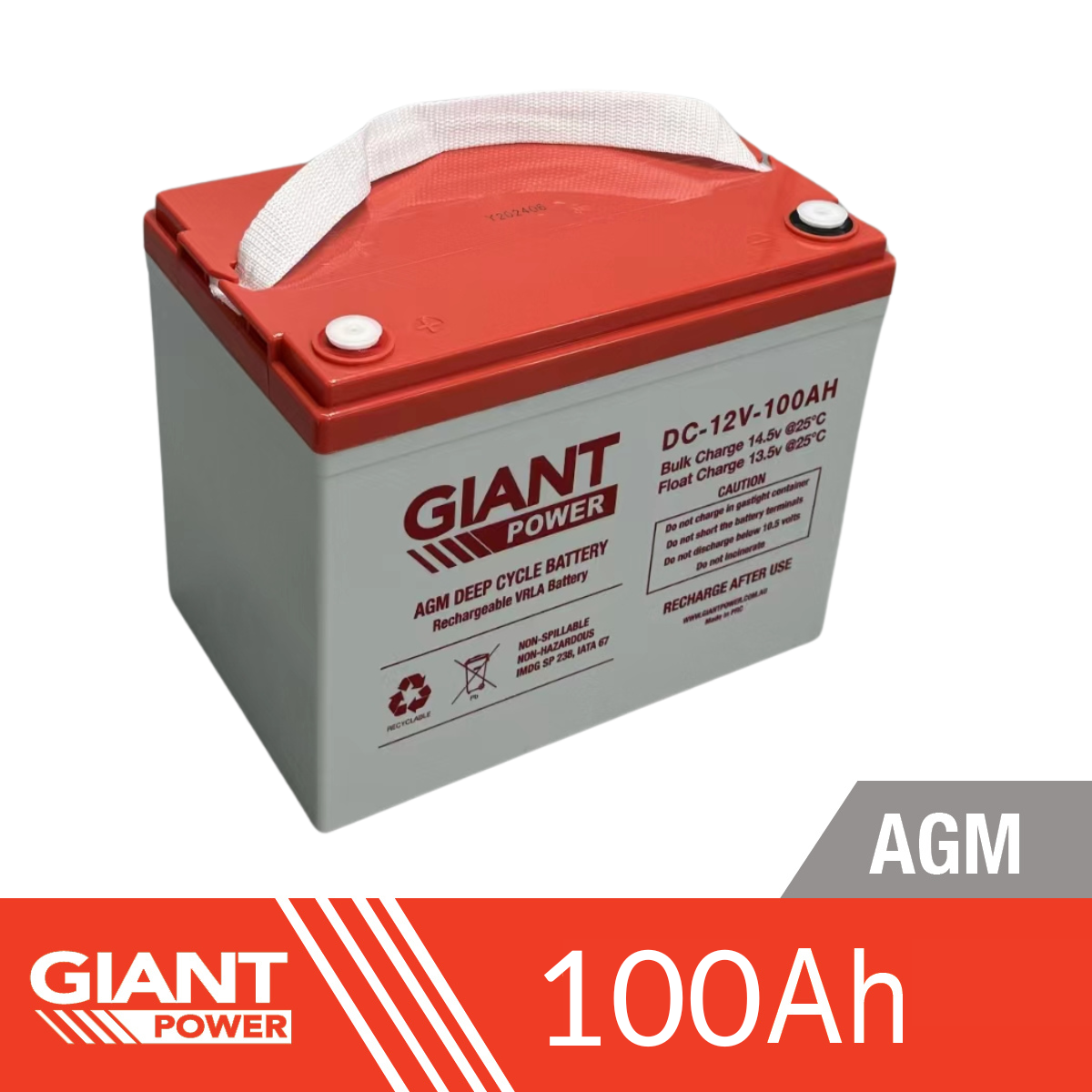

Giant 100aH 12V AGM Deep Cycle Battery



Key Features



  • This 100H Battery will support most 12 Volt setups and power requirements our customers ask for
  • Industry leading 5 year warranty.
  • 12 Year designed service life.
  • Bolt terminal connections.
  • Australian owned and operated company.

Power your applications with confidence using our 100AH Absorbent Glass Mat (AGM) Battery. Known for its exceptional reliability and performance, this AGM battery is designed for a wide range of uses, its maintenance-free design and deep cycle capabilities make it a dependable choice for both everyday and emergency power needs.

Giant Power 100AH AGM batteries are designed for a more efficient discharge recovery. Faster recharging technology and battery protection deliver reliable performance. The sealed structure, copper alloy terminals and factory sealed lid allow no leakage of any caustic chemicals, and ABS intrusion-safe body and heavy-duty posts ensure reliable performance against any drastic vibrations shocks or outer wreckage. This maintenance-free battery features longer shelf-life and excellent water retention performance.

When you need a long lasting battery that can withstand the tough Australian conditions, deep cycle AGM batteries are a great choice. AGM Batteries use glass mat technology within the battery to absorb the acid, as opposed to standard flooded batteries where the acid is free flowing. This provides several key advantages over standard batteries, such as allowing the batteries to be 100% sealed, non-gassing and maintenance free (batteries will never leak acid, even if damaged), and providing a significantly longer service and cyclic life (up to 2-3x longer than standard batteries). AGM batteries can last twice as long as a standard lead acid battery, making them more reliable and durable. This high capacity powerful battery provides a great response to load, and can handle constant discharge or occasional use with very little need to recharge. Ideal for a range of activities, including fishing trips, providing power whilst camping, providing power in a caravan or motorhome, or even for supporting a solar or wind energy system, the uses are endless!

Giant Power 12V 100AH AGM Deep Cycle Battery
Nominal Voltage 12V
Nominal Capacity (20HR) 100.0 AH

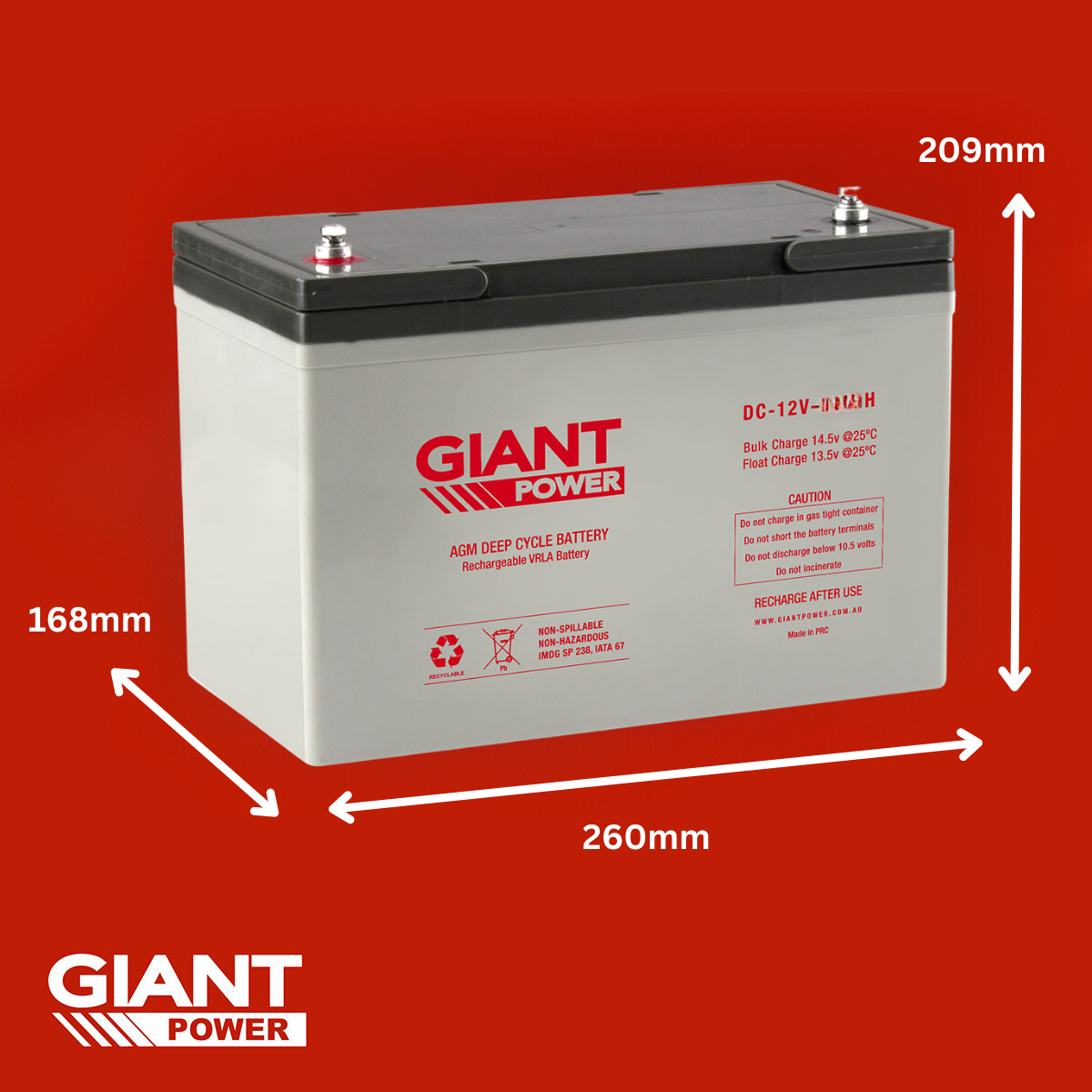

Dimension Length: 260 ±3mm
Width: 168 ±2mm
Container Height: 209±2mm
Total Height (with Terminal): 209 ±2mm
Approx Weight Approx 28.2 Kg
Terminal M6
Container Material ABS
Rated Capacity 100.0 AH/7.0A (20hr,1.80V/cell,25°C)
Max. Discharge Current 1200A (5s)
Internal Resistance Approx 4.9mΩ
Operating Temp.Range Discharge : -15 ~ 50oC (5 ~ 122oF)
Charge : 0 ~ 40oC (32 ~ 104oF )
Storage : -15 ~ 40oC (5 ~ 104oF)
Nominal Operating Temp. Range 25 ± 3°C (77 ± 5°F )
Bulk Charge Initial Charging Current less than 30A.
Voltage 14.5V @ 25oC
Temp. Coefficient -30mV/oC
Float Charge No limit on Initial Charging Current
Voltage 13.5V @ 25oC
Temp. Coefficient -20mV/oC
Capacity affected by Temperature 40oC (104oF) 103%
25oC ( 77oF ) 100%
0oC ( 32oF ) 86%
Self Discharge Giant Power Deep Cycle AGM batteries may be stored for up to 6 months at 25oC(77oF) and then a freshening charge is required. For higher temperatures the time interval will be shorter.

Warranty




(DC-12V-100AH)

SKU DC-12V-100AH
Brand Giant
Shipping Weight 73.0000kg
Shipping Width 0.550m
Shipping Height 0.270m
Shipping Length 0.300m
Shipping Cubic 0.044550000m3
