Giant 140ah 12V Deep Cycle Battery



Key Features



  • This 140AH Battery will support most 12 Volt setups and power requirements our customers ask for
  • This 140Ah is compatible with most major battery boxes.
  • Industry leading 5 year warranty.
  • 12 Year designed service life.
  • Bolt terminal connections.
  • Australian owned and operated company.

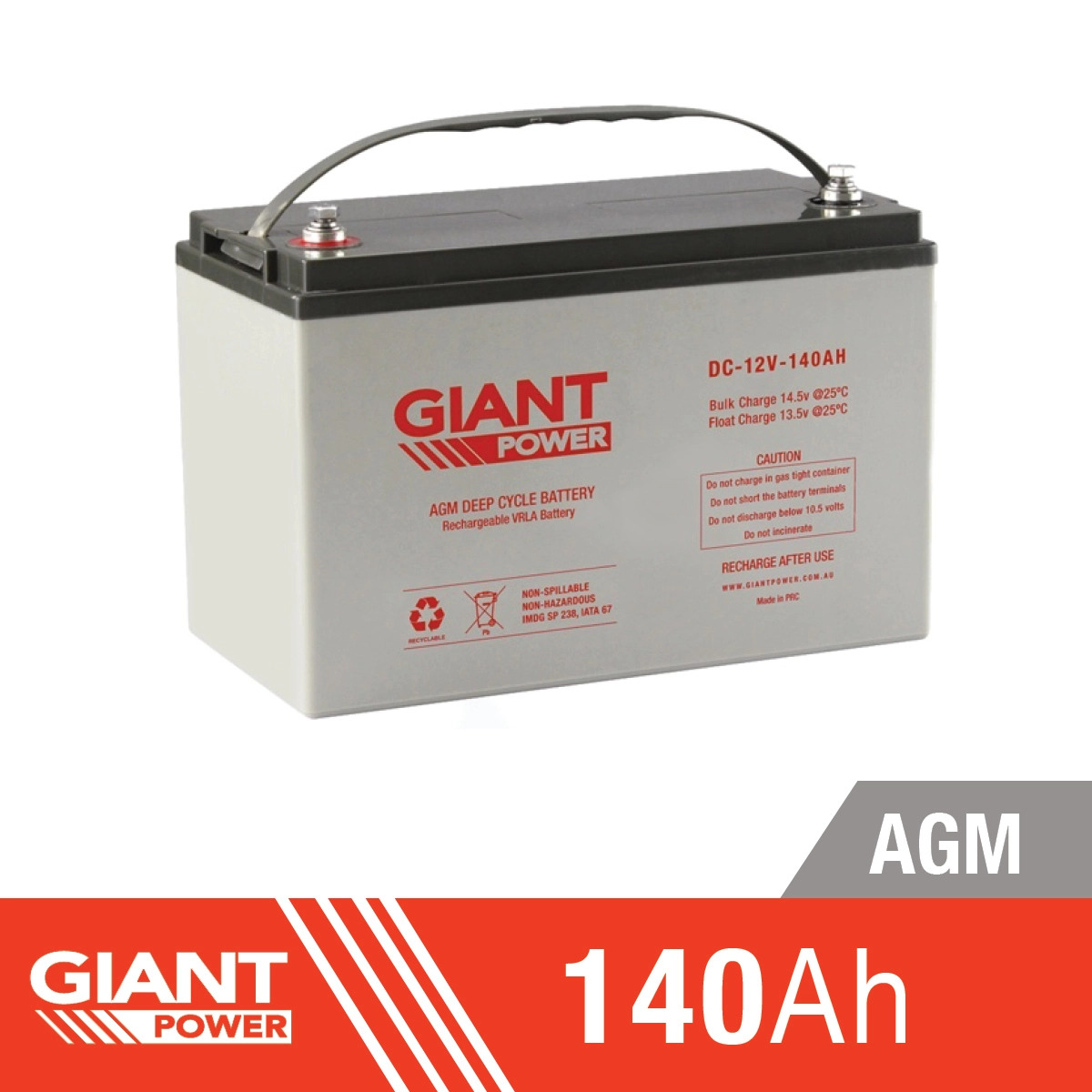

Giant Power 12V 140AH AGM Deep Cycle Battery
Nominal Voltage 12V
Nominal Capacity (20HR) 140.0 AH
Dimension Length: 330 ±3mm (12.99 inches)
Width: 173 ±2mm (6.81 inches)
Container Height: 212 ±2mm (8.35 inches)
Total Height (with Terminal): 220 ±2mm (8.66 inches)
Approx Weight Approx 32.2 Kg
Terminal T11
Container Material ABS
Rated Capacity 140.0 AH/7.0A (20hr,1.80V/cell,25°C)
Max. Discharge Current 1200A (5s)
Internal Resistance Approx 4.9mΩ
Operating Temp.Range Discharge : -15 ~ 50oC (5 ~ 122oF)
Charge : 0 ~ 40oC (32 ~ 104oF )
Storage : -15 ~ 40oC (5 ~ 104oF)
Nominal Operating Temp. Range 25 ± 3°C (77 ± 5°F )
Bulk Charge Initial Charging Current less than 30A.
Voltage 14.5V @ 25oC
Temp. Coefficient -30mV/oC
Float Charge No limit on Initial Charging Current
Voltage 13.5V @ 25oC
Temp. Coefficient -20mV/oC
Capacity affected by Temperature 40oC (104oF) 103%
25oC ( 77oF ) 100%
0oC ( 32oF ) 86%
Self Discharge Giant Power Deep Cycle AGM batteries may be stored for up to 6 months at 25oC(77oF) and then a freshening charge is required. For higher temperatures the time interval will be shorter.

Warranty


5 year battery warranty - 12 month full replacement warranty with 48 month pro-rata replacement warranty

For more information, please read our full warranty policy
