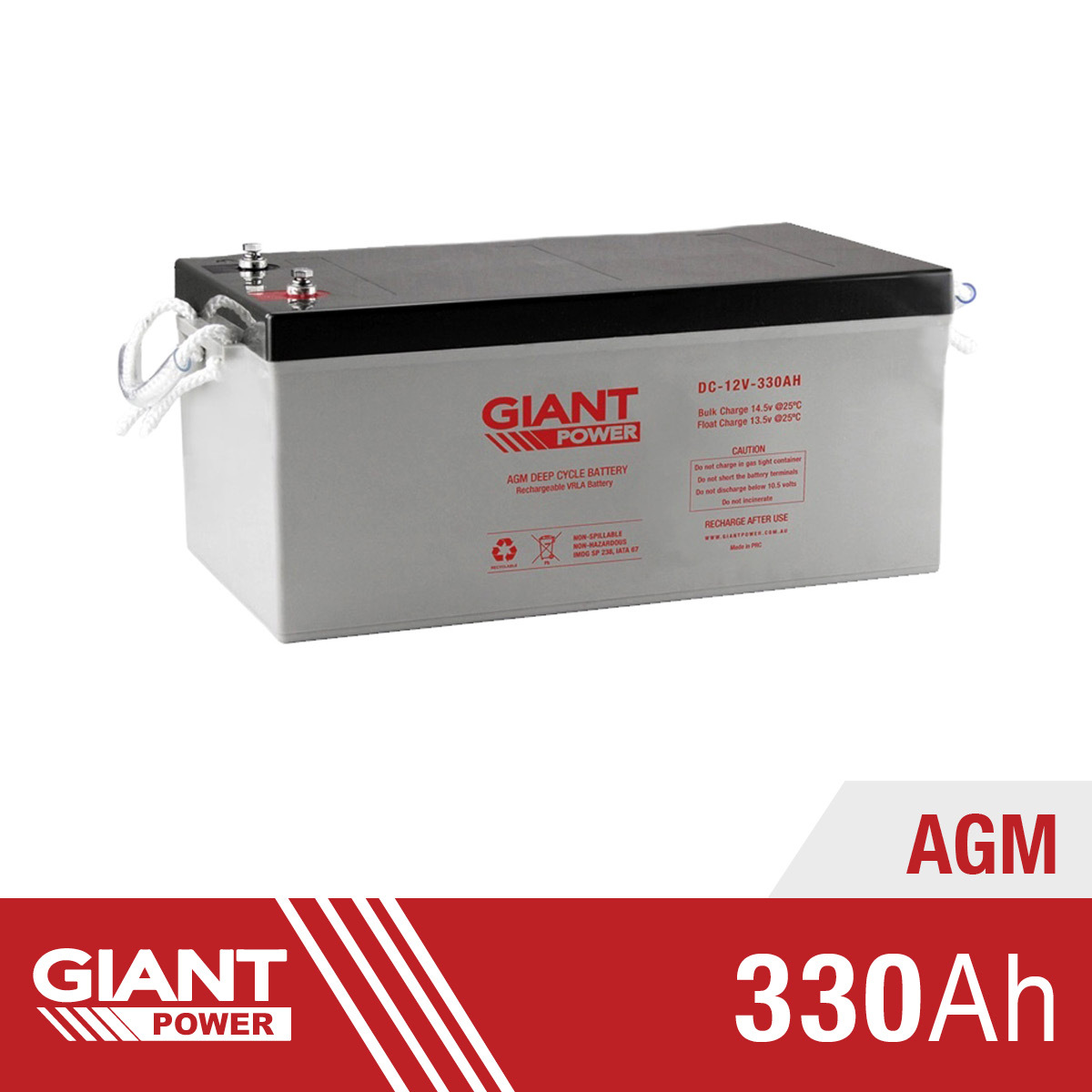

Giant 330aH 12V AGM Deep Cycle Battery



Key Features



  • This 330H Battery will support most 12 Volt setups and power requirements our customers ask for
  • Industry leading 5 year warranty.
  • 12 Year designed service life.
  • Bolt terminal connections.
  • Australian owned and operated company.

For those who demand maximum power and unfailing performance, this 330AH Deep Cycle Battery is perfect! This 330AH battery will give you a huge possible power output, low self-discharge capacity and maintenance free construction. Deep cycle AGM Batteries are perfect for applications that require either frequent cycling or renewable power storage. Common uses include running appliances when camping away from power, using with a solar panel for charging, running in a dual battery system in a vehicle, or providing safe power on a boat. This battery is ideal for the consumer looking to set up a large scale power supply or is the perfect solution for large portable power storage.

When you need a long lasting battery that can withstand the tough Australian conditions, deep cycle AGM batteries are a great choice. AGM Batteries use glass mat technology within the battery to absorb the acid, as opposed to standard flooded batteries where the acid is free flowing. This provides several key advantages over standard batteries, such as allowing the batteries to be 100% sealed, non-gassing and maintenance free (batteries will never leak acid, even if damaged), and providing a significantly longer service and cyclic life (up to 2-3x longer than standard batteries). AGM batteries can last twice as long as a standard lead acid battery, making them more reliable and durable. This high capacity powerful battery provides a great response to load, and can handle constant discharge or occasional use with very little need to recharge. Ideal for a range of activities, including fishing trips, providing power whilst camping, providing power in a caravan or motorhome, or even for supporting a solar or wind energy system, the uses are endless!

Specifications

Nominal Voltage 12V
Nominal Capacity (20HR) 330AH

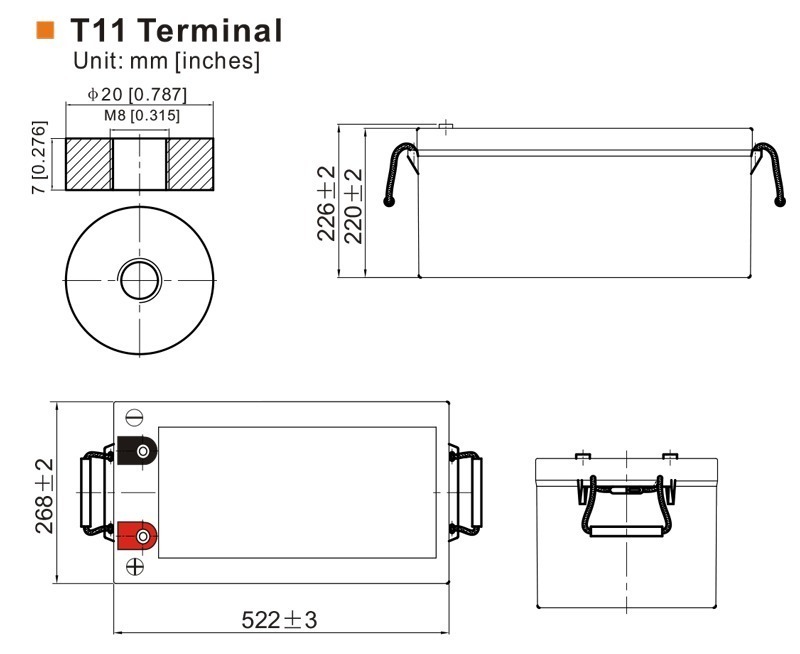

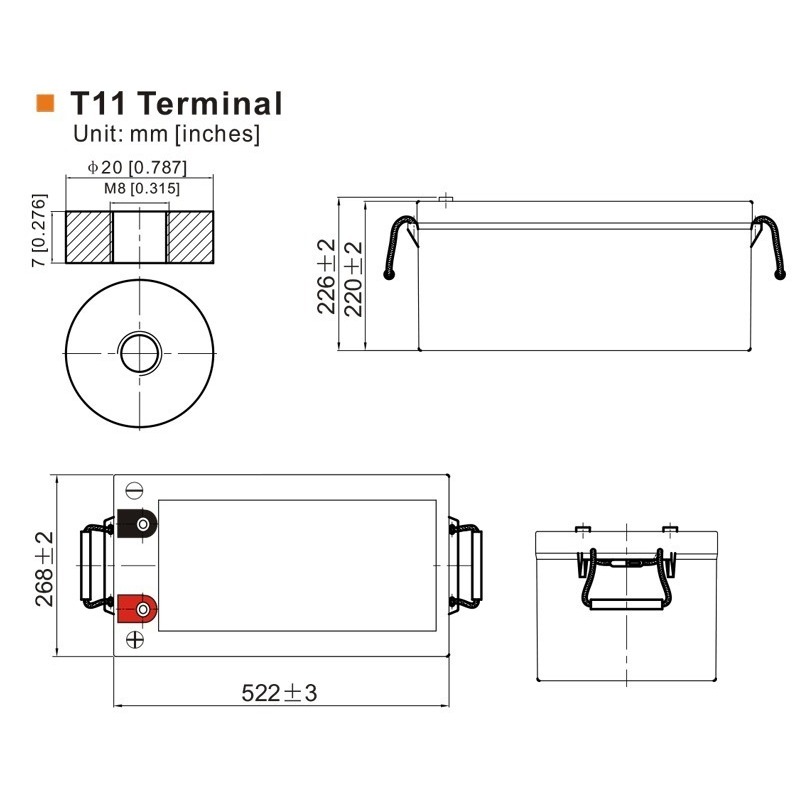

Dimension Length: 522 ±3mm (20.55 inches)
Width: 268 ±2mm (10.55inches)
Container Height: 220 ±2mm (8.66 inches)
Total Height (with Terminal): 226 ±2mm (8.90 inches)
Approx Weight Approx 73.0 Kg
Terminal T11
Container Material ABS
Rated Capacity 330.0 AH/16.5A (20hr,1.80V/cell,25°C)
Max. Discharge Current 2500A (5s)
Internal Resistance Approx 2.5m?
Operating Temp.Range Discharge : -15 ~ 50oC (5 ~ 122oF)
Charge : 0 ~ 40oC (32 ~ 104oF )
Storage : -15 ~ 40oC (5 ~ 104oF)
Nominal Operating Temp. Range 25 ± 3°C (77 ± 5°F )
Bulk Charge Initial Charging Current less than 75A.
Voltage 14.5V @ 25oC
Temp. Coefficient -30mV/oC
Float Charge No limit on Initial Charging Current
Voltage 13.5V @ 25oC
Temp. Coefficient -20mV/oC
Capacity affected by Temperature 40oC (104oF) 103%
25oC ( 77oF ) 100%
0oC ( 32oF ) 86%
Self Discharge Giant Power Deep Cycle AGM batteries may be stored for up to 6 months at 25oC(77oF) and then a freshening charge is required. For higher temperatures the time interval will be shorter.

Warranty




(DC-12V-330AH)

SKU DC-12V-330AH
Brand Concorde
Shipping Weight 73.0000kg
Shipping Width 0.550m
Shipping Height 0.270m
Shipping Length 0.300m
Shipping Cubic 0.044550000m3
