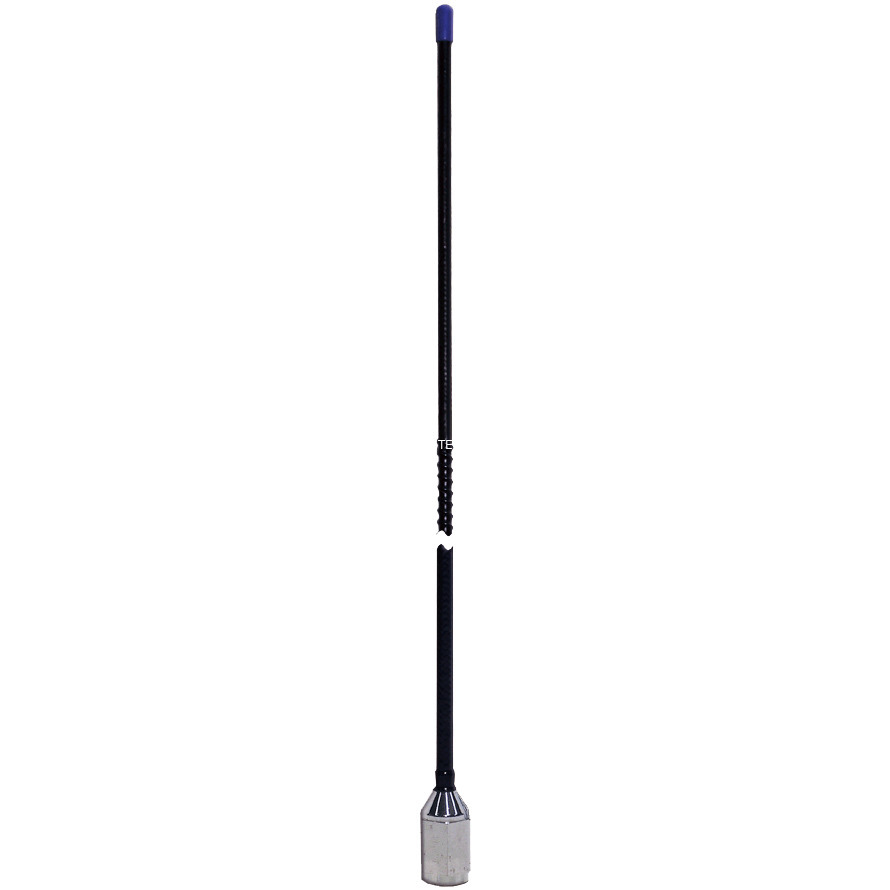

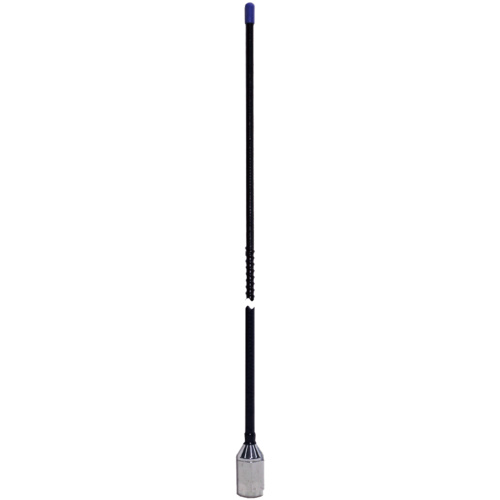

GME AE4001 - 8.1dBi 477MHz Antenna



Key Features



  • Full UHF 477MHz 80 channel radio band

  • Ground plane dependent - 8.1dBi

  • Fibreglass with braded/precision wound copper element, black heat shrink and chrome plated ferrule

  • Factory tuned for 477 MHz and suitable for all Uniden, GME, Oricom and Vertex UHF CB radios

  • 100% Australian made.



Usage



  • Ground plane dependent mounting

  • This GME antenna needs a large uniform metal surface beneath the radiating elements to perform correctl - this is referred to as a ‘ground plane’

  • The best position to install this antenna is in the centre of a metal roof, however, if this is not possible, then installation on a bull bar or mirror mount is often necessary. In this case a ‘ground plane independent’ antenna should be used to give the antenna its desired radiating pattern without a metal ground plane.



Specifications / Frequency



Electrical Specifications



  • Frequency Range: 476-477MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: woven fibreglass with chrome ferrule

  • Length: 1200mm



GME UHF antenna and radio logo

(AE4006)

SKU AE4006
Shipping Weight 0.2700kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 2.120m
Shipping Cubic 0.005300000m3
