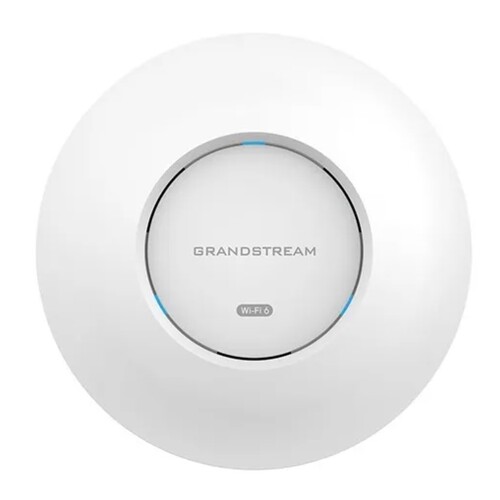

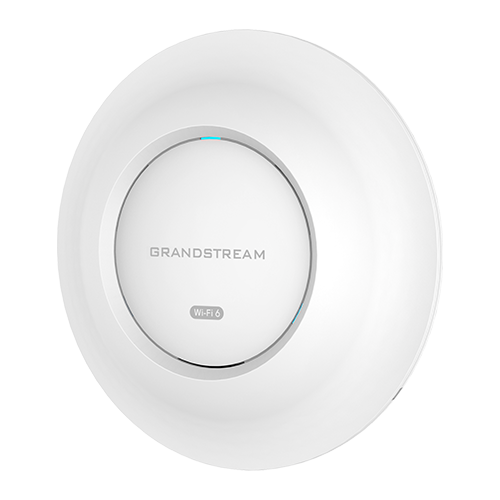

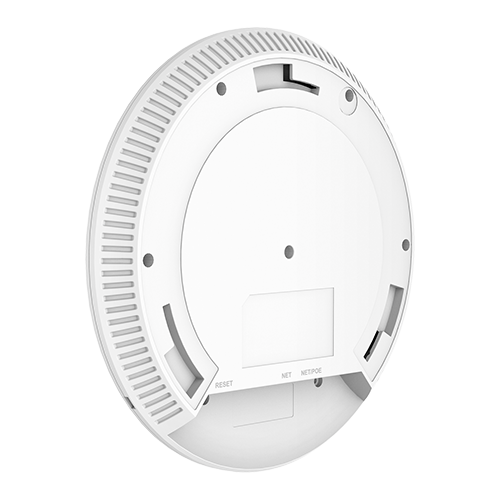

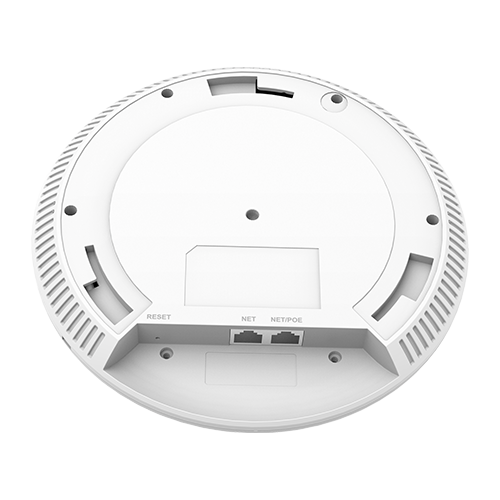

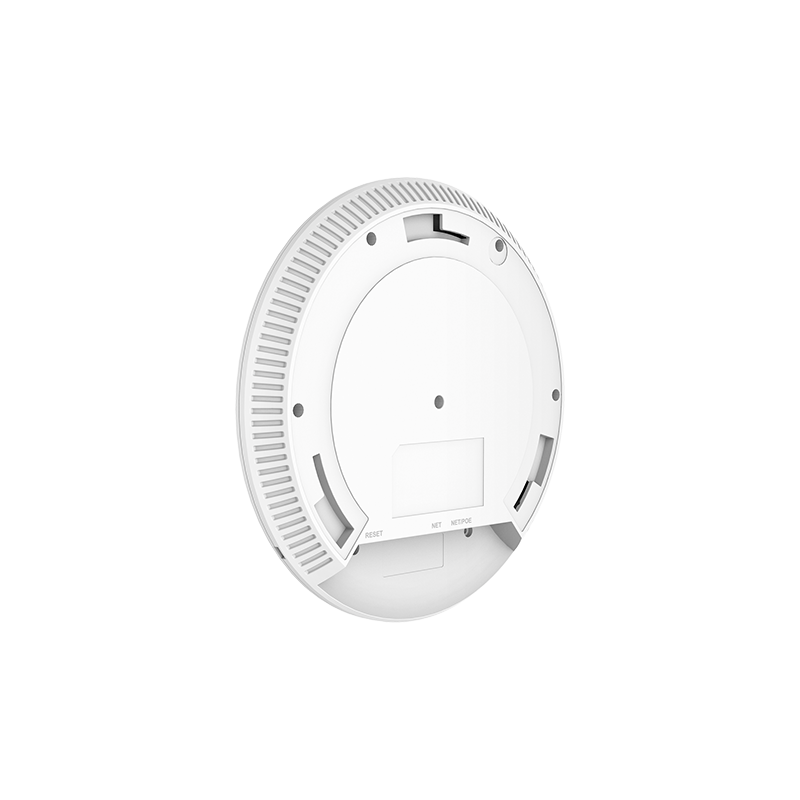

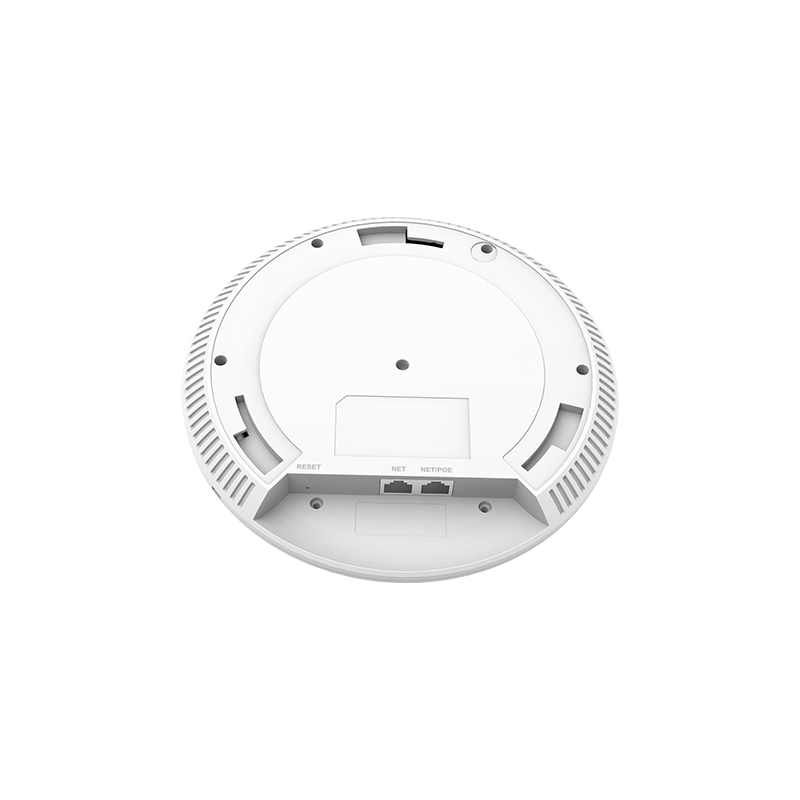

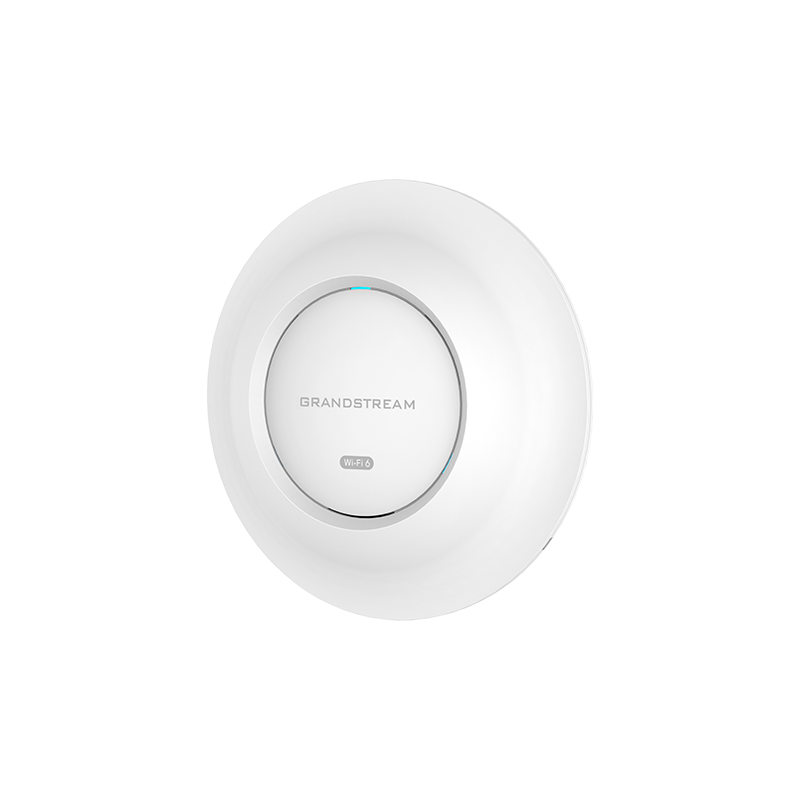

Grandstream 802.11ax 4x4:4 Wi-Fi 6 Access Point

Key features

• 3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput

• Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology

• Up to 175-meter coverage range

• Supports 750+ concurrent Wi-Fi client devices

• Includes 1x 1G Port and 1x 2.5G Port

• Advanced QoS to ensure real-time performance of low-latency applications

• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device

• Self power adaptation upon auto detection of PoE or PoE+

• Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Usage

• The GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations.

• The GWN7664 offers dual-band 4x4:4 MUMIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi cover age range.

• The GWN7664 is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before.

• It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi Aps.

• The GWN7664 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 750+ concurrent clients and dual Gigabit network ports with PoE/PoE+, the GWN7664 is an ideal Wi-Fi access point for business-grade wireless network deployments with medium-to-high user density.
