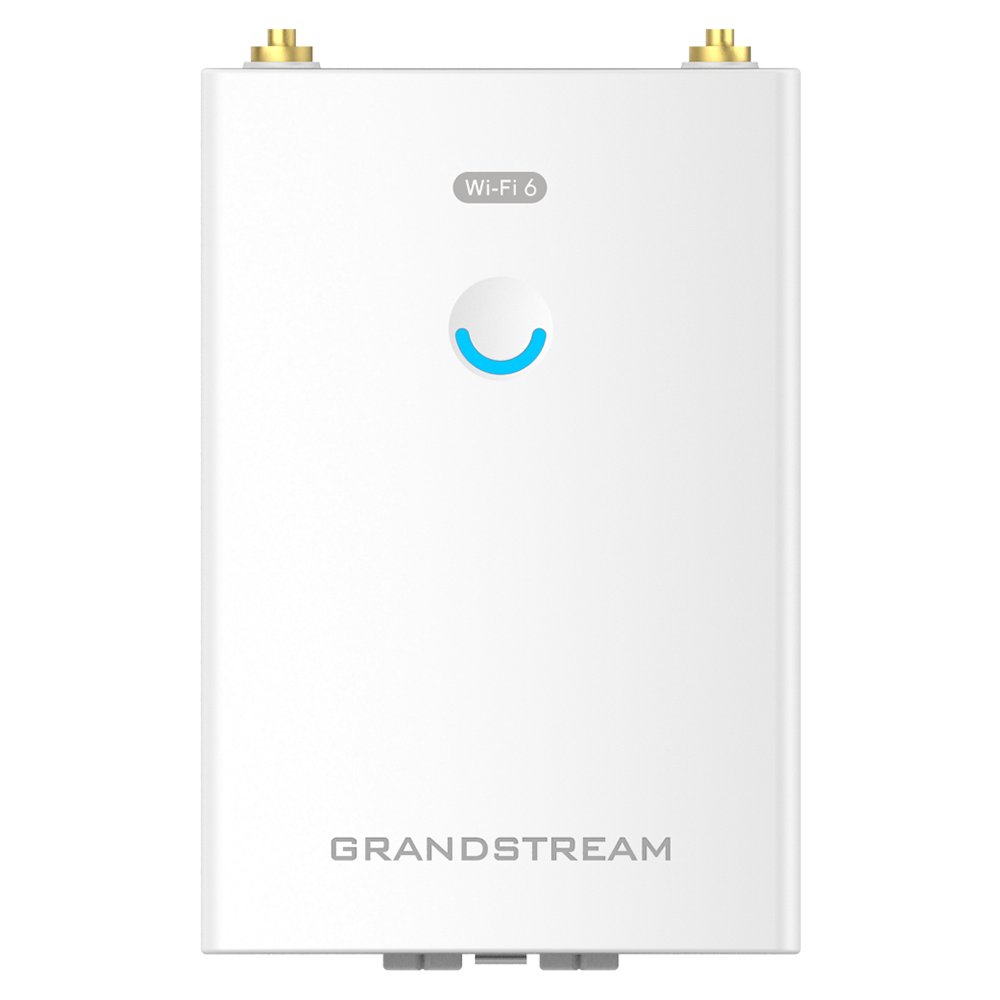

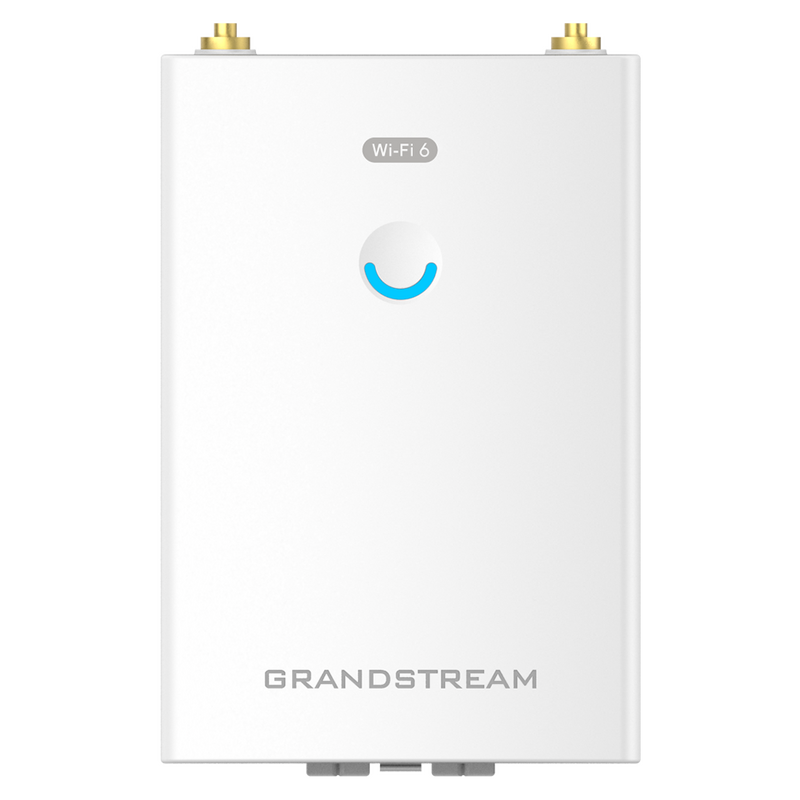

Grandstream Outdoor Long-Range Wi-Fi 6 Access Point

Key Features

• 1.77Gbps aggregate wireless throughput and2x Gigabit Ethernet ports

• Dual-band 2×2:2 MU- MIMO with DL/UL OFDMA technology

• Self power adaptation upon auto detection of PoE or PoE+

• Support 500+ concurrent Wi-Fi client devices

• Up to 250-meter coverage range

• Advanced QoS to ensure real-time performance of low-latency applications

• Anti-hacking secure boot and critical data/control lockdown

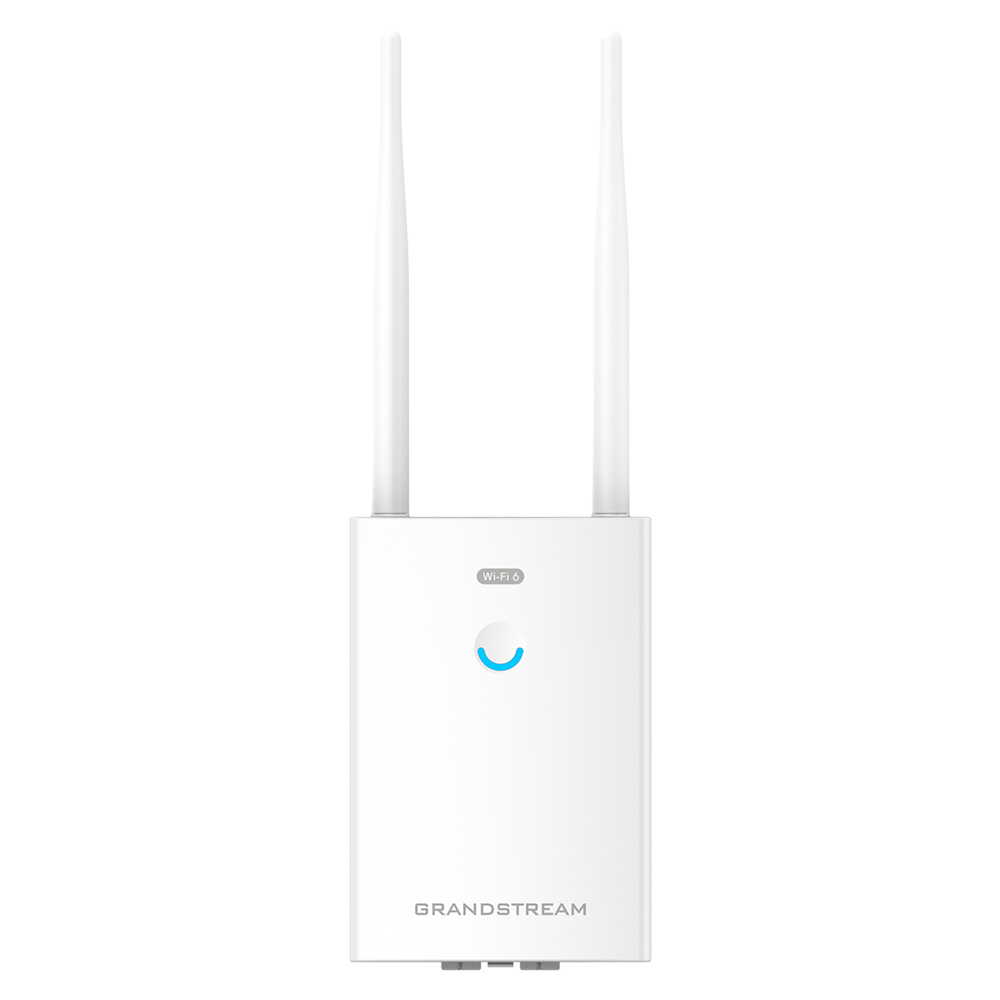

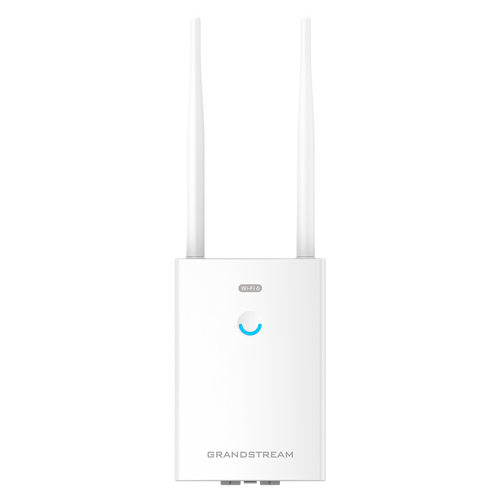

• Flexibility of 2 detachable/changeable antennas for different application scenarios

• Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GW Manager offers on-premise software AP management

Usage

• The GWN7660LR is a long-range 802.11ax Wi-Fi 6 access point designed to provide next generation network coverage for indoor and outdoor environments.

• It offers IP66 weatherproof certified casing, dual-band 2x2:2 MU-MIMO technology and a sophisticated antenna design for extended coverage range of up to 250 meters.

• The GWN7660LR is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before.

• The GWN7660LR also uses a controllerless network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi APs.

• The GWN7660LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones.

• With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+; the GWN7660LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, parks, hospitals, schools and more.
