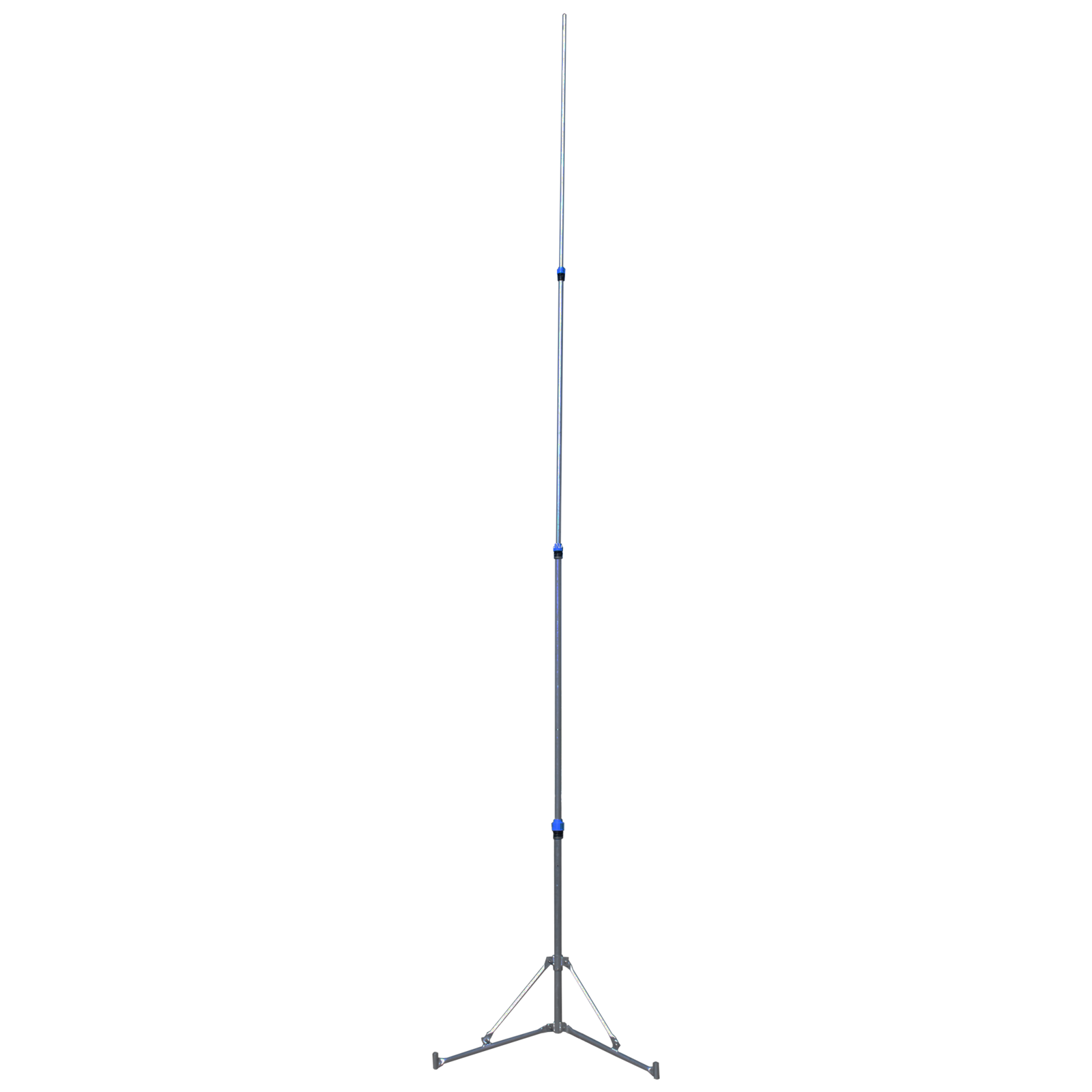

Collapsible Antenna Mounting Light Tripod with Light Collapsible Mast

Key Features

• Ideal for temporary setup in rough or uneven terrain

• Height adjustable from 1.4m to 6.0m high

• Tubular feet with mounting hole for pegging into ground

• Flat feet inserts available

• Stainless Steel high tensile bolts with nylon spacers

• 1370mm feet width apart

• Good quality product.

Usage

• This package comprises our Light Aluminium Tripod and light 5.7m Aluminium Telescopic Mast System

• We design and manufacture this high quality tripod mast system to fill the need for a durable heavy duty, lightweight free standing mast

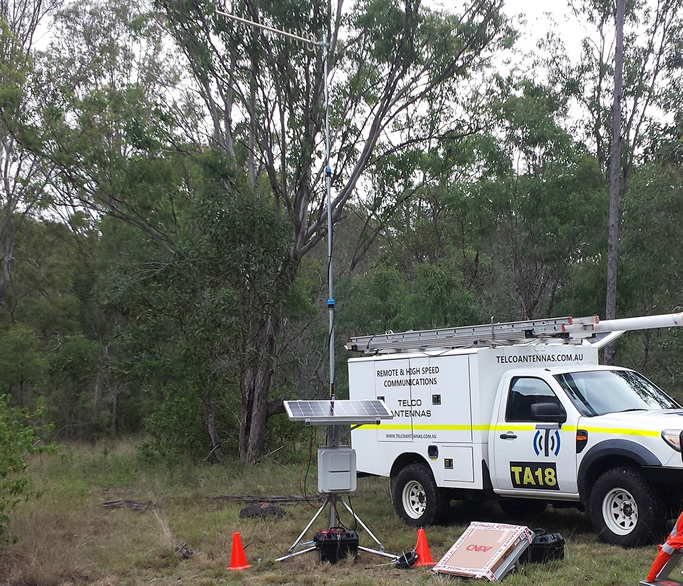

• The versatile design suits a multitude of purposes and has been deployed in a range of industries including:

  • Outside Broadcast (Radio/Television)

  • Emergency Services

  • Music Festivals

  • Surveying

  • Semi-permanent and temporary communications

  • Demountable and re-deployable telemetry.

• This tripod is engineer certified for survivability to support dish antennas up to 900mm in diameter in 100km/h winds.

Specifications

• The stand comes with a 10mm stainless safety stopper pin to insert into the extension shaft ensuring heavy loads will not drop down

• At only 5kg the system is light enough to carry anywhere, but strong enough to support 100kg man standing on the legs

• The 5.7m mast slots neatly into the tripod base and will extend your equipment up to 6m above ground (full extension may require guy wires in windy environments)

• As with all our in-house manufactured products, this product can be customised to suit any particular application

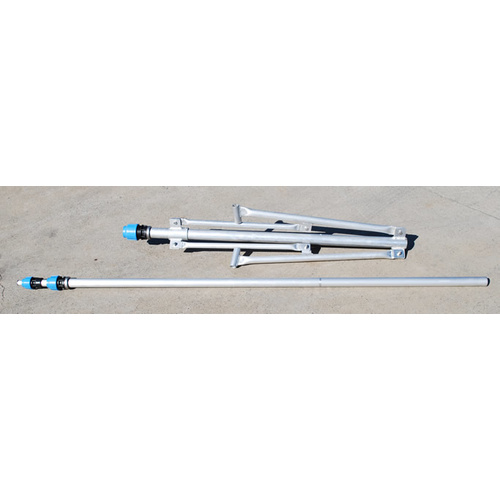

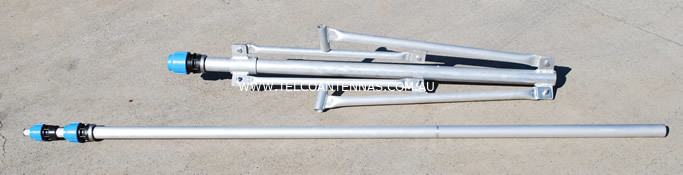

• When collasped, the overall dimensions of TF-TM-ATRI57 are:

  • Aluminium Tripod - 1300mm long x 300mm wide

  • Telescopic Mast - 2100mm long x 50mm wide.

Engineer approved recommendation

• Due to the complicated nature of tower infrastructure, it can prove invaluable to have an engineer approved recommendation for solutions that will accommodate your particular project

• We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report that you can use for the planning of communication assets.

Please contact us for:

• maximum dish size, heights and bracing information for your application

• lead times for masts and towers.

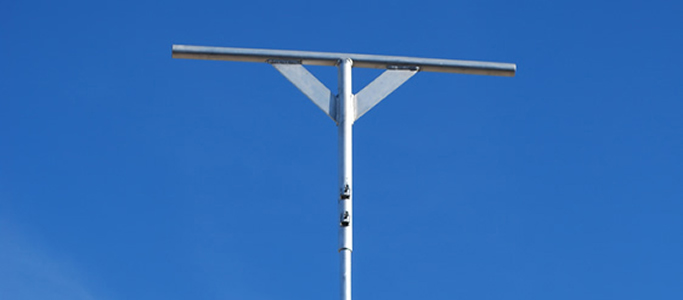

Above - Optional T-Piece Attachment.
