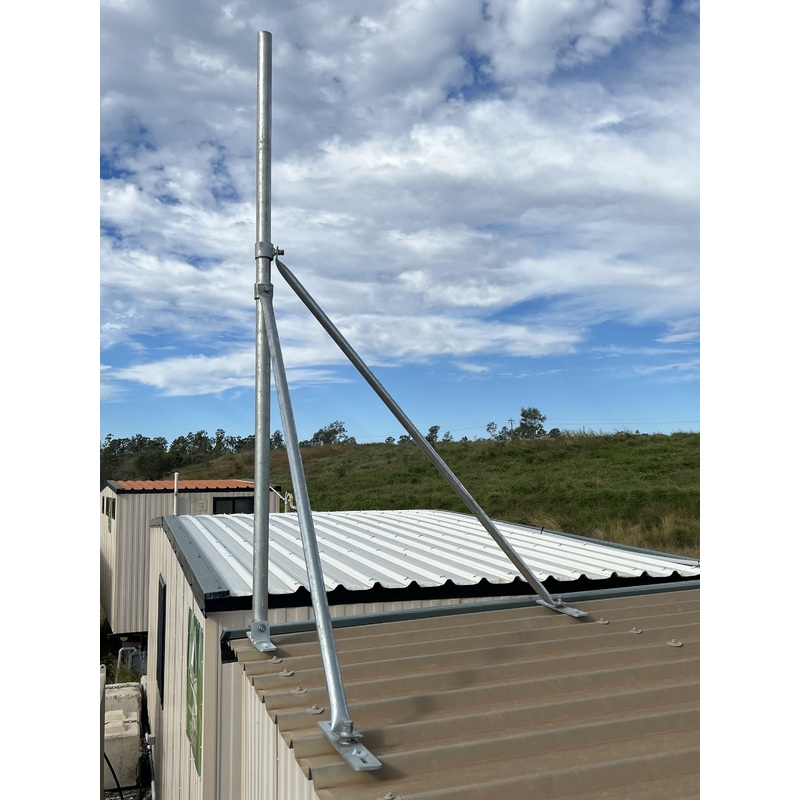

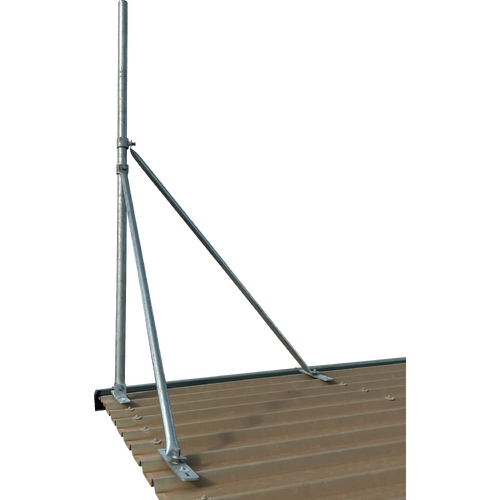

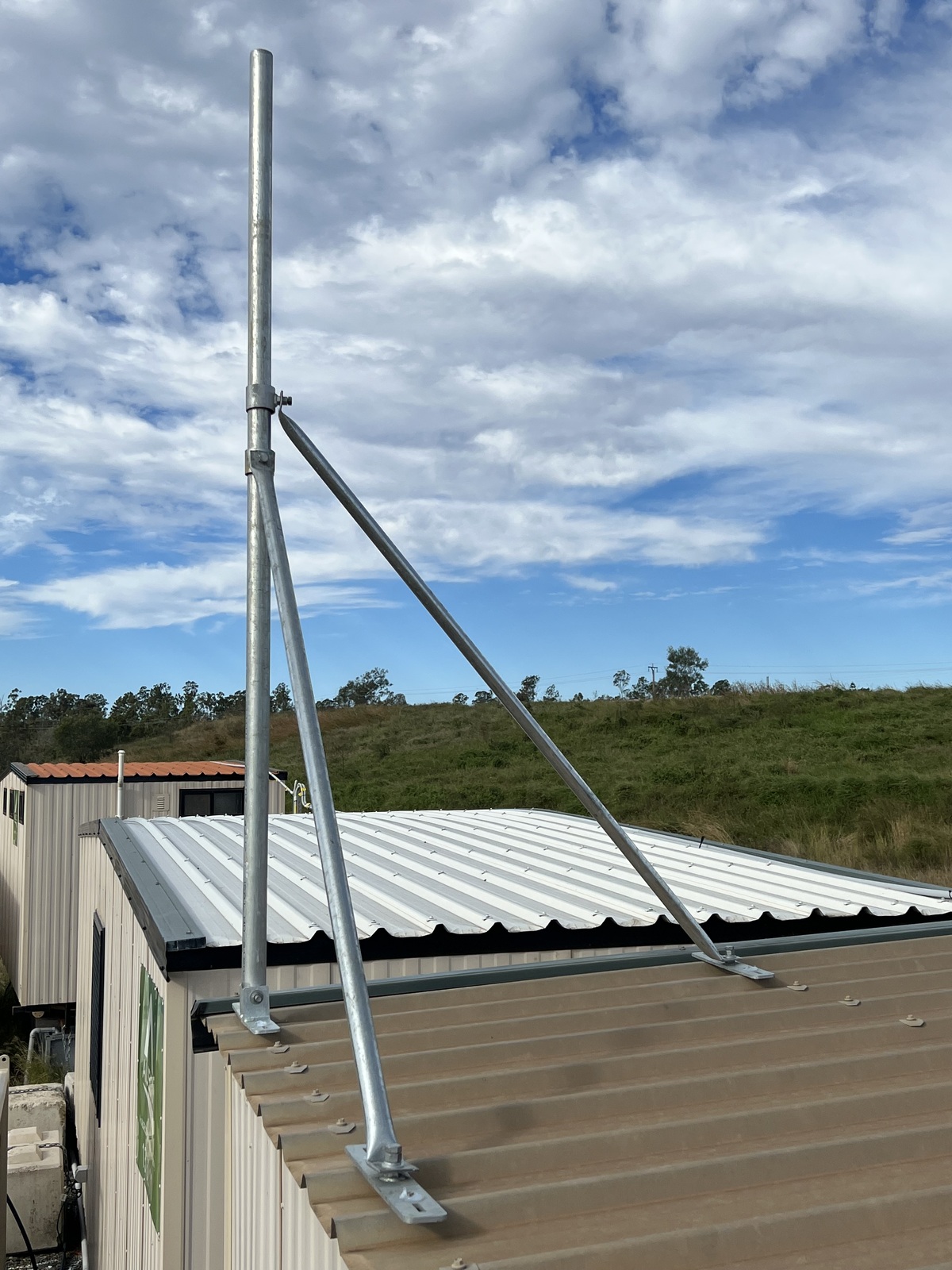

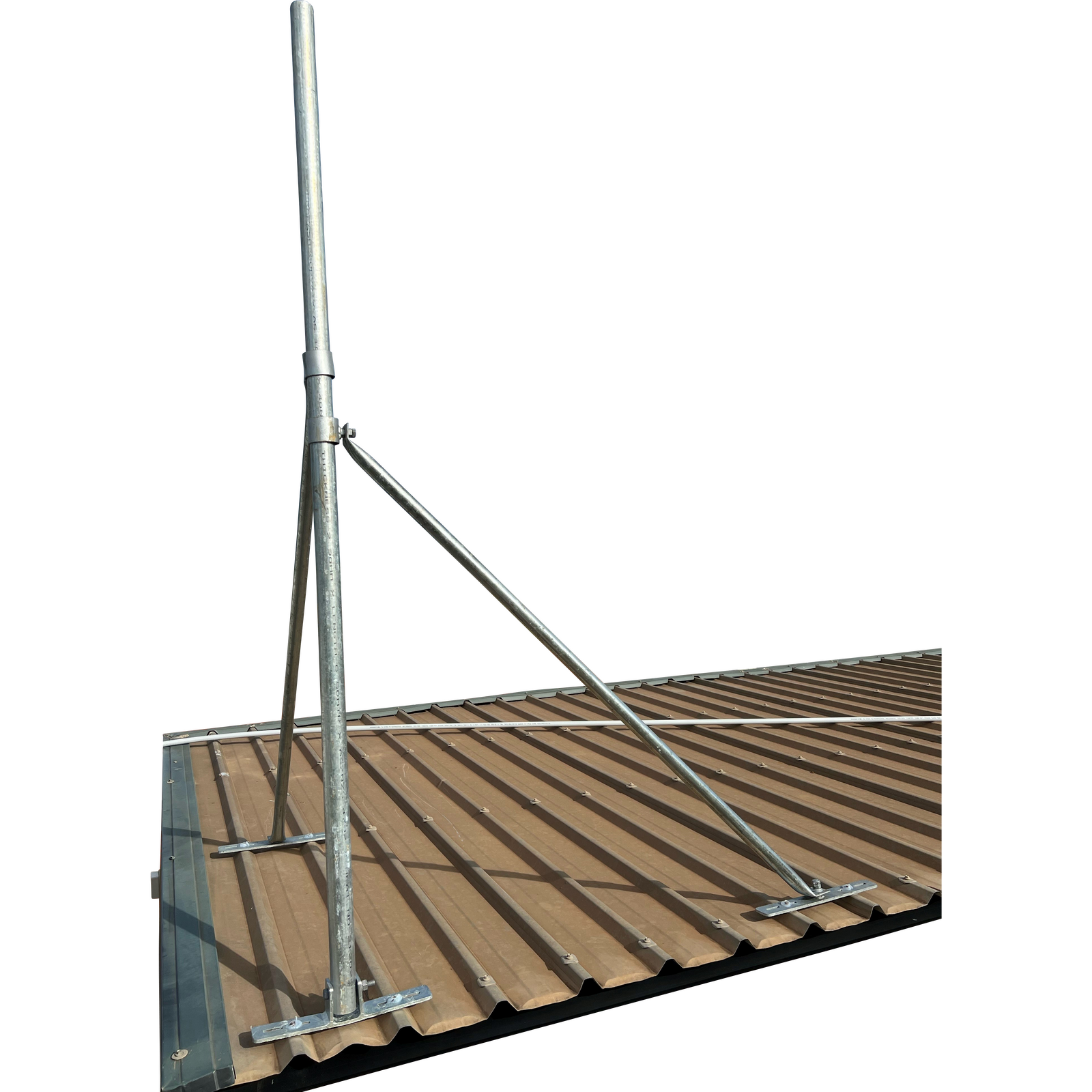

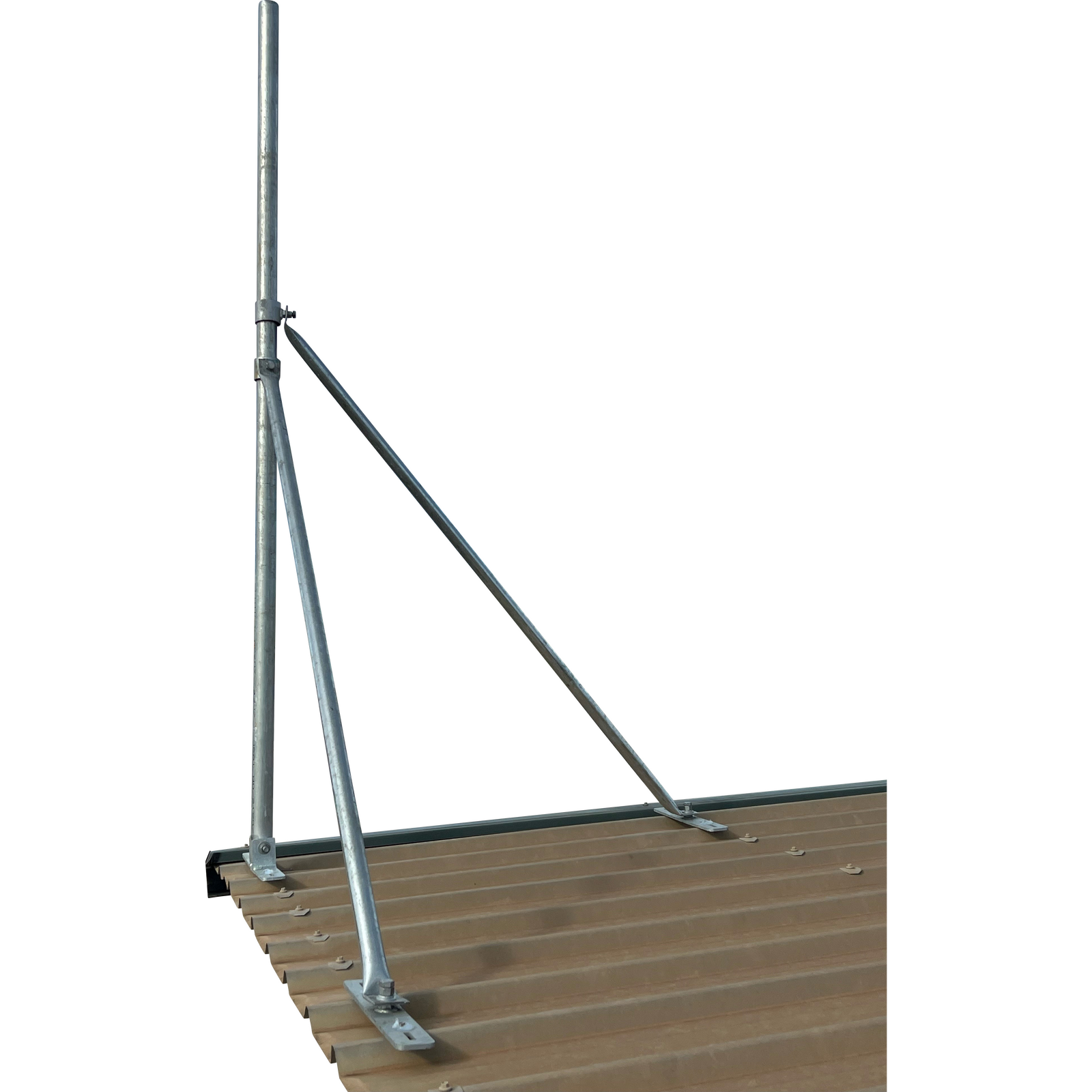

Heavy Duty Galvanised Collared Roof Mast,50mm Various Lengths

Key Features



  • Supports large antenna applications or point to point systems

  • 50mm OD (Outside Diameter) custom length galvanised pole

  • 1200mm stay bars made from 30mm pipe with pressed ends to 45deg each

  •  Two sliding collars, allowing stay bars to be attached to the centre mast

  • 5mm thick base plate with fully welded cleats.

  • The base plate has a hinged design allowing pitch compensation for standard corrugated iron and tin roofs.
  • This mast has three large base plates designed to secure in place using 6 to 12 roof screws

  • 50mm galvanised steel roof poles are available for a low deflection mounting platform that ensures your RF system resists even the most intense of weather conditions.
  • Starlink Compatible with the Starlink Adaptor



Usage



  • Fabricated in our workshop, our steel antenna mounts are specifically designed to meet a demand for large, heavy duty roof mount that can be customised to suit any application.

  • These mounts include a compensating ridge for standard corrugated iron and tin roofs

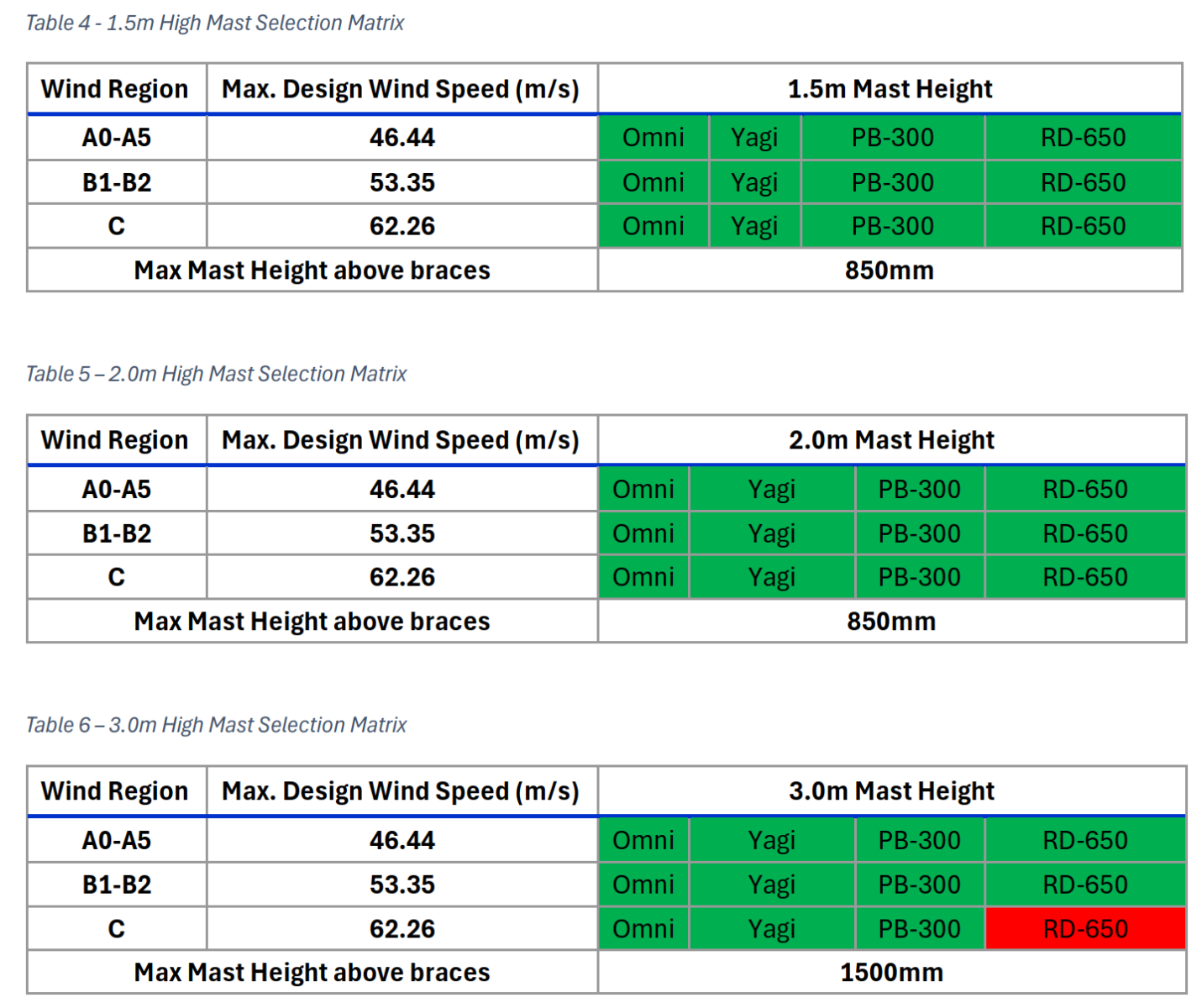

  • This mast is engineer certified for wind survivability in Regions A1 - A5, B, C, and D

  • This mount is simple, strong and easy to install, installation instructions can be found below.

  • Please Note all items over 3m require manual freight calculation



Please contact us for:



  • maximum dish size and heights for your region

  • lead times for masts and towers.



(TF-RM-COLL-GTR)

SKU TF-RM-COLL-GTR
Brand Telco Antennas
Shipping Weight 15.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 1.500m
Shipping Cubic 0.030000000m3
