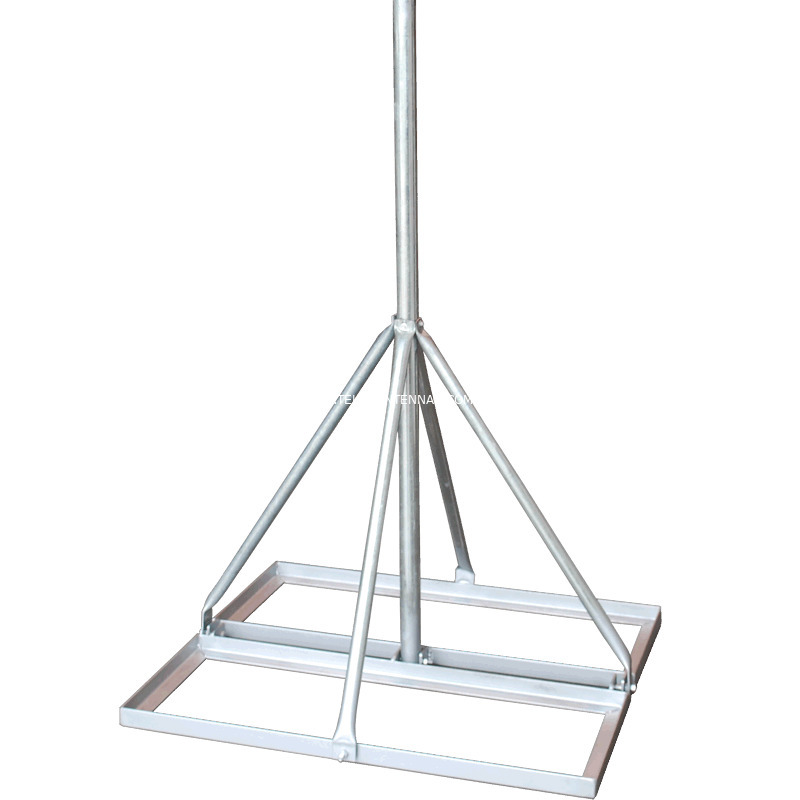

Heavy Duty Galvanised Non-Penetrating Roof Mount 50mm



Key Features



  • Can support most antenna applications or point to point systems

  • 50mm OD (Outside Diameter) galvanised pole

  • Starlink Compatible with Starlink Adaptor

  • 1200mm galvanised stay bars made from 30mm pipe with pressed ends to 45deg each

  • 5mm thick base plate with fully welded cleats

  • High tensile 10mm bolts included

  • Easy installation, ideal for flat roofs such as bunkers and containers

  • Pivoting mid structure allow for apex installations

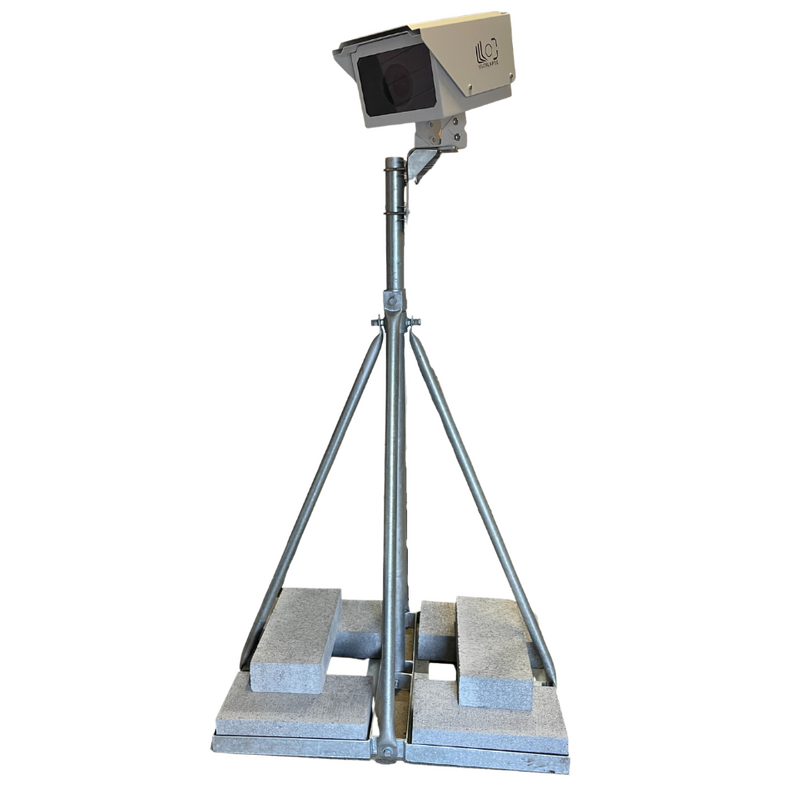

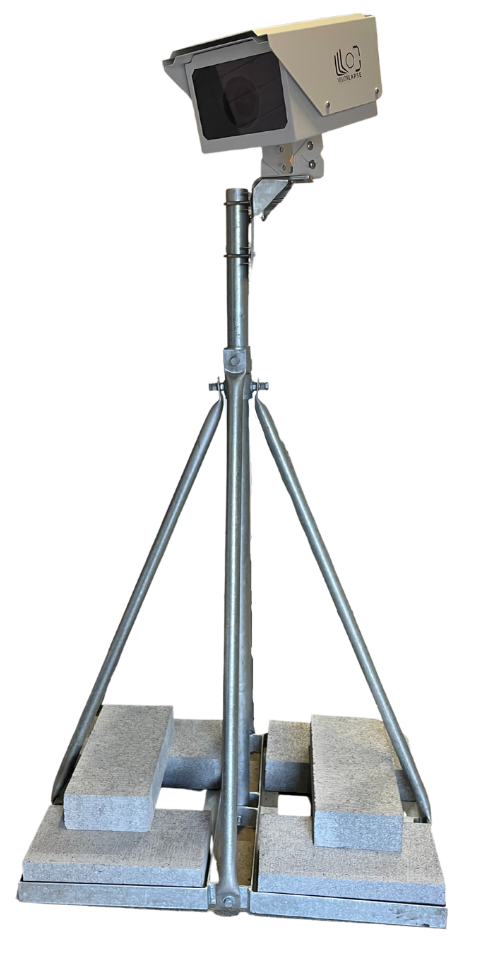

  • Mounts any style of antenna, fully customisable upon request.



Usage



  • Fabricated in our workshop, our galvanised steel antenna mounts are specifically designed to meet a demand for a heavy duty non penetrating roof mount that can be customised to suit many applications

  • The pivoting style roof mount is designed to match the pitch of the roof

  • The kit includes a the 50mm OD custom length mast and four 30mm OD stay bars that will suit most communications antennas

  • Does not include the high density blocks/weights.

  • Please Note all items over 3m require manual freight calculation



Engineer approved recommendation

  • Due to the complicated nature of tower infrastructure, it can prove invaluable to have an engineer approved recommendation for solutions that will accommodate your particular project.

  • We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report that you can use for the planning of communication assets.



Please contact us for lead times for masts and towers.



(TF-RM-NPRM)

SKU TF-RM-NPRM
Shipping Weight 14.0000kg
Shipping Width 0.500m
Shipping Height 2.000m
Shipping Length 0.300m
Shipping Cubic 0.300000000m3
