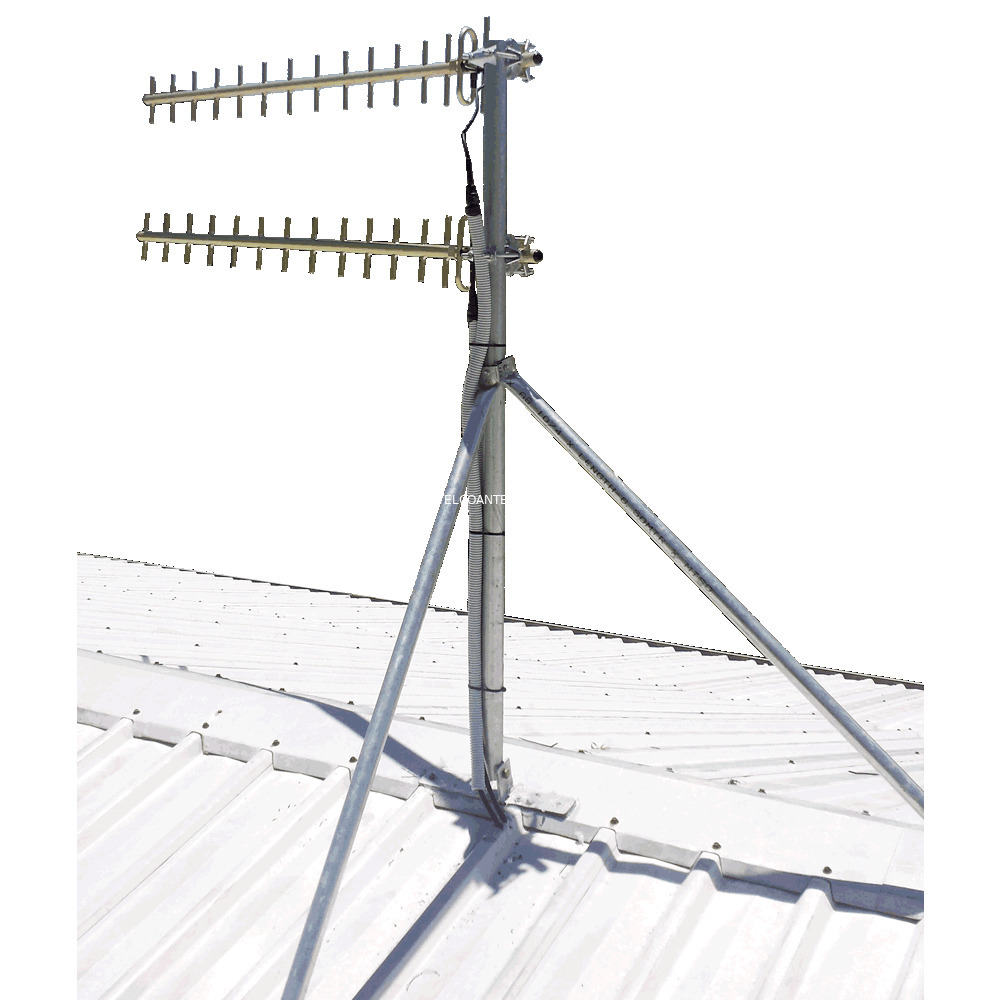

Heavy Duty Stainless Tin Roof Mount, 50mm OD



Key Features



  • Can support large antenna applications or point to point systems

  • 50mm OD (Outside Diameter) custom length stainless pole

  • 1200mm stay bars made from 30mm pipe with pressed ends to 45deg each

  • 5mm thick base plate with fully welded cleats.



Usage



  • Fabricated in our workshop, our steel antenna mounts are specifically designed to meet a demand for large, heavy duty roof mount that can be customised to suit any application

  • These mounts include a compensating ridge for standard corrugated iron and tin roofs

  • This mast is engineer certified for wind survivability in Regions A1 - A5, B, C, and D

  • This mount is simple, strong and easy to install, installation instructions can be found below.



Engineer approved recommendation

  • Due to the complicated nature of tower infrastructure, it can prove invaluable to have an engineer approved recommendation for solutions that will accommodate your particular project.

  • We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report that you can use for the planning of communication assets.






Please contact us for:

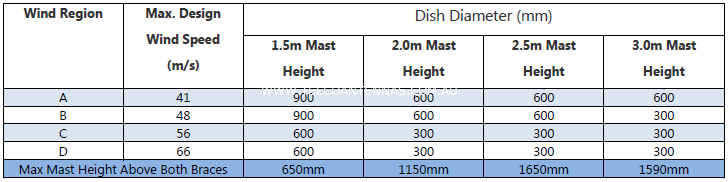

  • maximum dish size and heights for your region

  • lead times for masts and towers.







(TF-RM-STR)

SKU TF-RM-STR
Shipping Weight 14.0000kg
Shipping Width 0.100m
Shipping Height 3.000m
Shipping Length 0.150m
Shipping Cubic 0.045000000m3
