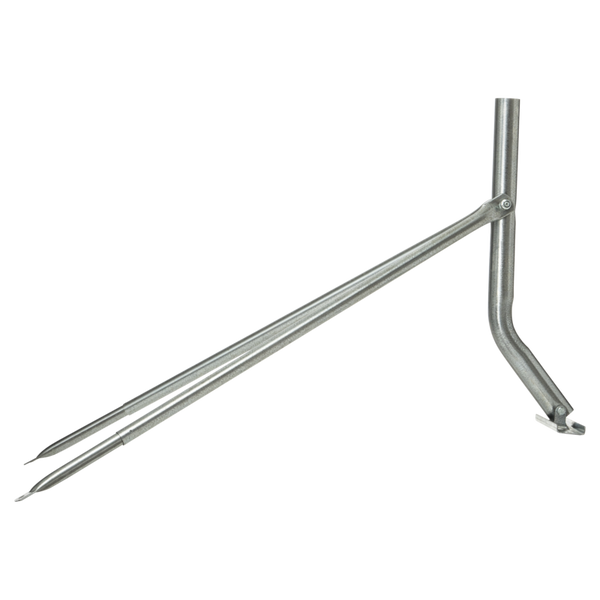

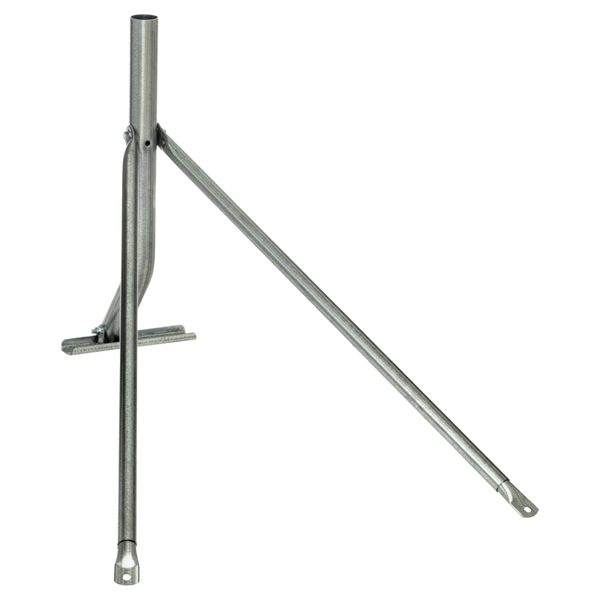

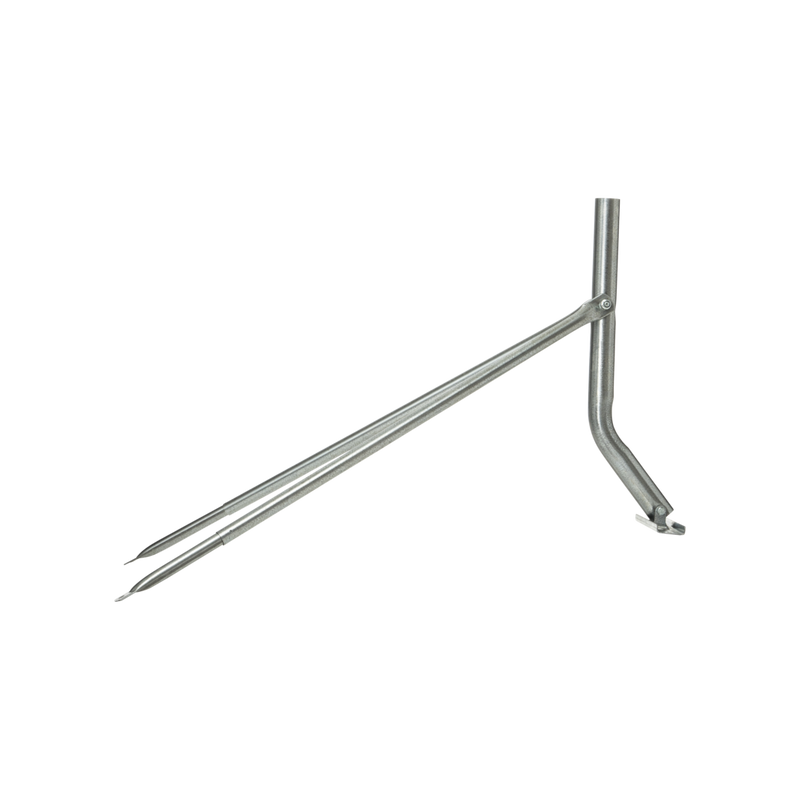

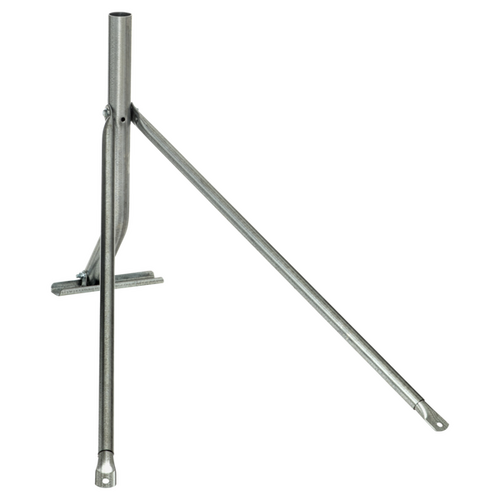

Hills Antenna FB607042A Fleximount Tin Roof



Key Features



  • NBN APL Approved - MA-2018-000019
  • Foxtel Approved IPL # G99



Usage



  • The Hills Antenna FB607042A Flexi Mount Tin Roof Heavy Duty is a Foxtel approved 65cm and 80cm satellite dish mount for tile roof applications with timber framed roof structures. It can also be used in NBN fixed wireless applications with W55 wind-load regions A/B. For C/D regions it is mandatory to fit either a FB607226 or FB607150A to increase the wind loading to W60.

  • It is used for mounting and aiming a satellite dish in domestic and commercial applications.

  • Note: Not suitable for all dish sizes in all wind speed category zones please consult the manufacturers installation instructions before use. Made from all steel materials and supplied with all mounting fasteners required.

  • Wind Classification: C3 (W60) with 65cm dish C2.5 (W55) with 80cm dish Triangular design for minimum penetrations on a tin or tile roof

  • Please note: As per contractual requirements only products on the NBN approved price list can be used on the NBN Fixed Wireless project.



Specifications

  • Colour: Silver
  • Finish: Galvanised Steel
  • Frame Material: Timber Frame
  • Mount Type: Heavy Duty
  • Roof Type: Tin
  • Warranty: 1 Year

(FB607042A)

SKU FB607042A
Shipping Weight 4.5000kg
Shipping Width 0.960m
Shipping Height 0.160m
Shipping Length 0.160m
Shipping Cubic 0.024576000m3
