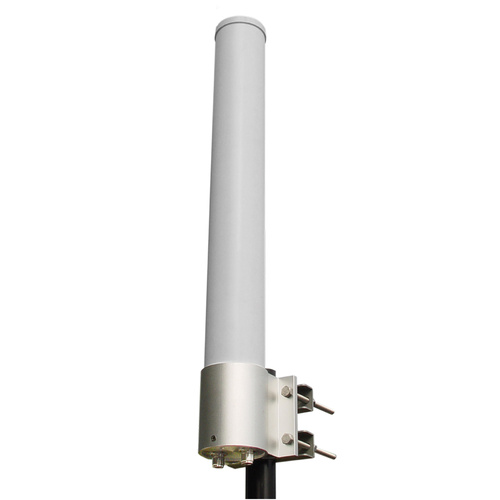

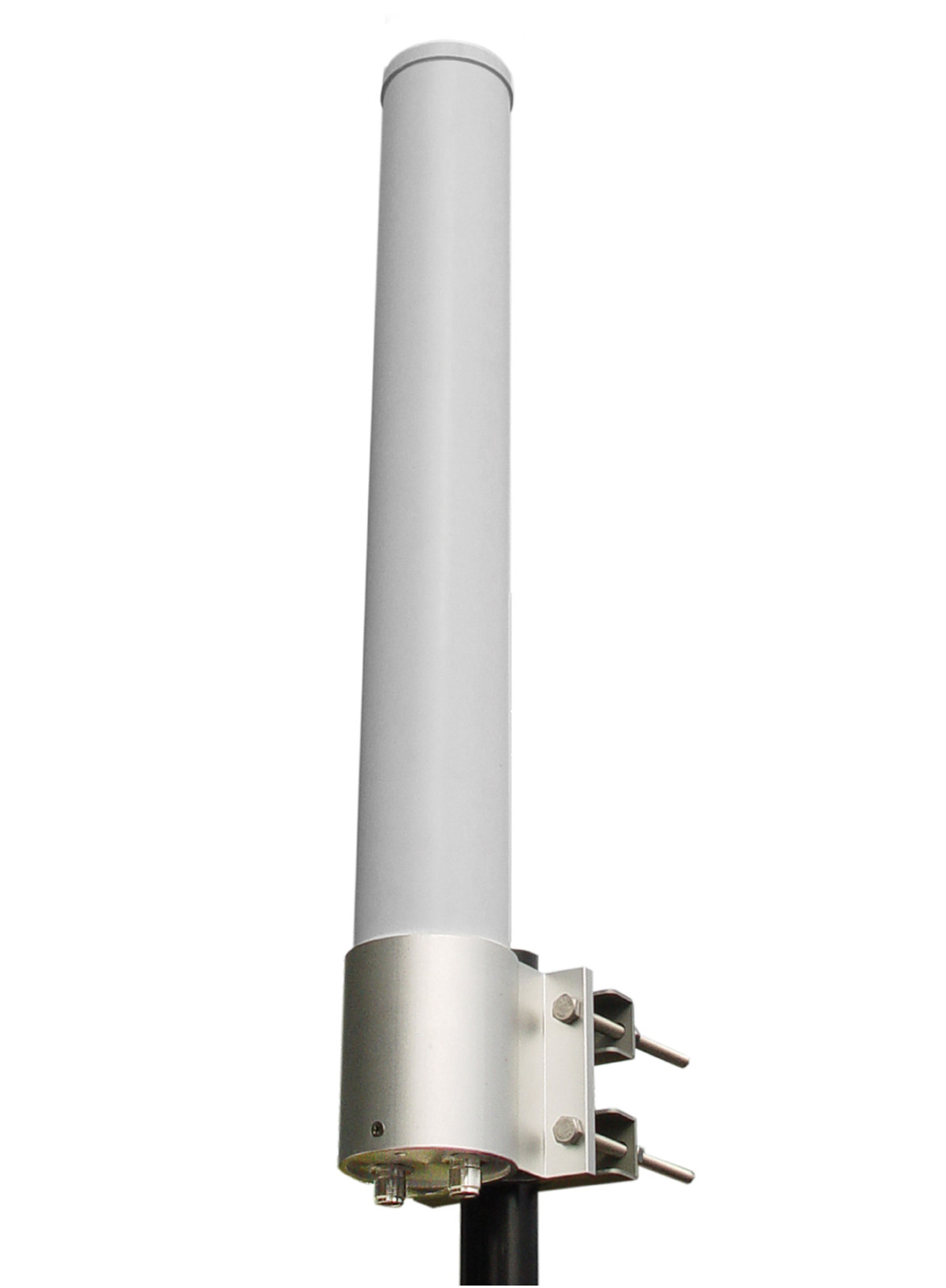

HyperLink 6dBi Dual Band 2.4 & 5.8GHz MIMO Omni Antenna



Key Features



  • Heavy duty industrial grade design

  • 2.4/5 GHz IEEE 802.11a/b/g and 802.11ac applications

  • UV-Resistant radome for all-weather operation
  • Twin heavy duty steel mounting brackets and u-bolts

  • Supports 1x2 and 2x2 MIMO AP/Routers

  • Dual Integrated N-Female connectors.



Usage



  • The HyperLink HG2458-06DPU2 is a professional high gain MIMO dual band omnidirectional base station Wi-Fi antenna designed and optimised for the 2.4 and 5.8GHz frequency

  • The HG2458-06DPU2 is actually two antennas in one, a 2.4/5GHz horizontal polarised antenna and a 2.4/5GHz vertical polarised antenna together in a single radome

  • This antenna is ideally suited for multipoint applications where long range and wide coverage is desired

  • Twin N-Type female connectors are utuilised for the Antennas RF Connectors

  • Rugged and weatherproof

  • The HG2458-06DPU2 construction features a heavy-duty fiberglass radome for durability and aesthetics

  • Designed to operate in the harshest of environments, the HG2458-06DPU2 far exceeds other omnidirectional antennas

  • The included mounting system features twin heavy-duty mounting brackets and u-bolts for superior strength.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n/ac WiFi (2400MHz)
compatible
6dBi
ISM & Bluetooth (2400MHz)
compatible
6dBi
802.11 a/n/ac WiFi (5800MHz)
compatible
6dBi



Electrical Specifications



  • Frequency Range: 2400-2500MHz / 5100-5850MHz

  • Input Impedance: 50Ω

  • Input Power: 100W

  • VSWR: <1.6:1

  • Vertical Beamwidth: 30° / 25°

  • Polarisation: Vertical (Con1) / Horizontal (Con2)



  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: UV Resistant PVC radome, stainless steel mount tube

  • Cable: None supplied

  • Connector: Dual Integrated N Female

  • Weight: 2.4kg

  • Height: 718mm

  • Diameter: 75mm

  • Operating Temperature: -40° to +60°C

  • Mounting: 2x Parallel Clamp suit 30-60mm OD





(HG2458-06DPU2)

SKU HG2458-06DPU2
Brand HyperLink
Shipping Weight 3.0000kg
Shipping Width 0.800m
Shipping Height 0.130m
Shipping Length 0.230m
Shipping Cubic 0.023920000m3
