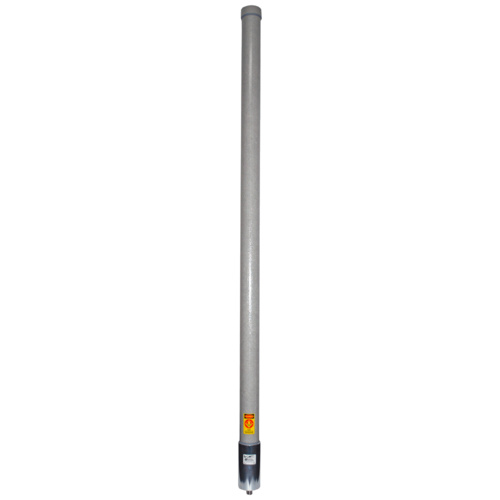

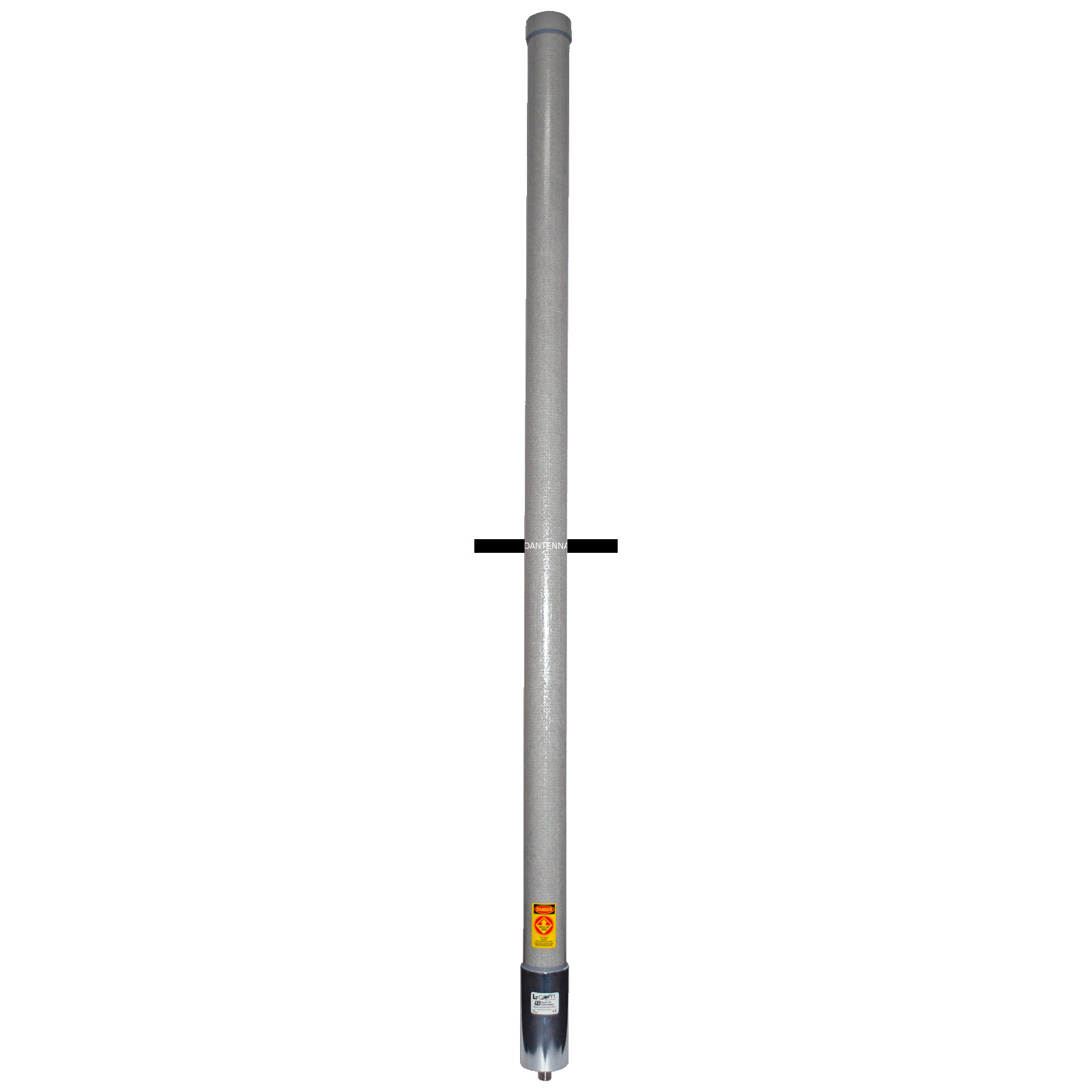

HyperLink 9dBi Dual Band 2.4 & 5.8GHz Omni Antenna



Key Features



  • Heavy duty industrial grade design

  • 2.4/5.8 GHz IEEE 802.11a/b/g and 802.11ac applications

  • Fiberglass radome

  • Twin heavy duty steel mounting brackets and u-bolts

  • Integrated N-Female connector.



Usage



  • The HyperLink HG2458-09U-PRO is a professional high gain dual band omnidirectional base station Wi-Fi antenna designed and optimised for the 2.4 and 5.8GHz frequency

  • This antenna is ideally suited for multipoint applications where long range and wide coverage is desired

  • This antenna is single-pol, with one N-Type female connector, best suited for access points using only one spatial stream

  • Rugged and weatherproof

  • The HG2458-09U-PRO construction features a heavy-duty fiberglass radome for durability and aesthetics

  • Designed to operate in the harshest of environments, the HG2458-09U-PRO far exceeds other omnidirectional antennas

  • The included mounting system features twin heavy-duty mounting brackets and u-bolts for superior strength.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n/ac WiFi (2400MHz)
compatible
9dBi
ISM & Bluetooth (2400MHz)
compatible
9dBi
802.11 a/n/ac WiFi (5800MHz)
compatible
9dBi



Electrical Specifications



  • Frequency Range: 2400-2500MHz / 5725-5850MHz

  • Input Impedance: 50Ω

  • Input Power: 100W

  • VSWR: <1.6:1

  • Vertical Beamwidth: 11° / 9°

  • Polarisation: Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: White fibreglass radome, stainless steel mount tube

  • Cable: None supplied

  • Connector: Integrated N Female

  • Weight: 1.9kg

  • Height: 1290mm

  • Operating Temperature: -40° to +85°C

  • Mounting: 2x Parallel Clamp suit 30-60mm OD



(HG2458-09U-PRO)

SKU HG2458-09U-PRO
Shipping Weight 5.2000kg
Shipping Width 1.500m
Shipping Height 0.150m
Shipping Length 0.100m
Shipping Cubic 0.000075000m3
