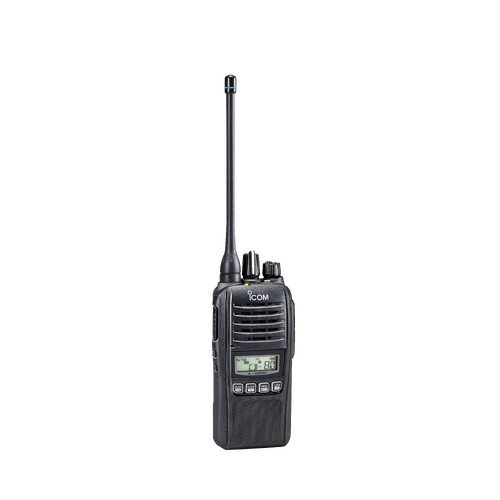

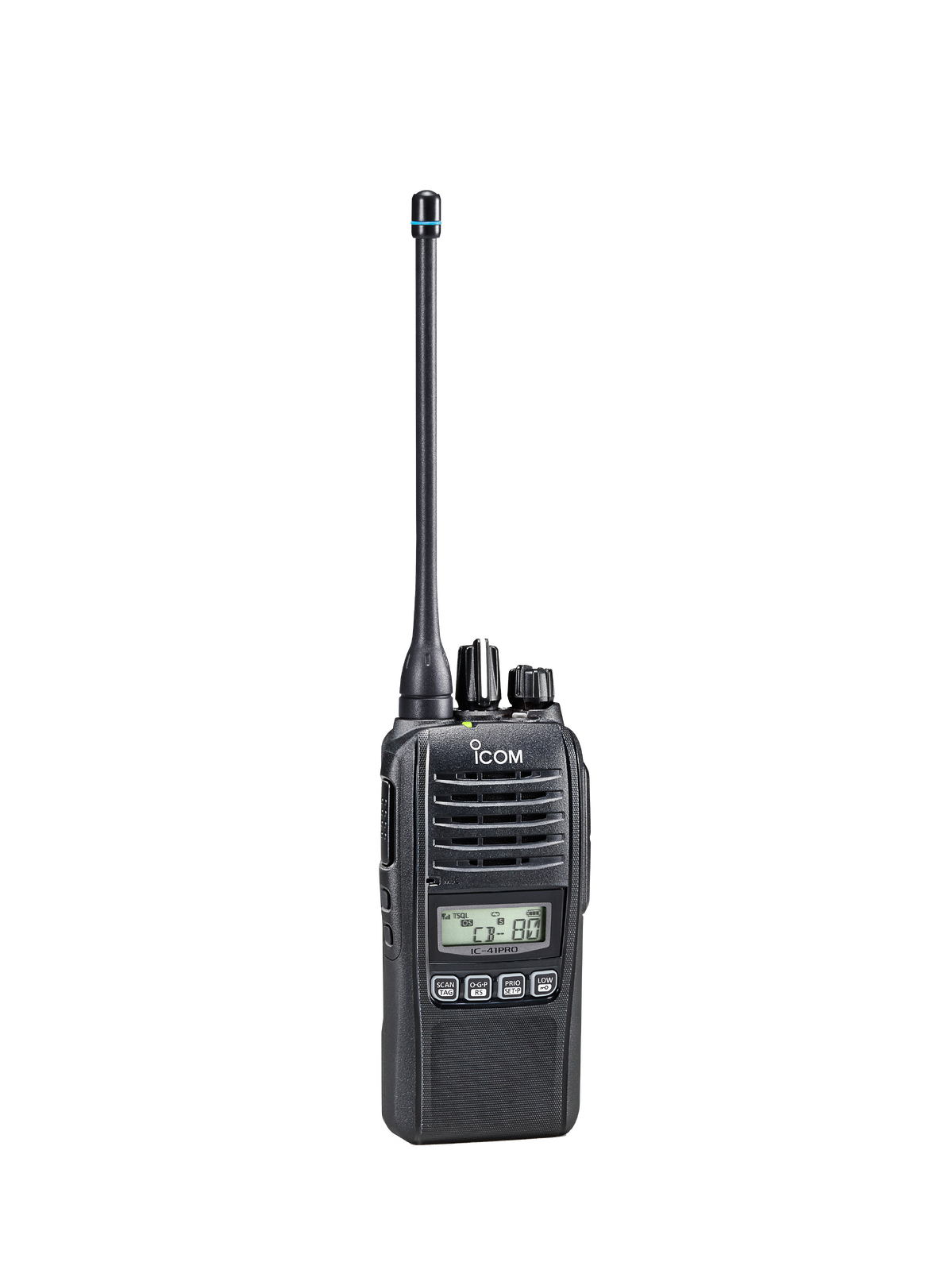

Icom IC-41-Pro Handheld UHF 80 ch CB 477 MHz

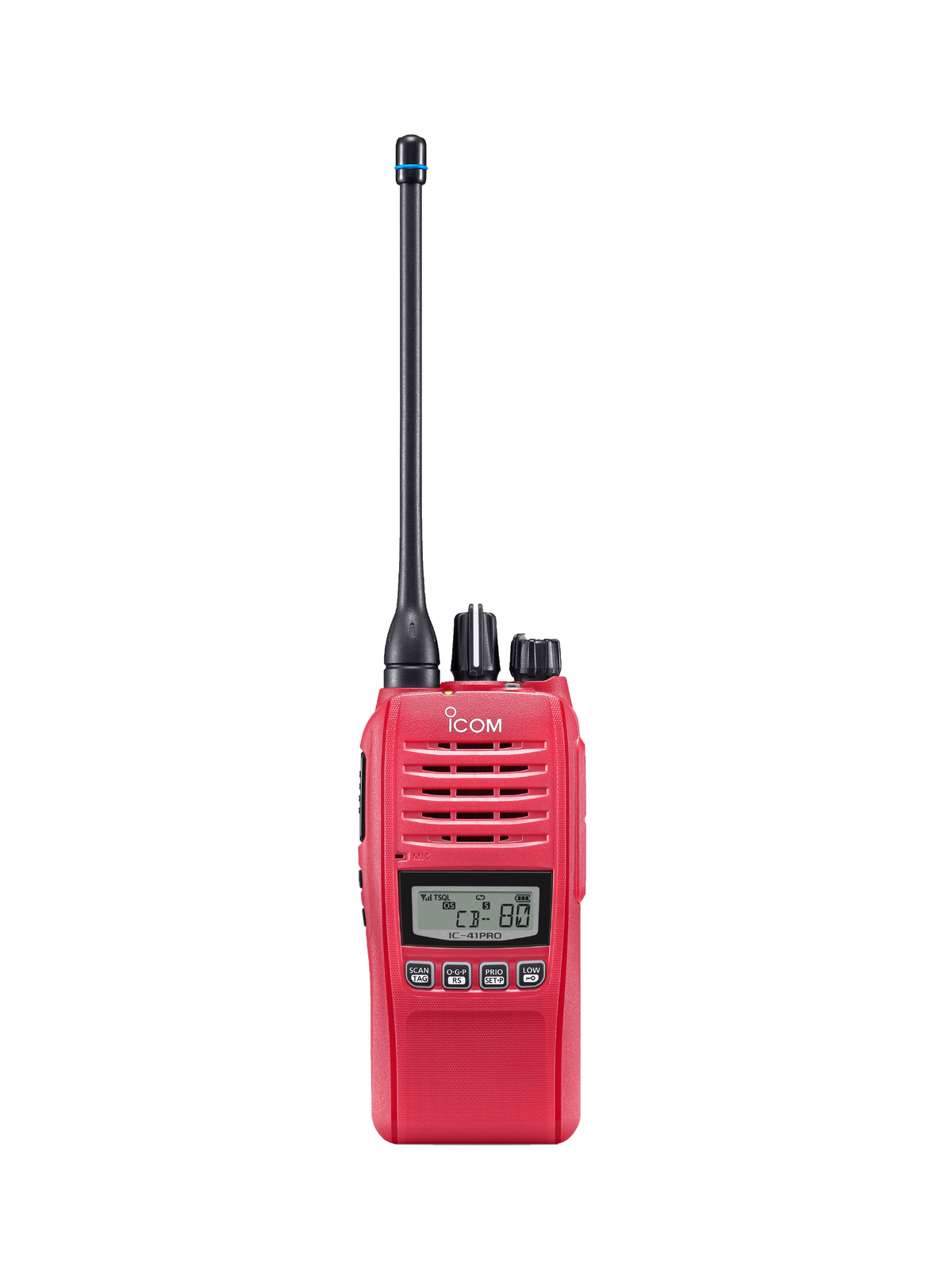

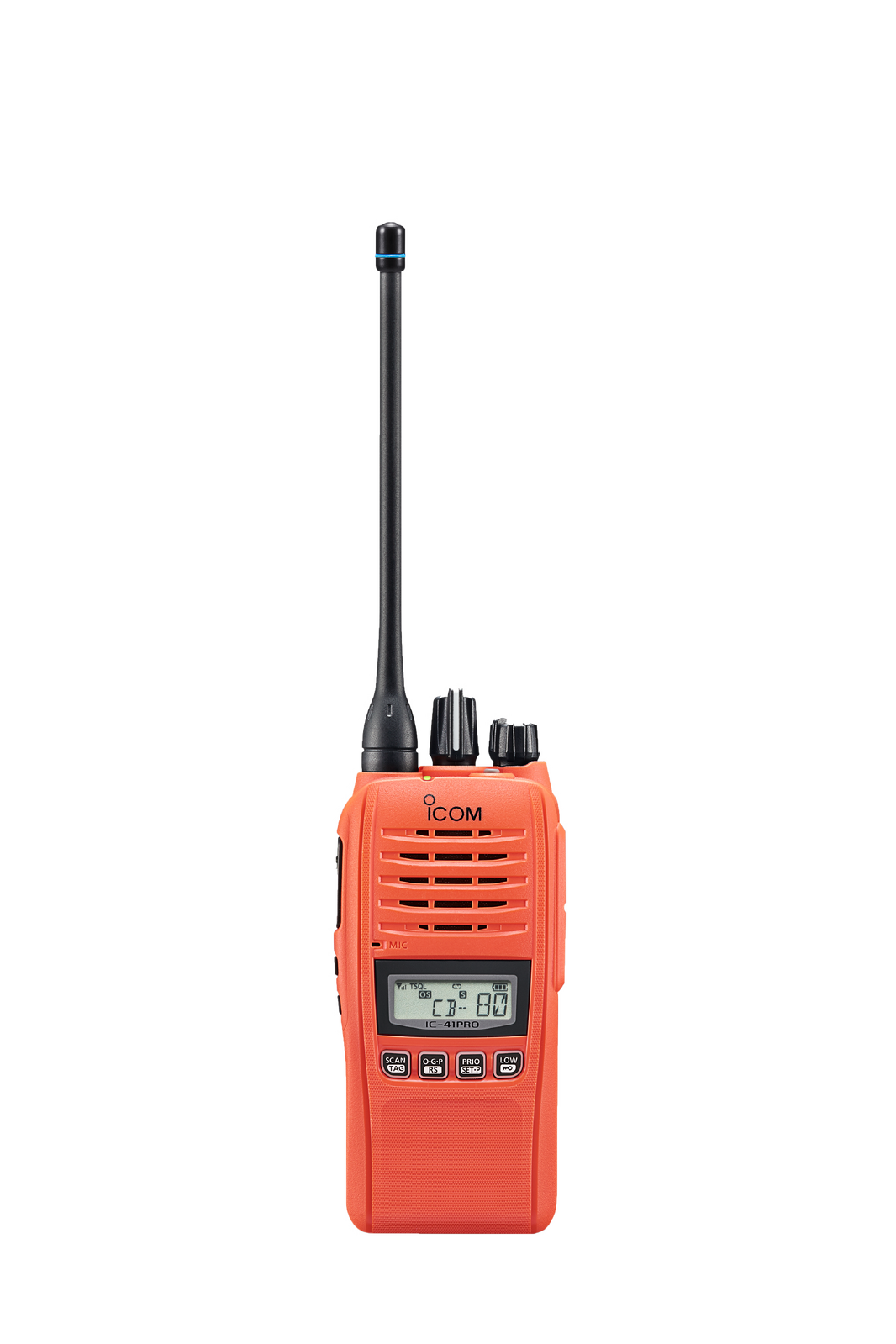

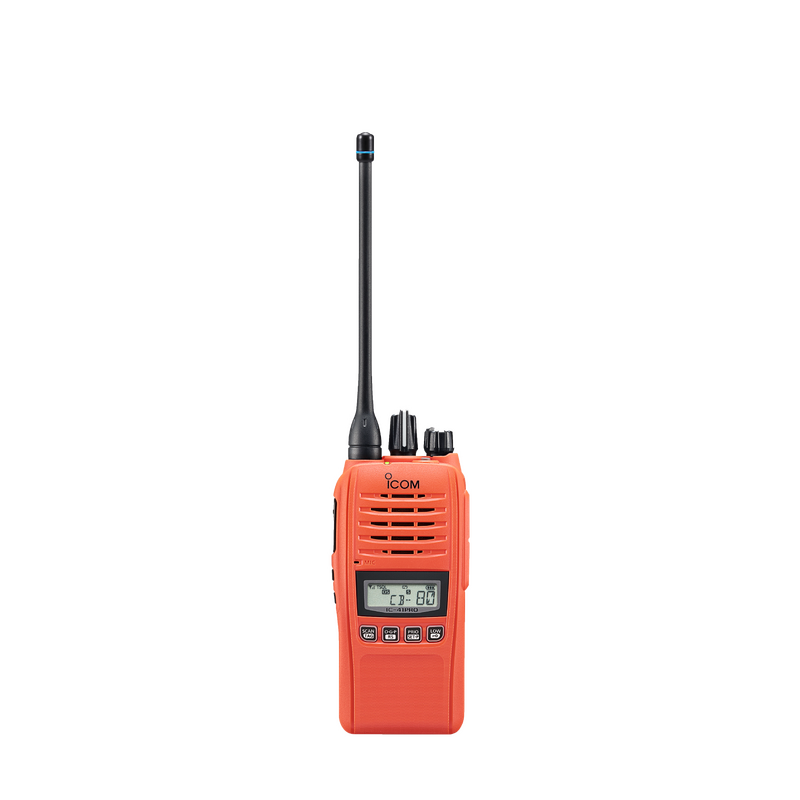

Also available in Orange and Red (Subject to availability)

(IC-41-PRO-B)

Enhanced Audio Output Power

The 1500mW volume audio from Icom custom speaker facilitates loud and clear communication.

Optional 1500 mW Speaker-Microphone, HM-222HLWP*

The combination of the optional HM-222HLWP and the IC-41PRO* also provides 1500 mW (typ.) loud audio from the attached speaker-microphone.
* For the transceiver with a "U" mark on the serial number label.


5W RF Output Power

5 Watts (High) and 1 Watt (Low) Selectable RF Output Power

Waterproof and Dustproof Construction Equivalent to IP67

The IC-41PRO is completely protected against dust ingress and is also waterproof (one meter depth for 30 minutes). All radios are pressure tested to 12 categories of MIL-STD-810-G environmental test.

80+ Channels

80 Channel UHF CB plus up to 35 Receive only Channels

Long Battery Life

A Lithium-ion battery pack (BP-280) included provides 18 hours* of operating time

*Typical operation Tx:Rx:Stand-by = 5:5:90. Power save function ON

Easy Channel Rotation

Allows users to easily change channels

Compact Size

Light and slim design makes it easy to carry around

Other Features

  • 18 hr (typical) operating time with BP-280
  • Voice announcement of channel number
  • VOX capacity with optional headset
  • Up to 35 channels of Receive only channel*
  • Unique repeater scan plus open, group and priority scan
  • In-range Indicator (ATS)
  • Built-in CTCSS/DCS for providing silent stand-by
  • Selective Calling (SELLCALL) functions
  • Duplex operation, providing repeater access
  • Commercial base construction, Compact and Rugged
  • Private Channels from 450 - 520MHz available for commercial users*

General

  IC-41PRO
Frequency coverage

476.4250 MHz to 477.4125 MHz AUS CB

450 MHz to 520 MHz Private/Receive Only

Number of channels

128 channels

Type of emission

W: 16K0F3E (25.0 kHz) AUS CB

N: 8K50F3E (12.5 kHz) AUS CB

Power supply requirement

7.5 V DC

Current drain
(approx.)
Tx High (5W)

1.7 A

Rx Max. audio

500 mA (Internal SP)

Antenna impedance

50 Ω

Operating temperature range

–30°C to +60°C

Dimensions
(W × H × D; Projections not included)

52.2 × 111.8 × 30.3 mm (With BP-280)

Weight (approx.)

270 g (With BP-280)

Transmitter

  IC-41PRO
Output power

5 W

Maximum permissible deviation

± 2.5 kHz (12.5 kHz)

±5.0 kHz (25.0 kHz)

Frequency error ±2.5 ppm
Spurious emissions 70 dB min.
Adjacent channel power

60 dB min.; 69 dB typ. (12.5 kHz)

70 dB min.; 74 dB typ. (25 kHz)

Audio harmonic distortion

1.0% typ. (12.5 kHz)

1.5% typ. (25 kHz)
(at AF 1 kHz 40% deviation)

FM Hum and Noise
(without CCITT filter)

34 dB  min.; 40 dB typ. (12.5 kHz)

40 dB min.; 46 dB typ. (25 kHz)

Receiver

  IC-41PRO
Sensitivity (at 12dB SINAD)

0.25 μV typ.

Adjacent channel selectivity

40 dB min.; 56 dB typ. (12.5 kHz),
70 dB min.; 73 dB typ. (25 kHz)

Spurious response rejection

70 dB min.

Intermodulation rejection

70 dB min.; 73 dB typ.

Hum and noise

(without CCITT filter)

34 dB min.; 43 dB typ. (12.5 kHz)

40 dB min.; 49 dB typ. (25 kHz)



Squelch sensitivity

0.25 μV typ.

AF output power
(at 5% distortion 8Ω load )
Internal SP

1500 mW typical

External SP

450 mW typical (single end)
1500 mW typical (BTL, HM-222HLWP connected*)

* For the transceiver with "U" make on the serial number label.

Applicable U.S. Military Specifications and IP rating

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard MIL-810 G
Method, Proc.
Low Pressure Storage

500.5 I

Low Pressure Operation

500.5 II

High Temperature Storage

501.5 I

High Temperature Operation

501.5 II

Low Temperature Storage

502.5 I

Low Temperature Operation

502.5 II

Temperature Shock

503.5 I-C

Solar Radiation

505.5 I

Rain Blowing

506.5 I

Rain Drip

506.5 III

Humidity Induced

507.5 II

Salt Fog

509.5

Dust Blowing

510.5 I

Immersion

512.5 I

Vibration

514.6 I

Shock Functional

516.6 I

Shock Transit Drop

516.6 IV

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.

Ingress Protection Standard
Dust & Water

IP67 (Dust-tight and waterproof protection)



All stated specifications are subject to change without notice or obligation.

Supplied accessories

  • Battery pack, BP-280
  • Desktop charger, BC-213
  • AC adapter, BC-123SV
  • Belt clip, MB-133
  • Antenna, FA-SC72U
