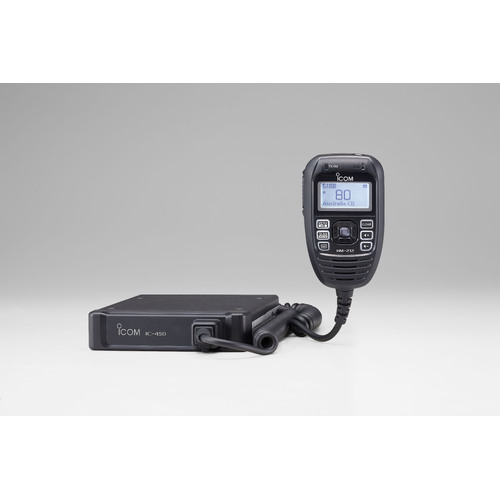

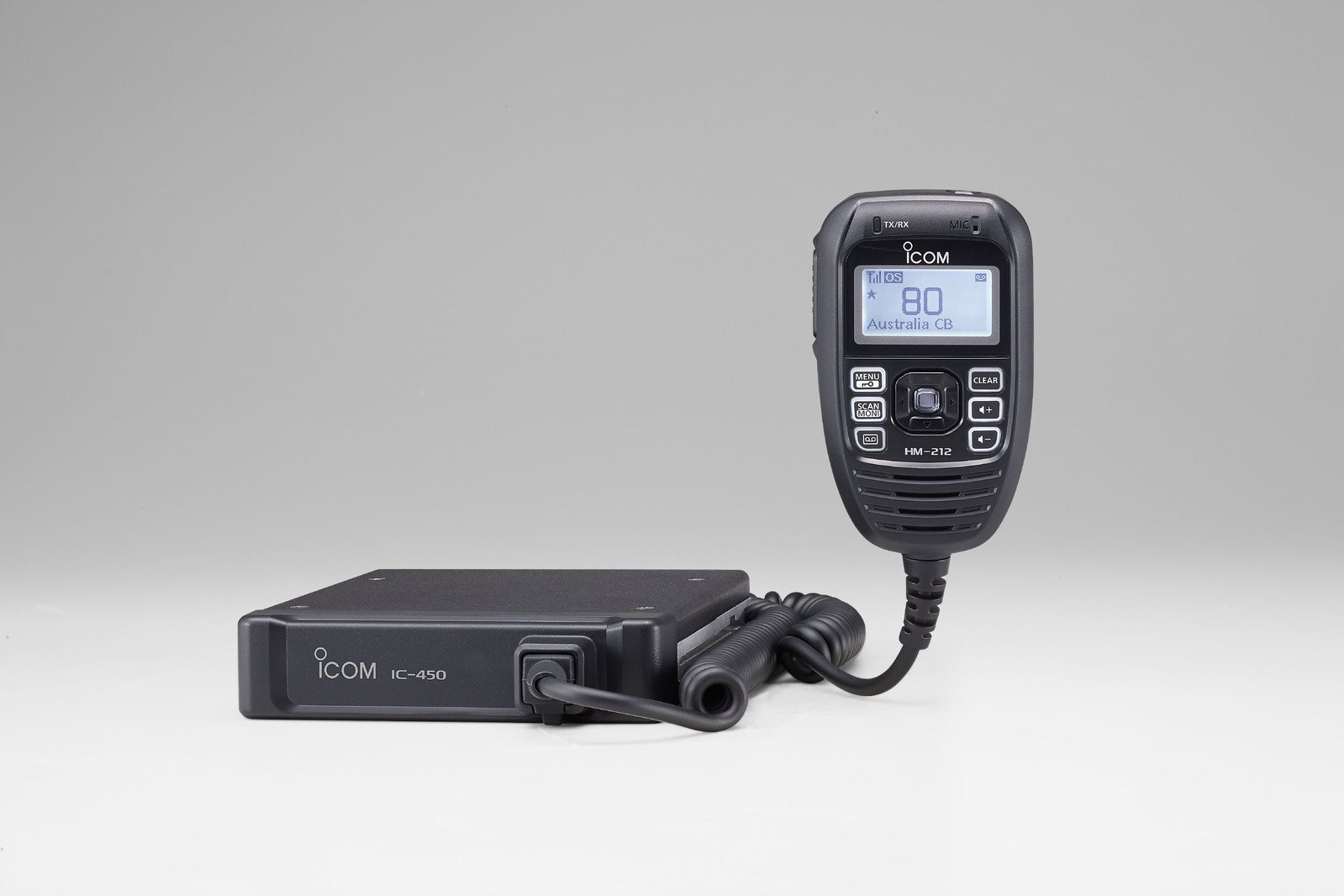

Icom IC-455 UHF 477 MHz CB Transceiver 12V-24V DC Autosensing

(IC-455)

5 Watt RF Output Power

5 Watts (High) and 1 Watt (Low) selectable output power.

Seven-Colour Backlight LCD

The colour of the LCD Screen can be changed to reflect the operating status. Different colours can be assigned to channels, and colours can be set to indicate when scanning or transmitting.

Noise Reduction, Audio Equalizer & Voice Changer

The Noise Reduction reduces background noise from both transmit and receive audio.

Voice Recorder & Instant Play Back

Can record up to 10 messages of 30 seconds each, for a total of 5 minutes.

Supports Both 12 V/24 V DC Power Sources

Accepts a 12/24 V DC power source and it is suitable for most types of cars and trucks.

Dynamic Group Scan for Keeping Group Communication

Using a CTCSS or DTCS tone, this function finds an open channel for group communicaton.

Loud Speaker-Microphone with Auto Volume Control

The microphone monitors ambient noise levels and automatically adjusts the audio level.

IP54 Water Resistance & Dust Protection

General

			IC-455
Frequency coverage		CB	476.425–477.4125 MHz
Frequency coverage		RX	400.000–520.000 MHz (RX only)
Mode			8K50F3E
Number of channels			Max 256 channels/8 banks
Antenna impedance			50 Ω
Input impedance (MIC)			600 Ω
Output impedance (Audio)			4 Ω
Intermediate frequency			1st 49.95 MHz, 2nd 450 kHz
Operating temperature range			- 10℃ to +60℃
Power supply voltage			13.8 or 27.6 V DC nominal (Negative ground)
Current drain with HM-244	27.6 V DC	RX stand-by	300 mA (approx.)
		RX Maximum audio	1000 mA (approx.)
		TX (5 W output)	1500 mA (approx.)
	13.8 V DC	RX stand-by	500 mA
		RX Maximum audio	1500 mA
		TX (5 W output)	3000 mA
Dimensions (projections not included)		Main unit	125 (W) × 29 (H) × 160 (D) mm
Dimensions (projections not included)		HM-244	62.1 (W) × 101.5 (H) × 30.5 (D) mm
Weight (approx.)		Main unit	344 g
Weight (approx.)		Main unit with HM-244	535 g

Transmitter

	IC-455
Output power	5W / 1W (selectable)
Modulation system	Variable reactance frequency modulation
Max. frequency deviation	±2.5 kHz
Frequency stability	±2.5 ppm
Spurious emissions	–30 dBm max. (5 W: 67 dBc)
Adjacent channel power	–16 dBm max. (5 W: 53 dBc)
Audio harmonic distortion	1% typical (60% deviation)
Residual modulation	40 dB typical
Limiting characteristic of modulator	70 to 100% of maximum deviation

Receiver

[CB (476.425–477.4125 MHz)]

	IC-455
Sensitivity (12 dB SINAD):	0.22 μV typical
Squelch sensitivity	0.2 μV typical (Threshold)
Hum and noise	48 dB typical
Intermodulation rejection ratio	72 dB typical
Spurious response rejection ratio	80 dB typical
Adjacent channel selectivity	68 dB typical
Conducted spurious radiation	–57 dBm max. (9 kHz–1.0 GHz) –47 dBm max. (1.0 GHz–4.0 GHz)
Audio output power	5.0 W max. at 10% distortion with 4 Ω load
Audio frequency response	+2 dB to −8 dB of 6 dB/octave from 300 Hz to 2550 Hz

[RX (400.000–520.000 MHz)] (Except CB (476.425–477.4125 MHz))

	IC-455
Sensitivity (12 dB SINAD)	0.25 μV typical
Hum and noise:	45 dB typical
Conducted spurious radiation	–57 dBm max. (9 kHz–1.0 GHz) –47 dBm max. (1.0 GHz–4.0 GHz)
Audio frequency response	+2 dB to –8 dB of 6 dB/octave from 300 Hz to 2550 Hz

Measurements made in accordance with AS/NZS 4365-2011 (R2016), AS/NZS 4295:2015.
All stated specifications are subject to change without notice or obligation.
