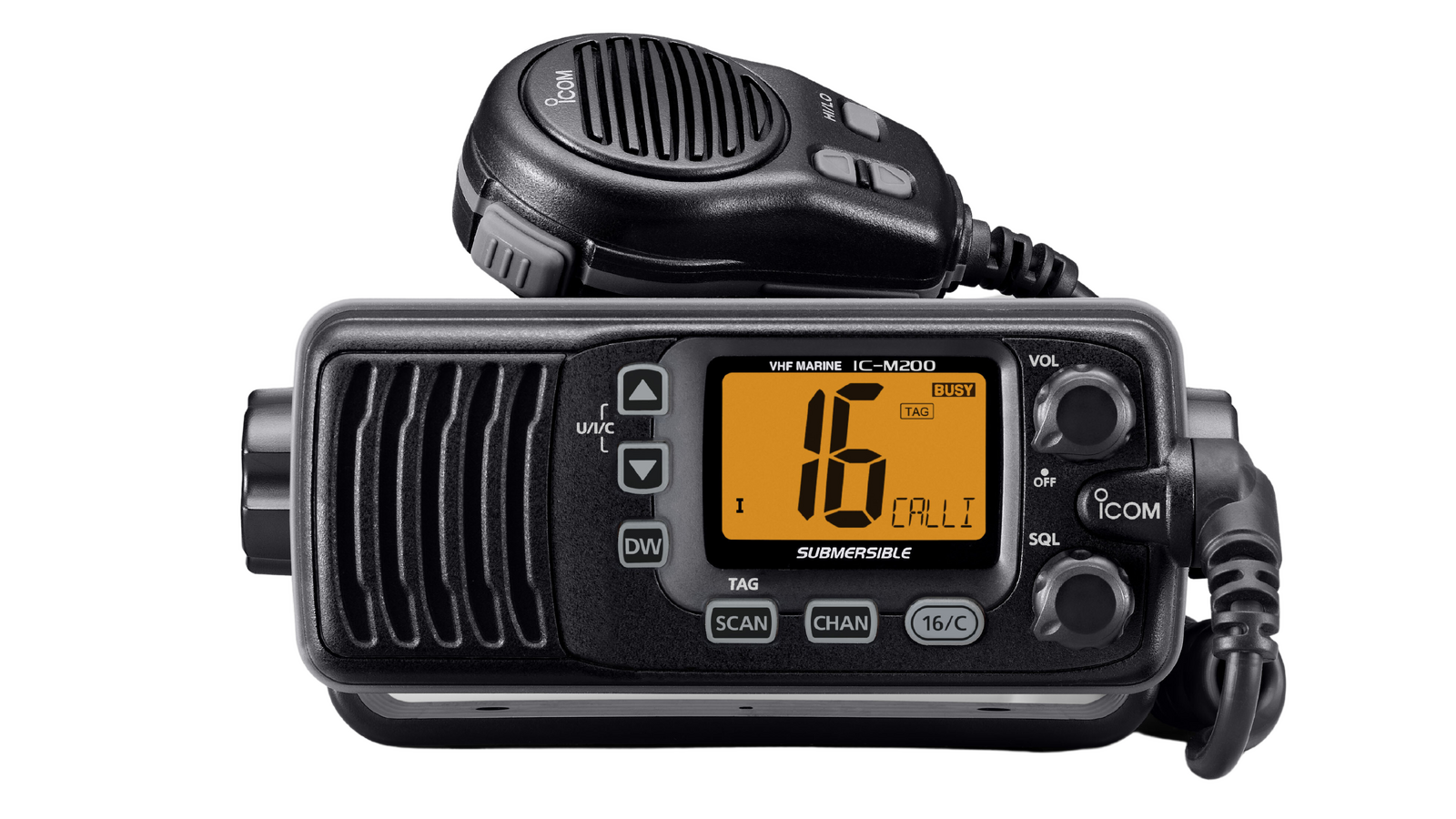

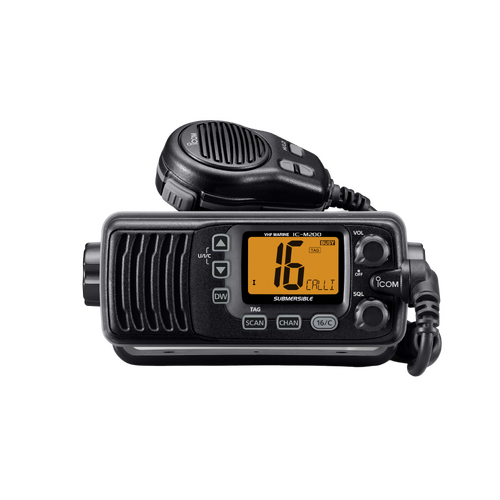

Icom M200-B
VHF Marine Transceiver
SKU: IC-M200-B
“Made in Japan” Quality World’s benchmark for production quality. Compact and IPX7 Submersible Body Withstands 1m depth of water for 30 minutes. Powerful Front Mount Speaker Delivers loud and intelligible audio even in noisy maritime environments. Class Leading Receiver Performance No compromise in operating fundamentals (75 dB typical IMD and selectivity). Large Easy-To-See LCD Large (WxH: 43x27 mm) LCD shows essential infromation clearly with 4-step backlighting. Dualwatch and Tri-watch Function Monitors CH 16 and/or call channel, while using another channel. Favorite Channel Function Offers quick channel selection from the microphone up/down button. AquaQuake™ Draining Function Water free speaker grill for optimal audio at all times. Other Features Accurate and reliable temperature compensated frequency stability Channel operation with the supplied hand microphone, HM-164B Instant-access button for Channel 16 and call channel Priority scan and Normal scan Built-in low voltage indicator Programmable private channels (subject to local regulations)
(IC-M200-B)
General
| Frequency range | Tx | 156.025–162.000 MHz |
|---|---|---|
| Rx | 156.025–162.025 MHz | |
| Usable channel groups | INT, USA, CAN channels | |
| Type of emission | 16K0G3E (FM) | |
| Power supply voltage | 13.8 V DC nominal (11.7 V–15.9 V DC) |
|
| Current drain | Tx (at 25 W output) | 5.5 A (Maximum) |
| Rx (Maximum audio) | 1.5 A (Maximum) | |
| Operating temperature range | –20°C to +60°C; –4°F to +140°F | |
| Antenna impedance | 50 Ω | |
| Dimensions (W×H×D) (Projections not included) |
153×67×133 mm; 6.0×2.6×5.2 inch |
|
| Weight (approximately) |
790 g ; 1.7 lb |
|
Transmitter
| Output power | 25 W (High power) 1 W (Low power) |
|
|---|---|---|
| Modulation | Variable reactance frequency modulation |
|
| Max. frequency deviation | ±5 kHz | |
| Frequency stability | ±5 ppm | |
| Spurious emissions | Less than –70 dBc (High power) Less than –56 dBc (Low power) |
|
| Adjacent channel power | More than 70 dB | |
| Audio harmonic distortion | Less than 10% (at 60% dev.) | |
| Residual modulation | More than 40 dB | |
Receiver
| Intermediate frequency | 1st | 21.7 MHz |
|---|---|---|
| 2nd | 450 kHz | |
| Sensitivity | –14 dBμ typ. (at 12 dB SINAD) | |
| Squelch sensitivity | Less than –10 dBμ | |
| Adjacent channel selectivity | 75 dB typical | |
| Spurious response | 75 dB typical | |
| Intermodulation | 75 dB typical | |
| Hum and noise | More than 40 dB | |
| Audio output power | 4.5 W typical (at 10% distortion with a 4 Ω load) |
|
Measurements made in accordance with TIA/EIA 603. All stated specifications are subject to change without notice or obligation.
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| Water | IPX7 (Waterproof protection) |
Supplied Accessories
- Hand microphone, HM-164B
- DC power cable
- Mounting bracket kit
