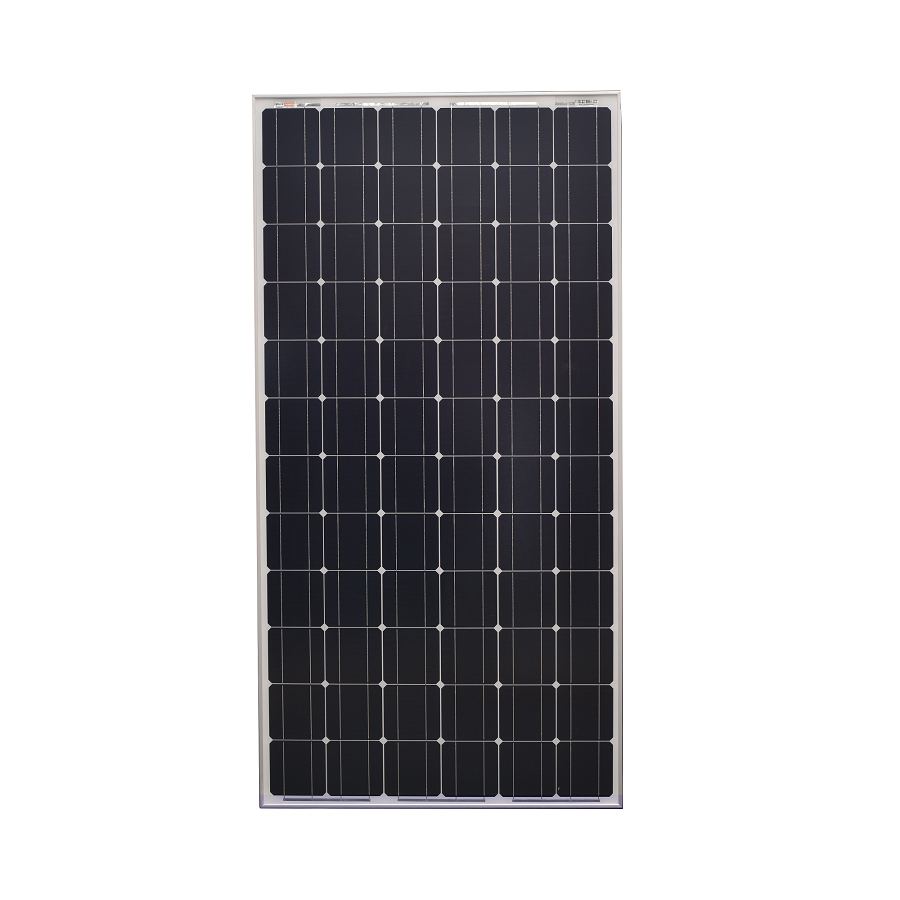

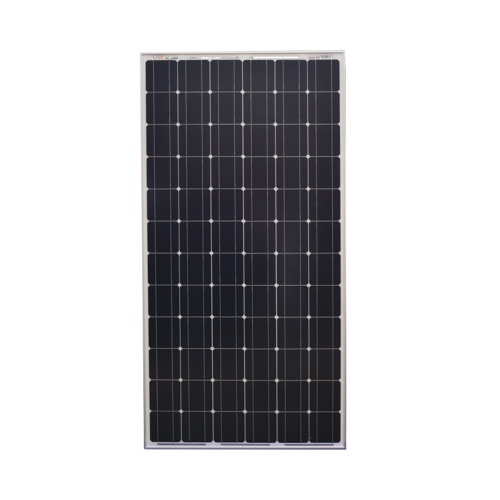

InstaPower 200W 18V Mono Solar Panel 1480x670x35mm



Key Features

  • Please note that it is not recommended to connect this unregulated panel to battery permanently

  • Dimension: 1580*808*35mm

  • Hail resistant tempered glass capable of deflecting one-inch hailstones

  • Anodized aluminum frame complies with Marine Test

  • Advanced 18.7% efficiency Monocrystalline Cell for outstanding performance



Usage

  • High efficiency solar cell delivers maximum power in a small footprint

  • Thoroughly tested, a high-quality standard that you can rely on

  • Guaranteed to provide the rated wattage under standard testing conditions

  • Ideal for small to medium size off-grid solar energy systems



Specifications

Maximum Power (w)  200
Optimum Power Voltage (Vmp) 18.5
Optimum Operating Current (Imp) 10.82
Open Circuit Voltage (Voc) 22.71
Short Circuit Current (Isc) 11.9
Size of Module (mm) 1480x670x35
Front Glass Thickness (mm) 3.2
Tempreature Range (°C) -45 to +85
Tolerance Wattage (%) 0/ +3%
Surface Maximum Load Capacity (Pa) 2400
Allowable Hail Load 23m/s, 7.53g
Frame Anodized Aluminium Alloy
Weight Per Piece (kg) 15.5
Standard Test Conditions AM1.5, 1000W/m^2, 25°C (+/-2°C)
FF (%) ≥ 73.3

Specification Sheet

(IP200M-18-1480-670mm)

SKU IP200M-18-1480-670mm
Brand Arizon
Shipping Weight 11.7000kg
Shipping Width 0.700m
Shipping Height 0.200m
Shipping Length 1.490m
Shipping Cubic 0.208600000m3
