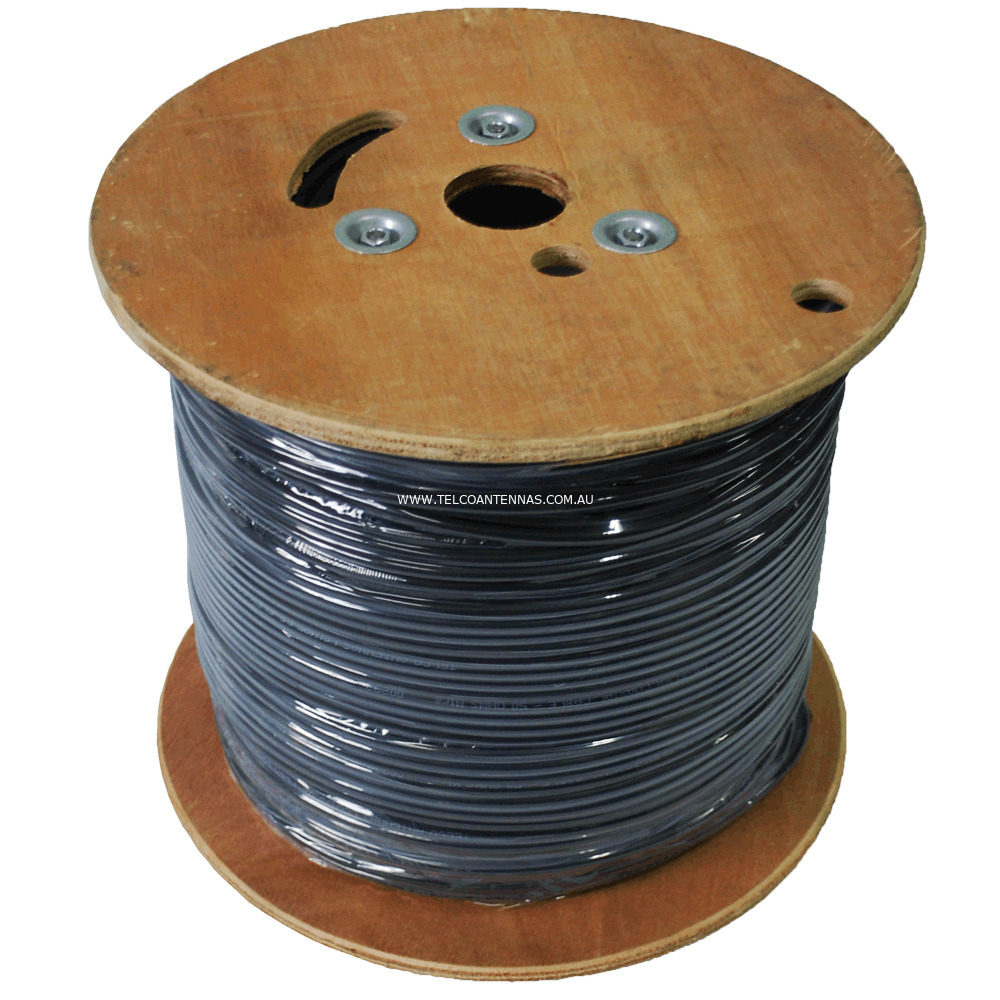

300 Metre Reel LCU195 Low Loss Coaxial Cable Spool



Key Features



  • LCU400 50Ω series cabling

  • dB-FLEX Stranded Copper Conductor

  • UV Stable rubberised TPFE Jacket.



Usage



  • dB-FLEX is our flagship subtype of LCU195 cabling, designed for maximum weather resistance and usability

  • LCU195 dB-FLEX has a 7-strand bare copper centre conductor, which permits repeated bending with much greater flexibility, allowing an incredibly tight bend radius - similar to Times Microwave's LMR-195 UltraFlex

  • Both dB-FLEX and UltraFlex cables achieve this by trading off for a marginally higher per-metre loss, up from 0.36dB/m to 0.42dB/m @ 850MHz

  • dB-FLEX has a UV-stable TPE (Thermoplastic Elastomer) jacket designed for harsh outdoor environments while maintaining maximum flexibility and minimising plastic memory (for improved wall-cavity feeding).



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 83.3pF/m

  • Frequency Range: DC-6GHz

  • Velocity of Propagation: 76%

  • Nominal Delay: 4.17ns/m

  • Voltage Withstand: 1000Volts DC

  • Peak Power: 2.5kW

  • Signal Loss (typical, terminated cable):

    • 0.42dB/m @ 850MHz

    • 0.63dB/m @ 1800MHz



Mechanical/Environmental Specifications



  • Weight/100m: 3.0kg

  • Operating Temperature: -40° ~ +85°C

  • Minimum Bend Radius: 12.7mm

  • Insulating Material: Foam PE (2.79mm)

  • Outer Jacket Material: TPE Weather & UV Resistant (4.95mm ±0.15mm)

  • Conductor Material: Seven Strand Solid Copper (0.94mm)

  • Outer Shield Material:

    • Bonded Aluminium Polyester Tape 100% Coverage (2.95mm)

    • Tinned Copper Wire 88% Coverage (3.53mm)



A heads up!



  • Emergency stock fulfilment may use standard LMR-195 cable, if you specifically require dB-FLEX cable please advise when placing order



Read More





(300M-DBFLEX-195)

SKU 300M-DBFLEX-195
Shipping Weight 10.0000kg
Shipping Width 0.260m
Shipping Height 0.240m
Shipping Length 0.260m
Shipping Cubic 0.016224000m3
