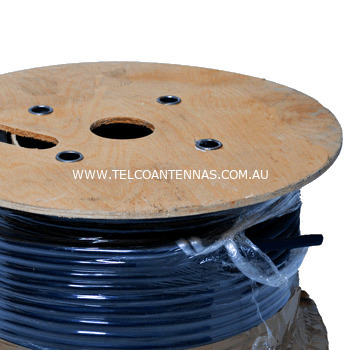

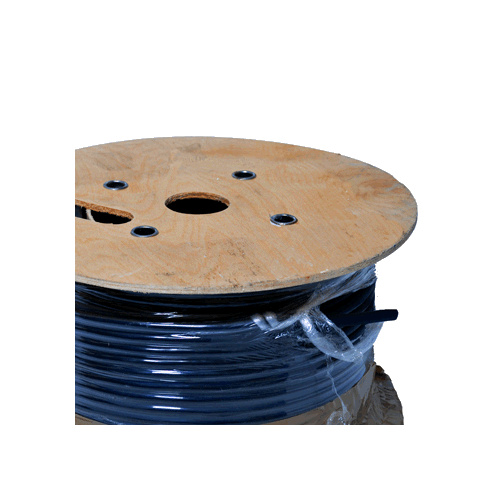

100 Metre Reel Times Microwave LMR195-DB Low Loss 50Ω Cable



Key Features



  • Genuine Times Microwave LMR-195-DB

  • Direct burial rated.



Usage



  • LMR195-DB is a direct burial watertight cable suitable for a wide range of extreme environment applications such as underwater, salt water, oil and gas, and military applications

  • The addition of waterproofing compound in and around the foil/braid insures continuous reliable service should the jacket be inadvertently damaged during installation or in the future.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 83.3pF/m

  • Loss: 0.36dB/m @ 850MHz, 0.53dB/m @ 1800MHz

  • Frequency Range: DC-6GHz

  • Velocity of Propagation: 80%

  • Nominal Delay: 4.17ns/m

  • Voltage Withstand: 1000Volts DC

  • Peak Power: 2.5kW



Mechanical Specifications



  • Weight/100m: 3.0kg

  • Operating Temperature: -40° ~ +85°C

  • Minimum Bend Radius: 12.7mm

  • Conductor Material: Single Strand Solid Copper (0.94mm)

  • Insulating Material: Foam PE (2.79mm)

  • Outer Shield Material:

    • (1) Bonded Aluminium Polyester Tape 100% Coverage (2.95mm)

    • (2) Tinned Copper Wire 88% Coverage (3.53mm)

  • Outer Jacket Material: PVC Weather & UV Resistant (4.95mm ±0.15mm)



times microwave logo png

(LMR195-DB-100M)

SKU LMR195-DB-100M
Brand Times Microwave
Shipping Width 0.310m
Shipping Height 0.270m
Shipping Length 0.310m
Shipping Cubic 0.025947000m3
